Third Brake Light

I was looking into doing the mod of switching my all red third brake light to one with cargo lights.... wondering if anyone knows if there is any other choice of light to go with besides the rangers or sport tracs. I dont really like the look of them, i see other trucks with cargo lights that have a red outline around the white, wanted to get something like that. Just got to find one that fits.

And real quick, you just unscrew the old light, splice into your dome light to get power to the cargo lights, then bolt the new one on right?
Reply With Quote
  #2
Old 08-31-2008
redrebel66's Avatar
Member
iTrader: (2)

Join Date: Oct 2006
Location: Lebanon, Or
Posts: 91
Actually if you get one with the cargo lights they will plug right in. I have a one if your interested.
Reply With Quote
  #3
Old 08-31-2008
Zs02Edge's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Ocala, Fl & Woodland, WA
Posts: 253
I have a CHMSL from a 2007 F250. It's similar to the CHMSL w/ cargo lamps from the 93-08 Ranger, 01-05 Sporttrac, 99-06 F250 but the red center is lighter. Other than that, you'll have to go after market.
Reply With Quote
  #4
Old 08-31-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
You only options for third that fit rangers are rangers, explorer sport tracs, and superduty's. OR aftermarket being all those ugly led ones made for a ranger or superduty.

If you get one with cargo lamps, make sure to get the 3 bulb harness to replace your 1 bulb harness. If you have a 03 and older, it's completely plug and play. roll up on your dimmer switch(the same 'click' to turn on your dome light) and the cargo's will light up...so long you installed the 3 bulb harness.

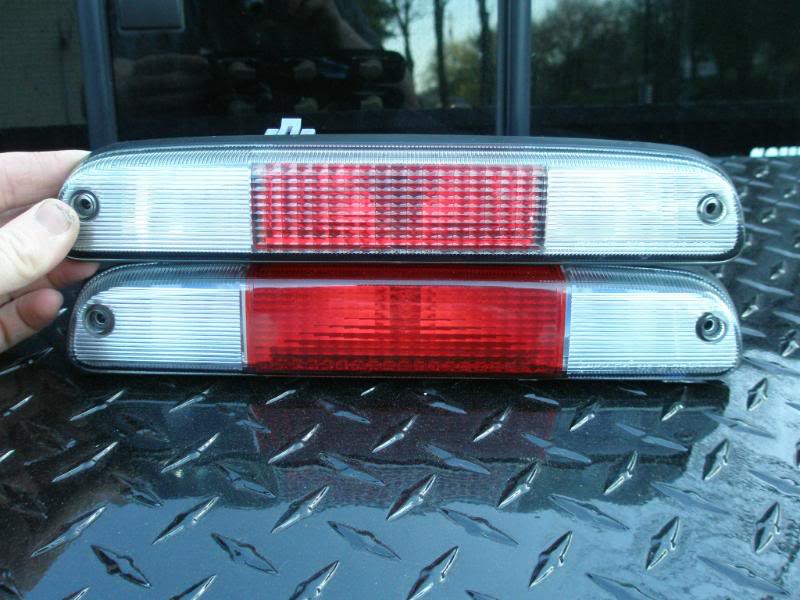

Super Duty's have special ones that fit the ranger.....light up brighter and are way cooler looking...I call it 'iced' looking.......here's a comparo of stock ranger vs. stock 08 superduty....
Name:  P4120038.jpg
Views: 0
Size:  81.2 KB
Reply With Quote
  #5
Old 09-02-2008
edge186's Avatar
Member

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
Quote:
Originally Posted by Fx4wannabe01 View Post
You only options for third that fit rangers are rangers, explorer sport tracs, and superduty's. OR aftermarket being all those ugly led ones made for a ranger or superduty.

If you get one with cargo lamps, make sure to get the 3 bulb harness to replace your 1 bulb harness. If you have a 03 and older, it's completely plug and play. roll up on your dimmer switch(the same 'click' to turn on your dome light) and the cargo's will light up...so long you installed the 3 bulb harness.

Super Duty's have special ones that fit the ranger.....light up brighter and are way cooler looking...I call it 'iced' looking.......here's a comparo of stock ranger vs. stock 08 superduty....
so the top one is off the superduty right?
Reply With Quote
  #6
Old 09-02-2008
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Other than a junkyard, do you know of a place to get a 3 bulb harness? Do you know the part number?

Thanks!
Reply With Quote
  #7
Old 02-10-2009
edge186's Avatar
Member

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
sorry i know this is kind of an old thread but if i were to find a third brake light with the cargo lights for my 04 can i just splice into the dome light wire?
Reply With Quote
  #8
Old 02-10-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
we;ve got a how-to in the how-to secton of hte site
Reply With Quote
  #9
Old 02-10-2009
redrebel66's Avatar
Member
iTrader: (2)

Join Date: Oct 2006
Location: Lebanon, Or
Posts: 91
Its plug and play. Just find one with the 3 bulb harness.
Reply With Quote
  #10
Old 02-10-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by redrebel66 View Post
Its plug and play. Just find one with the 3 bulb harness.
not for 04+ trucks....
Reply With Quote
  #11
Old 02-10-2009
fx4me's Avatar
Member

Join Date: May 2005
Location: CA
Posts: 1,507
Wasn't plug and play when I did this on my '03 and I had the 3-bulb harness. I had to splice into the dome power....
Reply With Quote
  #12
Old 02-10-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by fx4me View Post
Wasn't plug and play when I did this on my '03 and I had the 3-bulb harness. I had to splice into the dome power....
\

WEIRD!
Reply With Quote
  #13
Old 02-10-2009
edge186's Avatar
Member

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
would you mind posting a link cause i cant seem to find it in the how to section.
Reply With Quote
  #14
Old 02-11-2009
edge186's Avatar
Member

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
Fx4wannabe01, are the wiring harness connections the same on an 04 ranger as they are on a superduty? I cant find your how-to on this so maybe since this is a LIVE FORUM you could help me out a little instead of just telling me to search it. I am going to buy a third brake light off of an 08 superduty and want to know if i can just plug it in to the original harness with the exception of splicing the cargo light wire into my dome light. will that work or not? If not what do i need to do?
Thanks.

Last edited by edge186; 02-11-2009 at 07:30 PM.
Reply With Quote
