Custom 6" Square Tube Rear Bumper.

DMS Welding Custom Rear Bumper, Van Island.
Attached Thumbnails
Custom 6" Square Tube Rear Bumper.-403965_10150470633192007_515747006_9137935_1076585360_n.jpg   Custom 6" Square Tube Rear Bumper.-388215_10150470630172007_515747006_9137926_394224000_n.jpg   Custom 6" Square Tube Rear Bumper.-401986_10150483938497007_515747006_9183051_916360098_n.jpg   Custom 6" Square Tube Rear Bumper.-528628_10150611467837007_515747006_9571129_322844479_n.jpg
Reply With Quote
  #2
Old 03-27-2012
06RangerGuy's Avatar
Level III Supporter

Join Date: Aug 2010
Location: Davie, Fl
Posts: 285
how much?
Reply With Quote
  #3
Old 03-27-2012
rx3autocrosser's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: Duncan B.C
Posts: 16
It was around $1100.00 painted & installed w built-in hitch & tow hooks.

Someone hit me in the drivers rear , it folded the bumper & caused panel damage. I told ICBC that the factory bumper wasn't good enough. They gave me the allowance in damage cost plus I paid the difference to get this custom one made. Well worth it , this bumper it tough and bolts to the frame.
Reply With Quote
  #4
Old 03-27-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Nice.

Are the d-ring mounts welded directly to the outside of the bumper?
Reply With Quote
  #5
Old 03-27-2012
Member

Join Date: Jul 2007
Location: alberta
Posts: 457
Very nice.
Reply With Quote
  #6
Old 03-27-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Nice... looks beefy! What thickness of material is it made from?
Reply With Quote
  #7
Old 03-27-2012
rx3autocrosser's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: Duncan B.C
Posts: 16
Yes, mounted on outside. They are in line with the frame for strength. 1/2" thickness,....and actually the bumper is 6x4" sqaure tube, not 6x6 as I said.
Reply With Quote
  #8
Old 03-27-2012
rx3autocrosser's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: Duncan B.C
Posts: 16
I beleive it's 1/4" or so . The hooks are 1/2" and so were the mounting brakets which attach to frame. I can take more close up pictures if anyone wants me to?
Reply With Quote
  #9
Old 03-27-2012
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Nice. That looks good
Reply With Quote
  #10
Old 03-27-2012
rx3autocrosser's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: Duncan B.C
Posts: 16
Thanks man. Can't wait to get the front done too!
Reply With Quote
  #11
Old 03-28-2012
rx3autocrosser's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: Duncan B.C
Posts: 16

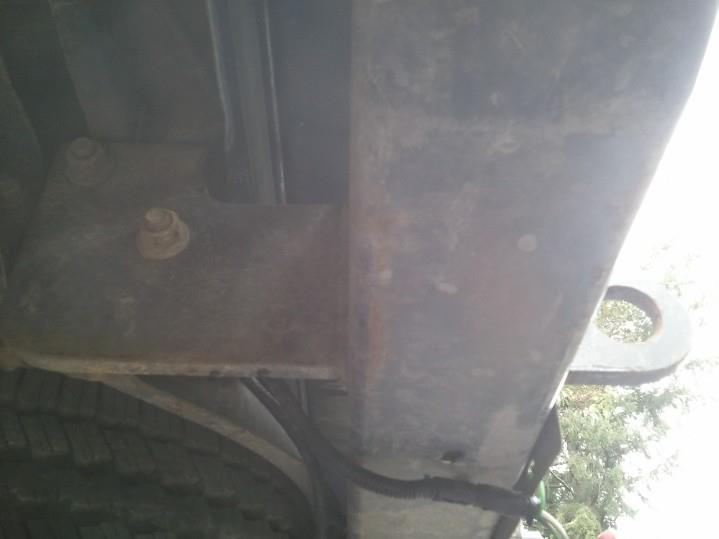

I beleive the D Rings go right through the bumper actually. Here are some more pics.
Attached Thumbnails
Custom 6" Square Tube Rear Bumper.-527199_10150616830302007_515747006_9590929_363675902_n.jpg   Custom 6" Square Tube Rear Bumper.-522536_10150616831002007_515747006_9590932_1301860553_n.jpg
Reply With Quote
  #12
Old 03-28-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,769
rx3autocrosser ,

Nice, interesting a 4x6 rect tube.

Will have to look around the scrap heap of the local yard and see what they have.

thks for the ideas.
Reply With Quote
  #13
Old 03-28-2012
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
$1100? thats insane, material cost might reach 250.

so you got hit, the bumper folded and hit the panel? but your frame was good.

now if you get hit your bumper will be mint and your frame will be bent.

love the look of them, but the results they have and the price tag pushes 90% or the buyers away, including myself.

if it works for you, it works for you.
Reply With Quote
  #14
Old 03-28-2012
rx3autocrosser's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: Duncan B.C
Posts: 16
I only paid $400 , ICBC paid the rest. Whenever you get anything custom done , you have to consider labour cost , there was alot of fabrication done here , good stuff doesnt come cheap. I dont know about my frame being bent, thats questionable ? So your saying that with this bumper my frame will get bent easier that a stock bumper that folds in at walking speed impact. Highly doubt it , also body panels are far more expensive to fix & or replace than bumpers.
Reply With Quote
  #15
Old 03-28-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Very nice... anything drawn up for the front yet?
Reply With Quote
  #16
Old 03-29-2012
rx3autocrosser's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: Duncan B.C
Posts: 16

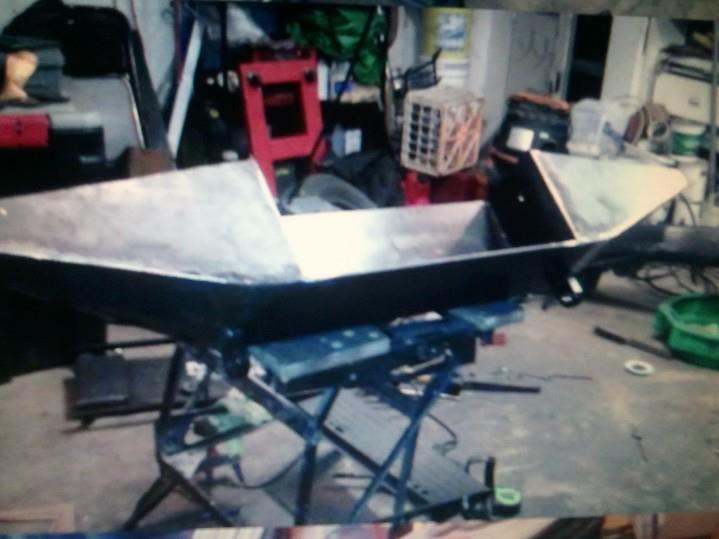

Can't remember where I got these pictures but I like the idea of the White Ranger front bumper because I have the same grill to mount to it.

I like the grey Ranger too, fog lights frenched in.
Attached Thumbnails
Custom 6" Square Tube Rear Bumper.-403858_10150617873557007_515747006_9594319_645867699_n.jpg   Custom 6" Square Tube Rear Bumper.-538570_10150617873642007_515747006_9594320_707170410_n.jpg   Custom 6" Square Tube Rear Bumper.-306058_10150617873962007_515747006_9594322_1333906991_n.jpg   Custom 6" Square Tube Rear Bumper.-529693_10150617874667007_515747006_9594329_1194244429_n.jpg
