Why does the front come so far up? I never saw that before but it looks nice and strong. Also awesome fabrication!
Reply With Quote
  #52
Old 04-12-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by zabeard View Post
either inside or outside will work well.I think inside might be a bit close tho.

i like them, i had some similar made at work. got to love working in a machine shop
Haha.. or any shop that has some decent quality machining equiptment. I'll get a pic of the 'drill press' I used for milling the holes. Before Jason closed his shop, using his mill was great!
Reply With Quote
  #53
Old 04-12-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yeah its always good to know machinist.

so what did you decide?
Reply With Quote
  #54
Old 04-12-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by zabeard View Post
yeah its always good to know machinist.

so what did you decide?
I decided on the outside of the stinger tube, mostly because that was my original plan and it will put the shackles right in line with the frame.
Reply With Quote
  #55
Old 04-16-2008
Member

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
that is awsome man....


on the 2 1/2" x 5" tube whats the wall thickness you useing?
Reply With Quote
  #56
Old 04-16-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by Old Black Cat View Post
that is awsome man....


on the 2 1/2" x 5" tube whats the wall thickness you useing?
.250 or 1/4" wall thickness.
Reply With Quote
  #57
Old 04-16-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428

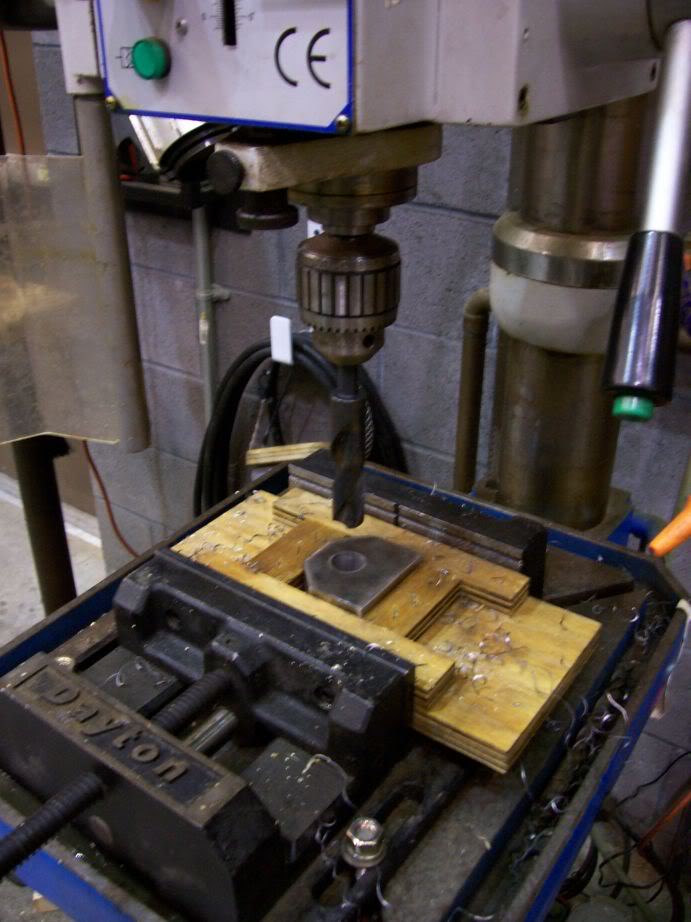

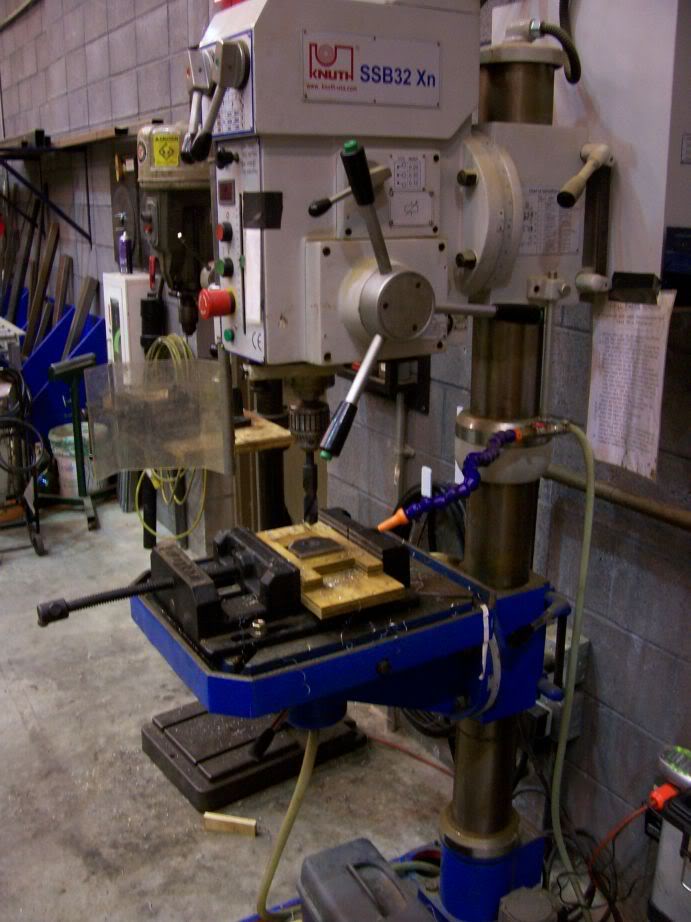

So this is the drill press I used to mill the holes for the shackle blocks. Its a great press because you set the speed and down force, then start it and let it do its thing!

Name:  100_0782.jpg
Views: 6
Size:  84.1 KB

Name:  100_0784.jpg
Views: 5
Size:  78.2 KB
Reply With Quote
  #58
Old 04-16-2008
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
nice, im gona get the guys at my work on the machine side to make me some stuff when the time comes. Or atleast let me use a bridgeport and a press after work
Reply With Quote
  #59
Old 07-08-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
diggin this back up.

Kevin what radius did you bend in the stinger?
Reply With Quote
  #60
Old 07-09-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by zabeard View Post
diggin this back up.

Kevin what radius did you bend in the stinger?
Haha..

I couldn't tell ya for sure, but if I had to guess I'd say ~120-130*. I think that's what you're asking? I don't know what diameter of the die I used was (not the tube diameter size), but couldn't be far off from your's as Jason got it through Pro Tools.
Reply With Quote
  #61
Old 07-09-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 2002FX4 View Post
Haha..

I couldn't tell ya for sure, but if I had to guess I'd say ~120-130*. I think that's what you're asking? I don't know what diameter of the die I used was (not the tube diameter size), but couldn't be far off from your's as Jason got it through Pro Tools.
Yea I am sure its either a 6 or 7 inch

I was kinda curious because I am about to bend mine and didnt want it to be a complete guess
Reply With Quote
  #62
Old 11-04-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428

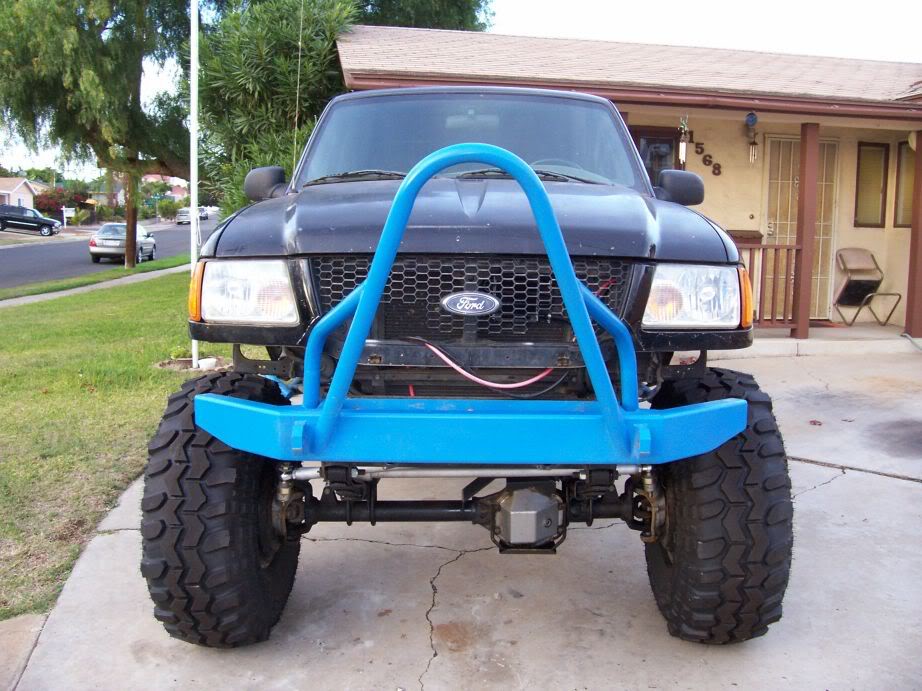

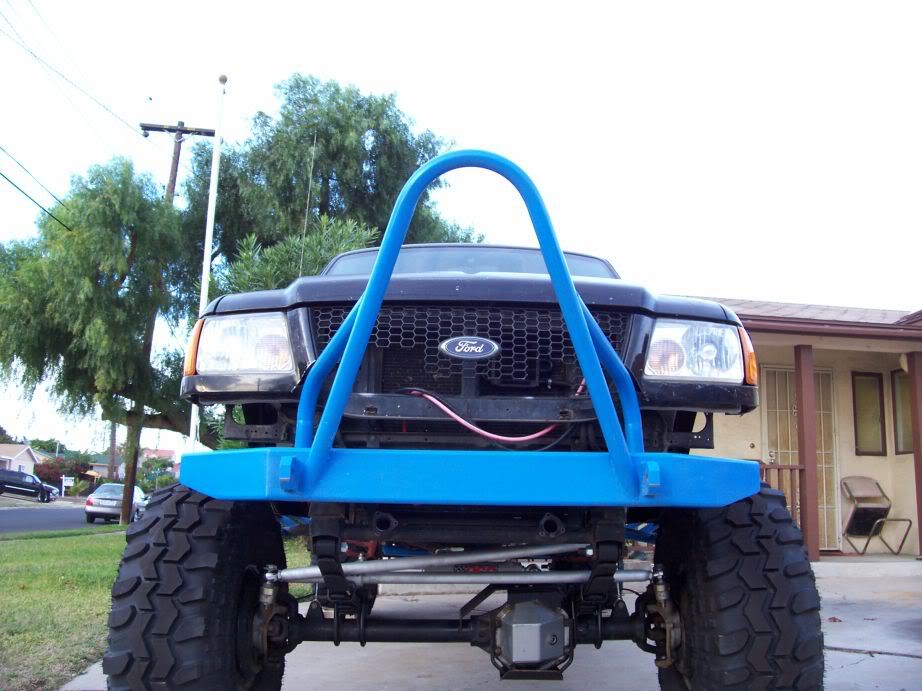

Re-worked my front bumper. I was never fully happy with every aspect of it.. now I am!

Front:
Name:  100_1115.jpg
Views: 4
Size:  114.1 KB

Name:  100_1107.jpg
Views: 5
Size:  92.5 KB

I altered the stinger supports: brought the outer ends in towards the frame along with raising where it hits the singer abit:
Name:  100_1113.jpg
Views: 4
Size:  106.8 KB

Name:  100_1111.jpg
Views: 5
Size:  92.2 KB

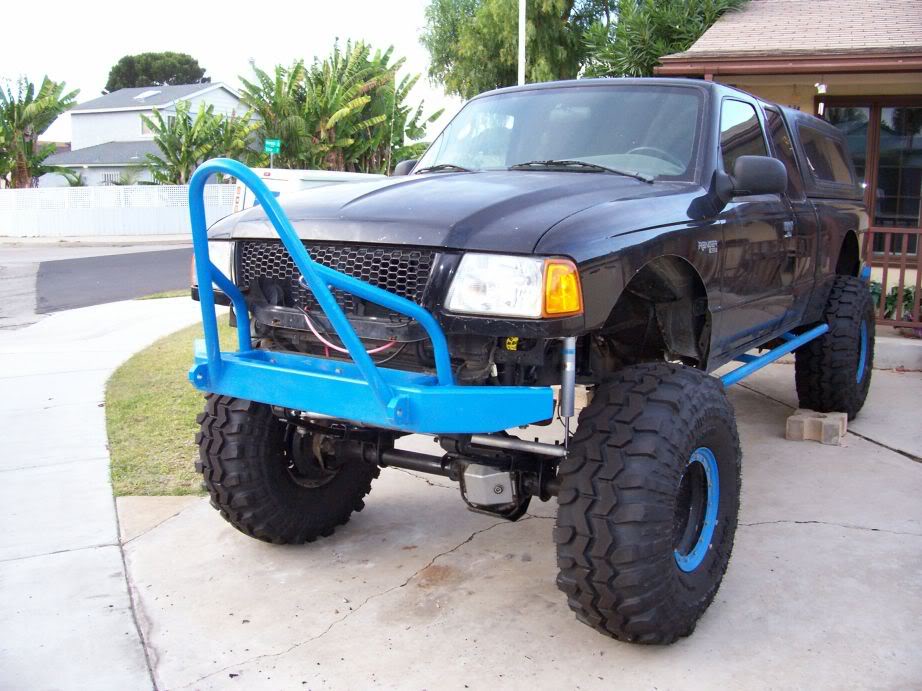

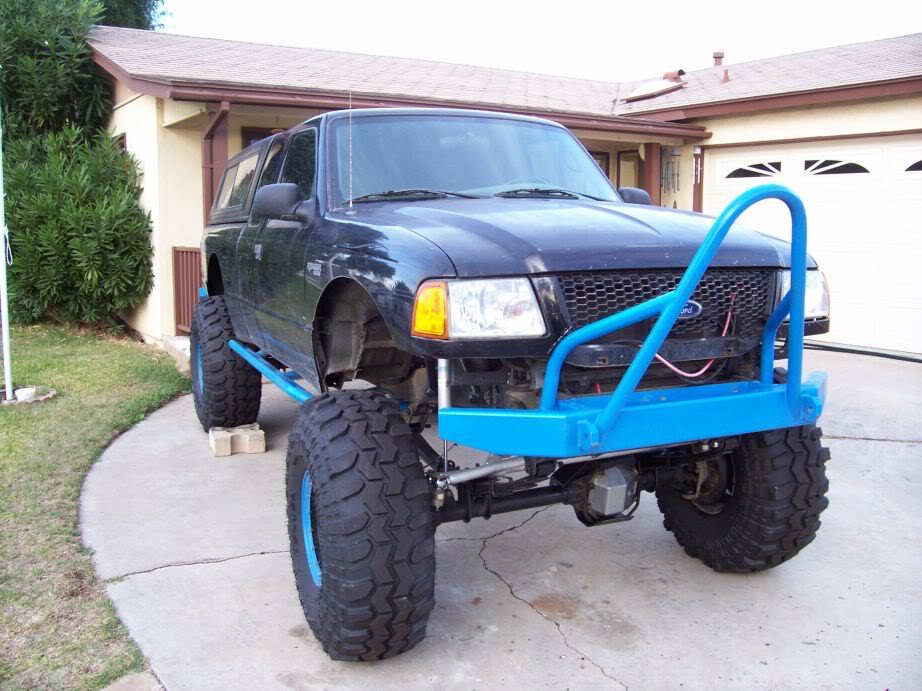

I also cut 3" off the end of the main tube on both sides. After doing so I realized how goofy the long, slanted ends had looked before:
Name:  100_1109.jpg
Views: 5
Size:  106.4 KB

Name:  100_1108.jpg
Views: 6
Size:  104.0 KB

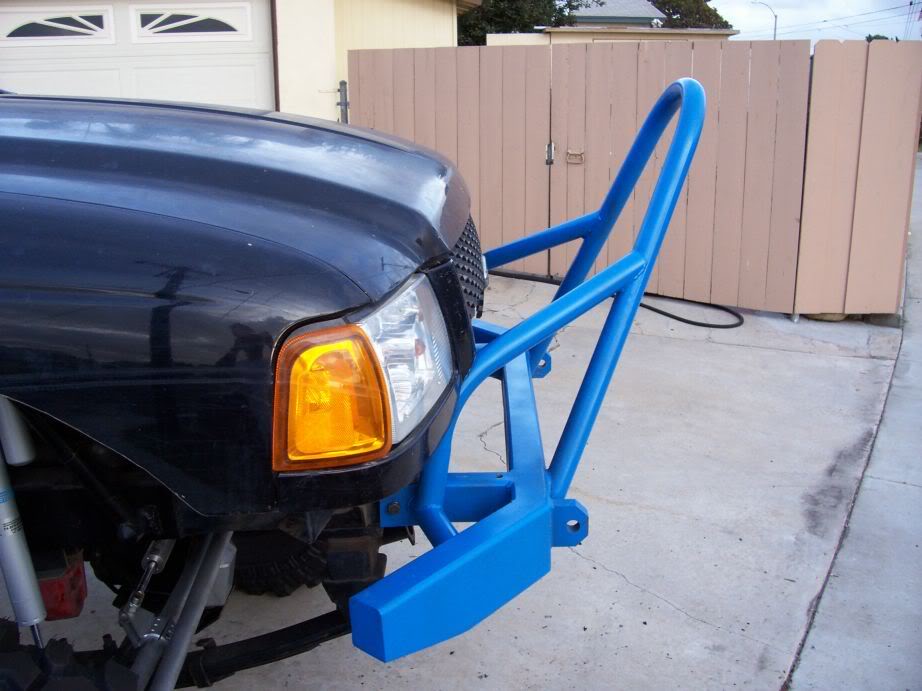

Finally I sucked the whole bumper back 2-1/4":
Name:  100_1110.jpg
Views: 7
Size:  75.8 KB

Name:  100_1105.jpg
Views: 4
Size:  72.1 KB
Reply With Quote
  #63
Old 11-04-2008
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Your truck is the most badass truck on this forum. Hands down.
Reply With Quote
  #64
Old 11-04-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Looks good Kevin, You really tucked that thing back in there. Only thing I can think is if you moved it up some but overall looks much better.
Reply With Quote
  #65
Old 11-04-2008
BurningRANGERtires's Avatar
Member

Join Date: Jun 2008
Location: North Sin City, NV
Posts: 312
looks good!! is that a bolt on?
Reply With Quote
  #66
Old 11-04-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Thanks guys!


Quote:
Originally Posted by BurningRANGERtires View Post
looks good!! is that a bolt on?
Sure is.
Reply With Quote
  #67
Old 11-05-2008
Dromlace's Avatar
Member

Join Date: Sep 2008
Location: Pville, AL
Posts: 340
Nice design, i like the prerunner kinda look.
Reply With Quote
  #68
Old 11-05-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by Dromlace View Post
Nice design, i like the prerunner kinda look.
Thanks. But how do you get a 'prerunner kinda' look from it?
Reply With Quote
  #69
Old 11-05-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Looks good Kevin. Just excuse Drom, he doesn't really know what he's talking about.

Your truck looks freakin BA with that topper on it, makes it look huge.
Reply With Quote
  #70
Old 11-05-2008
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i dont like the huge hoop and i think it needs to move up closer to the bottom of the fenders. other than that i like it you do nice work i wish i had the skills to do that
Reply With Quote
  #71
Old 11-05-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Its built for purpose over looks.
Reply With Quote
  #72
Old 11-05-2008
herm59's Avatar
Member

Join Date: Jun 2008
Location: Toms River, NJ
Posts: 1,694
Nice man. You should weld it onto the frame and add a winch.
Reply With Quote
  #73
Old 11-05-2008
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by herm59 View Post
Nice man. You should weld it onto the frame and add a winch.
Its bolt on, which i better. Kevin has a winch.
Reply With Quote
  #74
Old 11-05-2008
Dromlace's Avatar
Member

Join Date: Sep 2008
Location: Pville, AL
Posts: 340
Quote:
Originally Posted by 2002FX4 View Post
Thanks. But how do you get a 'prerunner kinda' look from it?
The bumper is what I've seen some pre-runners using for mounted lights. IE a "prerunner kinda" look.
Reply With Quote
  #75
Old 11-15-2008
spaz1879's Avatar
Member

Join Date: Jun 2008
Location: lumberton, nj
Posts: 74
Icon3

what angle is it where you have the bumper start to turn in?
the reason i ask because im building a bumper with 45 degree angles and was just wondering to do a little comparing and maybe get an idea how mine will turn out once start to get the bumper started.
Reply With Quote
