thanks guys! Yeah I'd love to have a winch in it, But I decided to just do front and back receivers and get a 2" receiver winch mount. That way while I still DD my truck I don't have to worry about trying to keep it clean from road salt etc. When it becomes strictly a toy I'm sure I'll put a winch in and have a much smaller crossmember bumper of sorts.

Quote:
Originally Posted by ClemsonRanger03 View Post
any plans for tow hooks or a front receiver?
Quote:
Originally Posted by malydeen View Post
Do you have enough extra steel to make me one?



me too....
I might, But I think I'm going to make some sliders out of the same stuff. I'll have to see though. If I dont have enough I can tally up the metal we would need easily, I'll keep it written down It wouldnt be too much to buy I dont think.
Reply With Quote
  #27
Old 07-20-2009
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
Quote:
Originally Posted by INT3RC3PTOR View Post
I might, But I think I'm going to make some sliders out of the same stuff. I'll have to see though. If I dont have enough I can tally up the metal we would need easily, I'll keep it written down It wouldnt be too much to buy I dont think.
That would be awesome. I would like to leave the hole in it thought to access the stock tow hooks and my receiver. Im sure it would be too hard to modify your plans.
Reply With Quote
  #28
Old 07-20-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah that would be easy enough to do.


I got a little more work done today and then I took a break and went biking with a few people. I got the ends all capped and fully welded and started on welding the seams. Tomorrow I'm going to get it welded up and primered,and also add some temp mounts to the frame so I can get it on and not have to roll around bumperless this week.(I cant throw on my stocker cause I snapped off two of the studs on the BL bumper brackets heh)

I will put on my shackle mounts, 2" reciever and the real mounts on over the weekend. As long as I can get my shackle mounts here by then.
Reply With Quote
  #29
Old 07-21-2009
herm59's Avatar
Member

Join Date: Jun 2008
Location: Toms River, NJ
Posts: 1,694
Looking good. Can't wait to see the finished product.
Reply With Quote
  #30
Old 07-21-2009
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
hey if u can can u take some pics on how ur mounting the bumper to the truck? id like to go and try doing somethng like this.. but still debating on how to do it, and attach it to the truck.. plus gotta be solid for the winch
Reply With Quote
  #31
Old 07-21-2009
Member

Join Date: Jun 2009
Location: iowa
Posts: 67
wow i really like it, i just wish i had the time to make myself some bumpers cant wait to see the finished product
Reply With Quote
  #32
Old 07-21-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks pretty good. I like it.
Reply With Quote
  #33
Old 07-21-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Got a little work done today, It was cut short by some thunderstorms that decided to roll in. Got the primer on my bare metal just before it hit. I was just in the middle of getting my mounts figured out, so i should be able to get the bumper on the next time I can work on it. Should be able to after work tomorrow(new job woot) as long as it doesnt rain on me.

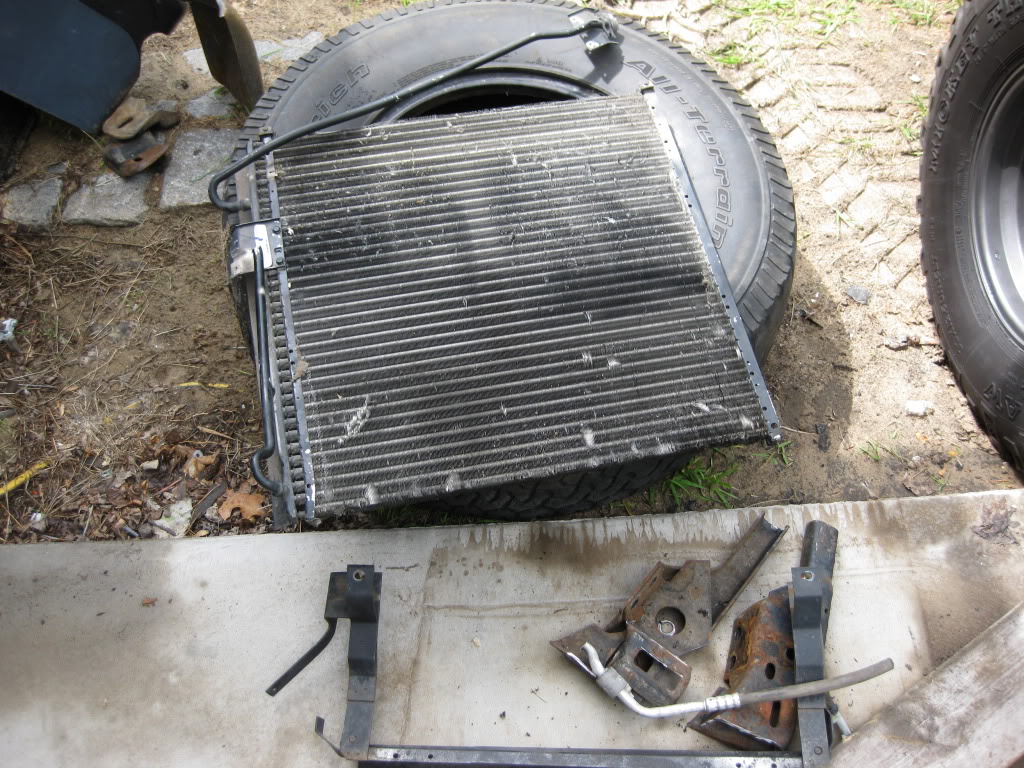

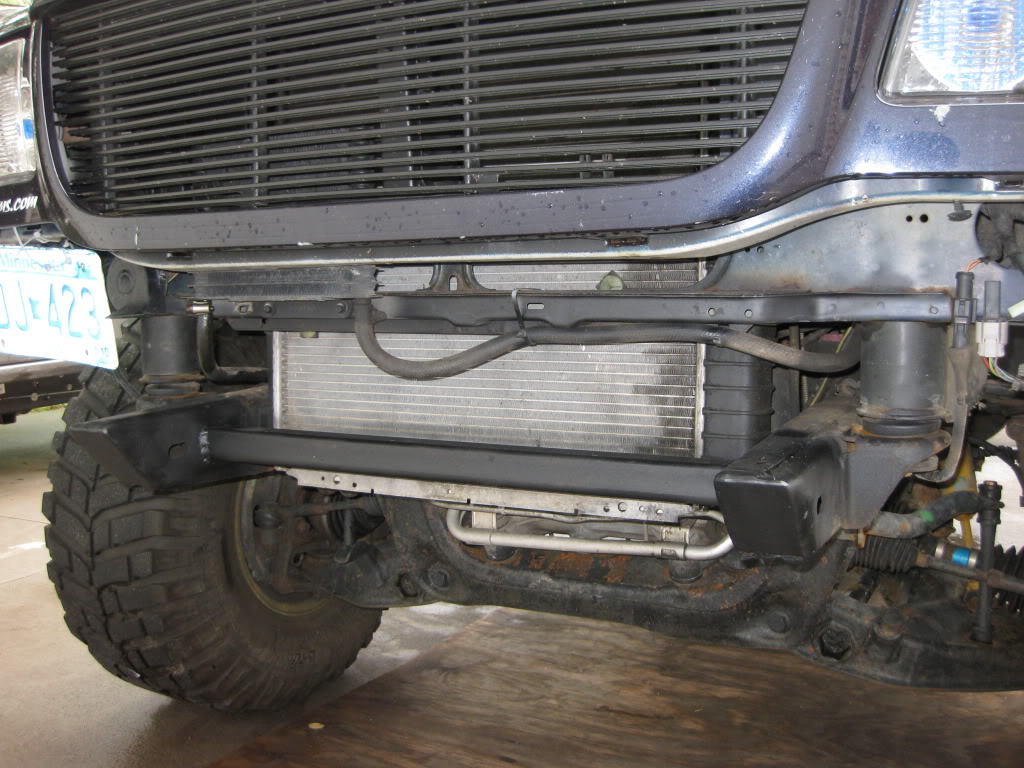

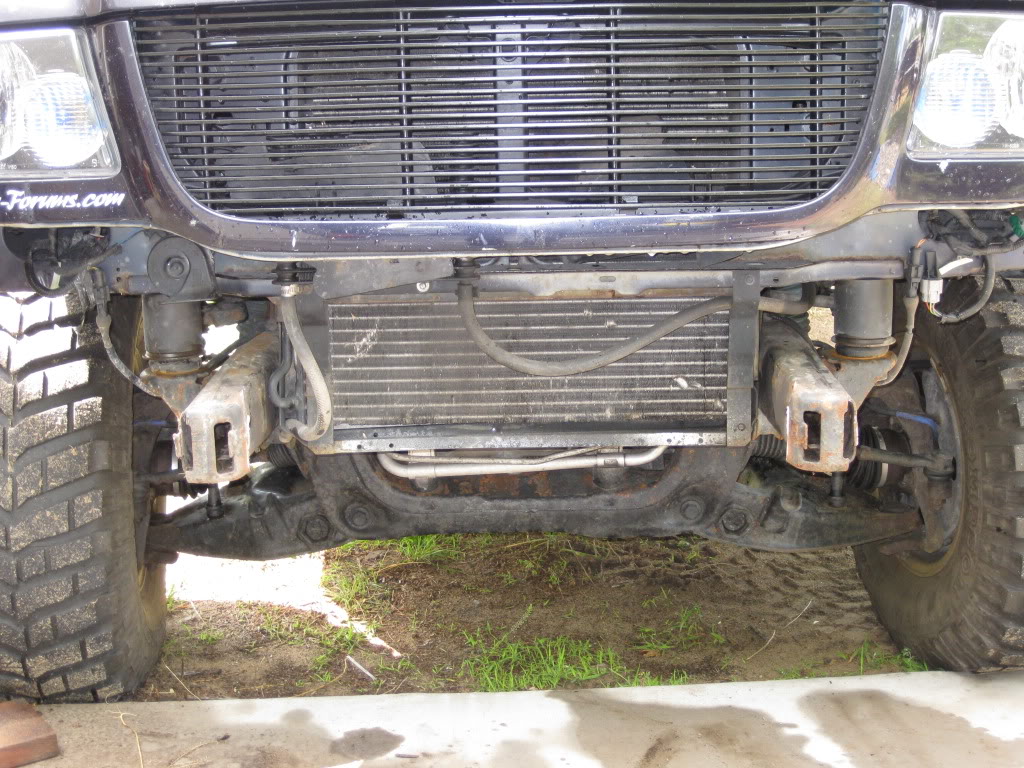

Just got a few pics of the frame horns chopped and 45'd and then boxed in. Also removed my A/C condensor to allow better air to my Rad. while I was in there. And made a new crossmember. I 45'd the frame so It will look much better when the bumper is on because you will see just the bottom of them. I also had to leave a decent amount remaining so I have enough room for the leaf hangar/crossmember I'll build when I sas.

enough talk onto pics..I forgot to take more of the finshed off bumper besides mounts and shackle tabs

Name:  july09001-1.jpg
Views: 80
Size:  217.2 KB
Name:  july09003-1.jpg
Views: 77
Size:  239.0 KB
Name:  july09005-1.jpg
Views: 78
Size:  199.2 KB
Name:  july09012.jpg
Views: 76
Size:  160.0 KB
Reply With Quote
  #34
Old 07-21-2009
Member

Join Date: Apr 2008
Location: Doylestown, PA
Posts: 111
Looks great. Only thing I might change is the side pieces, maybe cut a slight angle that tapers back instead of just a rectangular look on the side of the bumper. I think it would tie it in a bit better on the side of the truck maybe. How much do you think it weighs?
Reply With Quote
  #35
Old 07-21-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Great progress. Can't wait to see that thing done!!
Reply With Quote
  #36
Old 07-21-2009
silverstreak4x4's Avatar
Member

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
Looks awesome man! Im currently getting a bumper built. Its turning out great but the only thing is that I wish I did it myself. I don't have the proper tools or skill to fab one up. Props to u man
Reply With Quote
  #37
Old 07-21-2009
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
lookin great, you dont have a job do you, with the work you're getting done!
Reply With Quote
  #38
Old 07-21-2009
rsw2159's Avatar
Member

Join Date: Jun 2008
Location: Stanley, NC
Posts: 473
when your done sell it to me =]
Reply With Quote
  #39
Old 07-21-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by T173M View Post
Looks great. Only thing I might change is the side pieces, maybe cut a slight angle that tapers back instead of just a rectangular look on the side of the bumper. I think it would tie it in a bit better on the side of the truck maybe. How much do you think it weighs?
I did, that was before I cut and angle in it. its now 2" down and 4" in at an angle. not sure on weight yet, got lots of metal to go on still
Quote:
Originally Posted by Red_Ak_Ranger View Post
lookin great, you dont have a job do you, with the work you're getting done!
yep me and couple people got let go wrongfully..long story, but I start a new one tomorrow and get payed more woot. yeah It was nice to get some stuff done that I might not have.
Quote:
Originally Posted by rsw2159 View Post
when your done sell it to me =]
haha yeah right, I gota sport these badboys for a while.lots of backbreakn work into them
Reply With Quote
  #40
Old 07-21-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
looks great cant wait to see it done
Reply With Quote
  #41
Old 07-23-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Didn't get as much done today as I hoped for. Got home late and the damn rain came again and ran out of gas. But I started all my grinding and only have a little more welding to do and drill my holes for my hardware. Picked up my grade 8 bolts for it so I'm set there. Got the mounts all figured out today so as soon as I get gas and have time it will be on the truck.still waiting on my shackle mounts though.

The most expensive part of the bumper..

Name:  july09015.jpg
Views: 78
Size:  109.2 KB

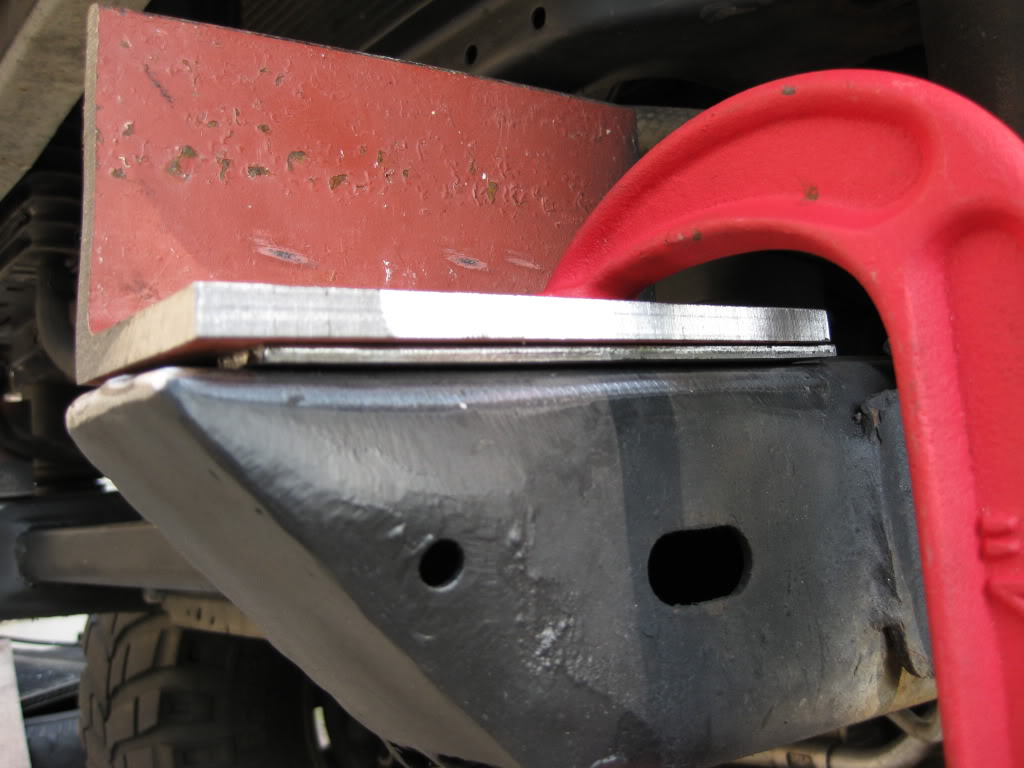

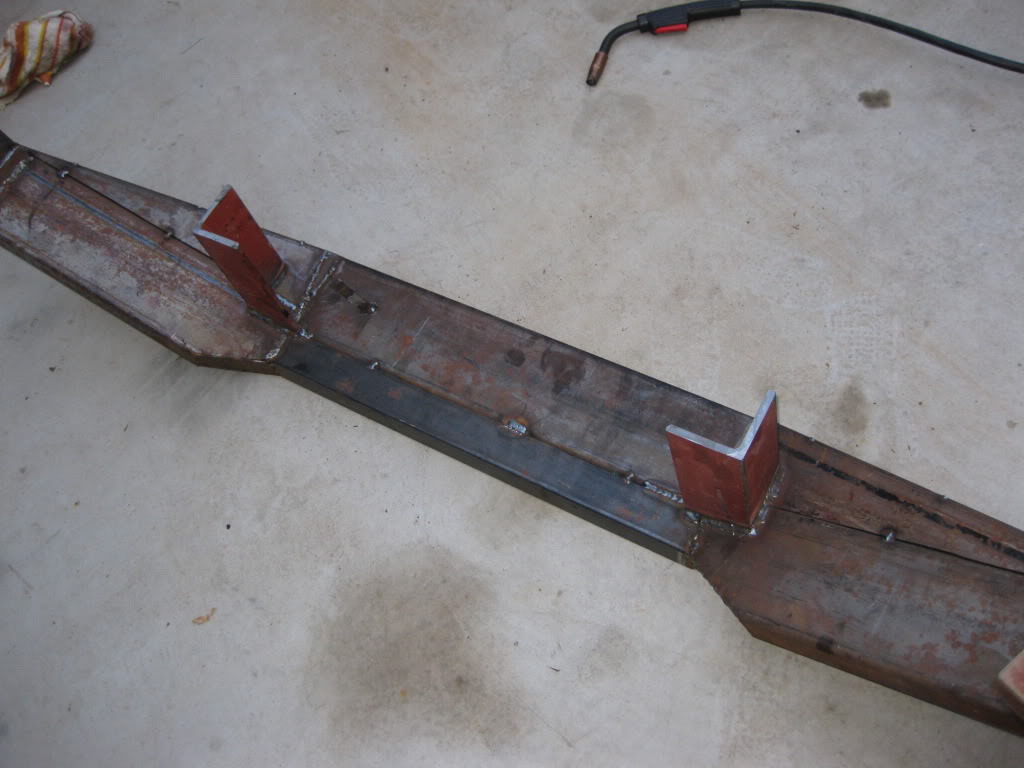

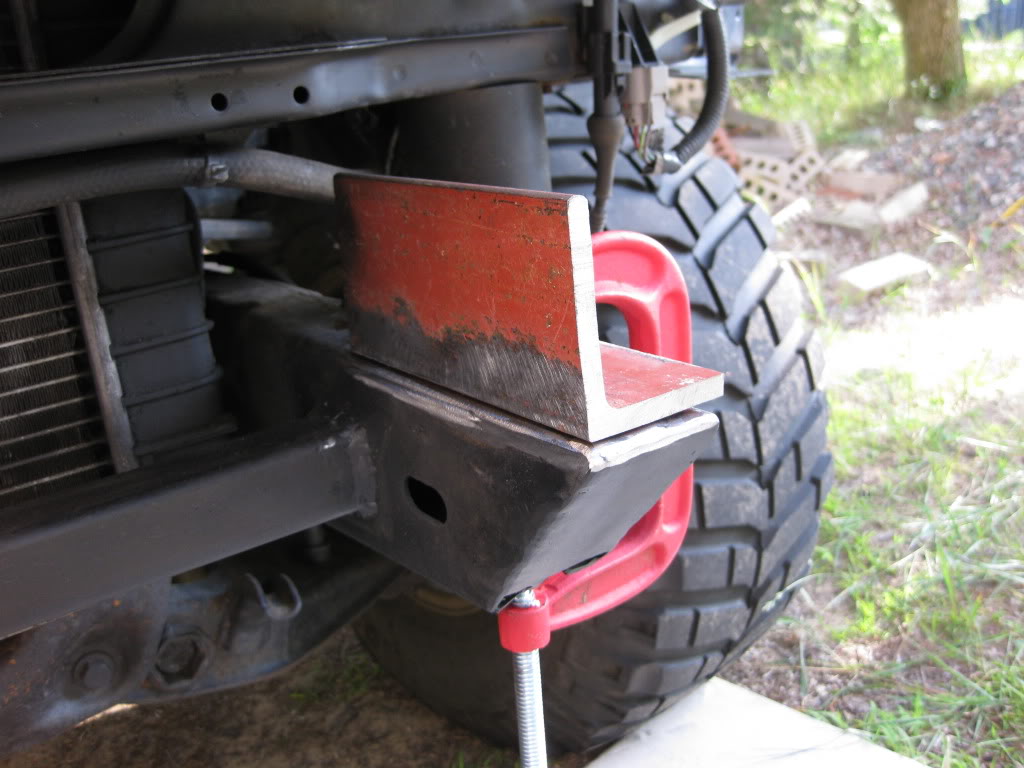

Used some 3/8 Angle for the monts on the frame and to the bumper. Had to shim the outsides with 1/8 plate to offset the lap in the top of the frame. The angle on the bumper will lap over the angle on the truck, and the bolts will go through them. I will still add some braces down to the frame from the sides of the bumper as well

Name:  july09017-1.jpg
Views: 74
Size:  111.7 KB

Name:  july09018.jpg
Views: 77
Size:  94.8 KB

Name:  july09023.jpg
Views: 76
Size:  157.0 KB

Name:  july09022.jpg
Views: 78
Size:  92.4 KB

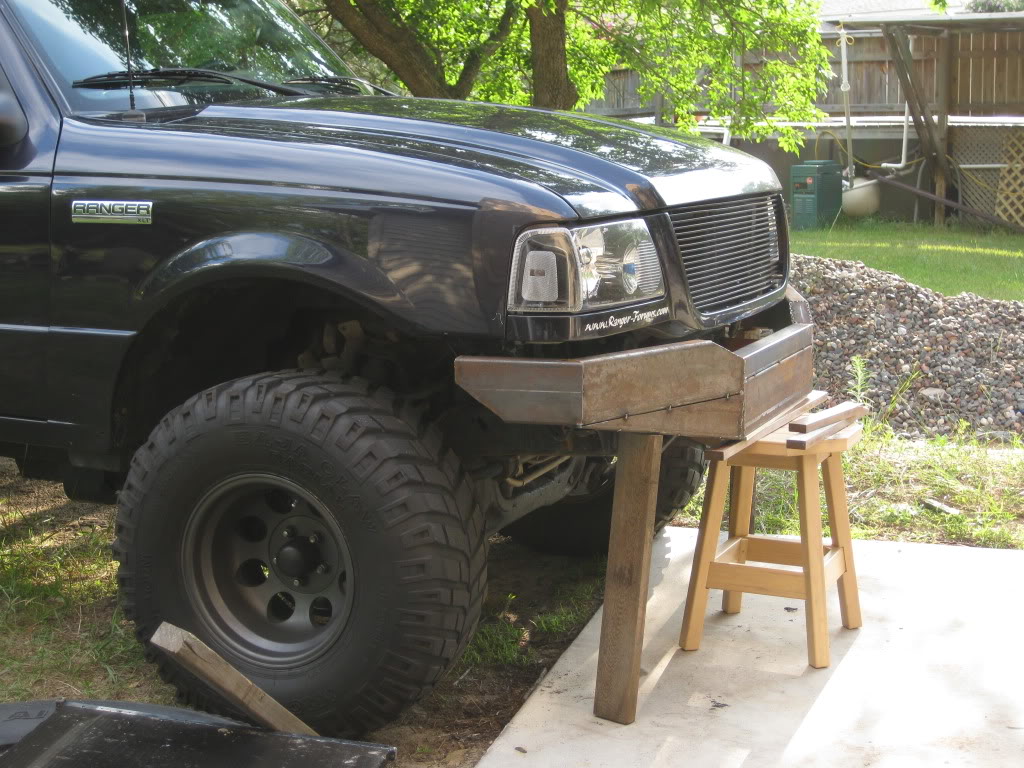

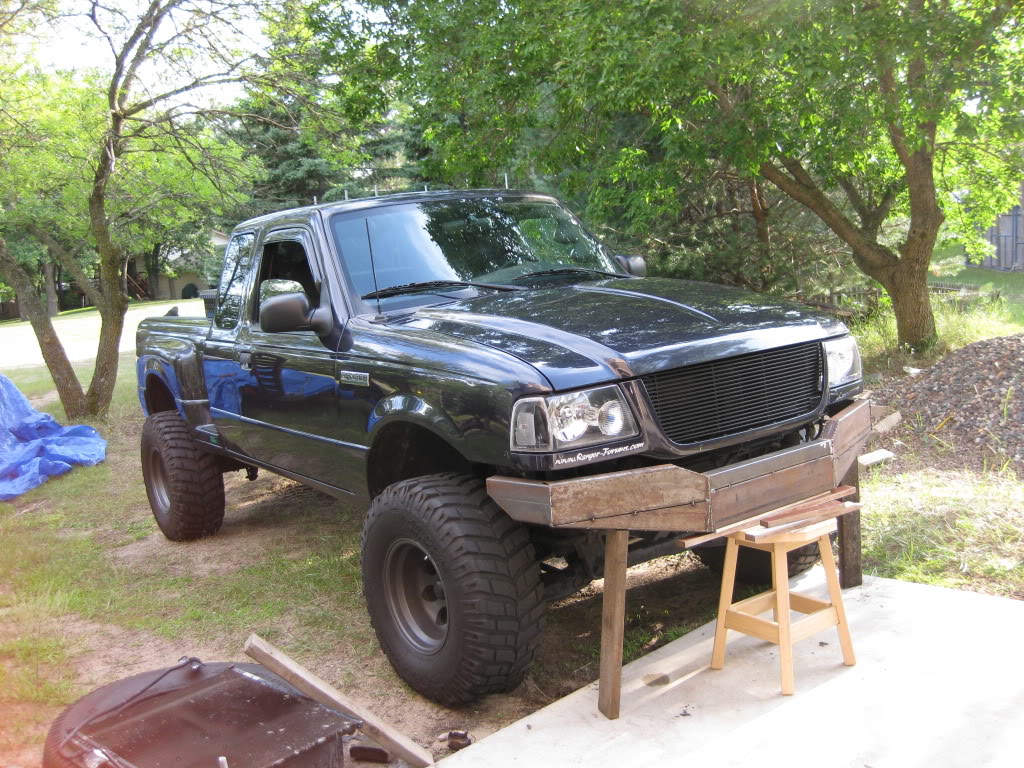

Just a couple pics of the bumper in a semi/finshed form on the truck. It will look better when I get the top finshed off towards the truck. it will cover the gap thats there. I have tons of room behind the bumper, I still have been thinking about putting a winch behind it and put a nice fairlead on the front of the bumper. but I dont know,maybe later on.

Name:  july09019-1.jpg
Views: 76
Size:  188.4 KB

Name:  july09020-1.jpg
Views: 78
Size:  258.6 KB

Name:  july09021.jpg
Views: 78
Size:  259.9 KB

I promiss next time it will be finished lol..
Reply With Quote
  #42
Old 07-23-2009
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
lol looks great. nice idea on the mounting on the frame
Reply With Quote
  #43
Old 07-23-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Looks great! but its missing a place for a winch! lol
Reply With Quote
  #44
Old 07-23-2009
herm59's Avatar
Member

Join Date: Jun 2008
Location: Toms River, NJ
Posts: 1,694
All I hear are empty promises.


Looks good nonetheless.
Reply With Quote
  #45
Old 07-23-2009
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
Looks good.. you took out the AC condensor?? so no more AC?
Reply With Quote
  #46
Old 07-23-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah I havnt had AC in a couple years, but I dont miss it that much. So I wanted to take out the pointless AC unit in front of the Rad.


Got the bumper on the truck now, just partly primerd and not all the way finished. Did so so I could have a bumper on my truck for going to work. Taking the chance everyday of getn pulled over wasnt too good. I dont need any more reason to get pulled over than I already do heh.

I'm gona take pics tomorrow after work, Finsh it when I get gas monday
Reply With Quote
  #47
Old 07-23-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Really digging how you did the sides!! Great work.
Reply With Quote
  #48
Old 07-23-2009
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Lol dude i rocked no bumper there for the longest time. I'll sell you a license plate, guaranteed no pullovers (until they figure its not ur truck, then guaranteed lotsa pullovers)
Reply With Quote
  #49
Old 07-23-2009
Member

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
i like it, the mounts are a cool idea. i wish i would have thought of that.
Reply With Quote
  #50
Old 07-24-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Haha yeah Aaron they didnt give a **** about you here at all.

Yeah the mounts turned out great, it allows me to not have to even hold the bumper up to put th bolts in. It just rests on the truck by itself and makes it really easy to put on the hardware and take it off etc.



teaser pic!!!111 Its a tad higher on the pass. side. I guess thats what I get for putting it on in the dark. I'll ajust it later.

Name:  july09041.jpg
Views: 77
Size:  79.3 KB
Reply With Quote
