front d-shaft adapter

finally made one version of front drive shaft adapter. This one is chromoly ready for paint. Next a billet one piece version.

Name:  mytruck253.jpg
Views: 7
Size:  216.9 KB

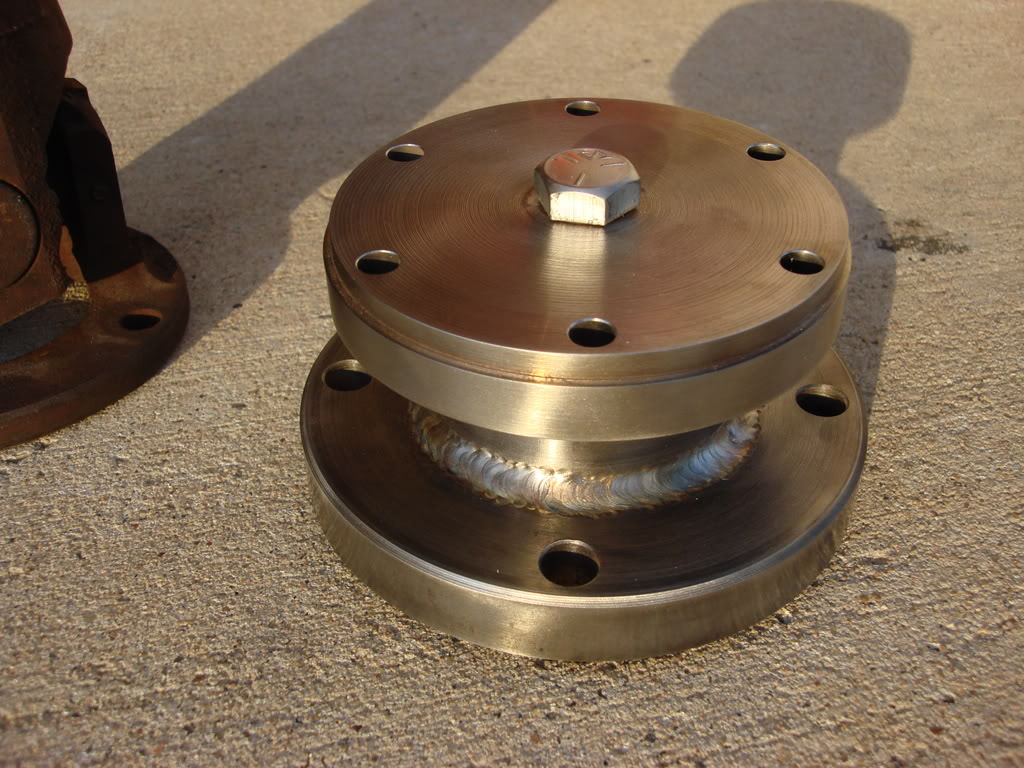

Name:  mytruck254.jpg
Views: 5
Size:  165.5 KB
Reply With Quote
  #2
Old 11-15-2007
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
looks good man..

i love lathes they are awsome tools to work with
Reply With Quote
  #3
Old 11-15-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
very nice man.

those measurements help or did you have to come up with another deisgn
Reply With Quote
  #4
Old 11-15-2007
badkarma's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Austin Texas
Posts: 171
just made it up as I went along. Now I'll test it out and then make the aluminum ones.
Reply With Quote
  #5
Old 11-15-2007
badkarma's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Austin Texas
Posts: 171
I'm not sure about the overall length of yours Z but this one is about 3" overall. I have to use studs with nuts to attach it to the t-case.
Reply With Quote
  #6
Old 11-15-2007
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Awesome work!
Reply With Quote
  #7
Old 11-15-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by badkarma
I'm not sure about the overall length of yours Z but this one is about 3" overall. I have to use studs with nuts to attach it to the t-case.

did you not have any bolts that thread into the tcase? or are the studs in the tcase and the nuts are holding it on?

mine is something like 3"

Reply With Quote
  #8
Old 11-16-2007
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
What exactly does this adapter adapt? What driveshaft and t-case are we talking about?
Reply With Quote
  #9
Old 11-16-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
front driveshaft at the Tcase...

i think that is a standard front driveshaft in the pictures that you see on most trucks.
Reply With Quote
  #10
Old 11-16-2007
badkarma's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Austin Texas
Posts: 171
in between the two flanges there is not enough room to put the bolts into the t-case.so I will put studs with a lock nut and locktite.

the stock front d-shaft is like a cv-joint. has bearings inside it allowing it to pivot. this adapter lets me use any driveshaft I want. like Kach has pictured.Now just cut the shaft to size and weld it up.

My front driveshaft happens to come from a full size chevy. Just happen to have one for whatever reason.
Reply With Quote
  #11
Old 11-16-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
im nit-pickin ya but, the weld is under cut and you might wanna stick a grade8 bolt in there for the extra shear strength

adapter looks good, nice machine work!
Reply With Quote
  #12
Old 11-16-2007
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
give it more rod
Reply With Quote
  #13
Old 11-16-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
Quote:
Originally Posted by HighRollerII
give it more rod
thats what she said
Reply With Quote
  #14
Old 11-16-2007
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by gumby
thats what she said

not what she told me...



Looks like a nice adapter

Id like to see it when its all installed, see how it holds up to your 38.5s
Reply With Quote
  #15
Old 11-16-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
that looks great, its completely different than i expected.
Reply With Quote
  #16
Old 11-16-2007
badkarma's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Austin Texas
Posts: 171
Grade 8 bolts are goin in. This adapter is mostly for mock up purposes but you'd break everything on the drivetrain long before that breaks.guaranteed.
Reply With Quote
  #17
Old 11-16-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
so does that means mine's coming soon-ish? haha

Last edited by 99ranger4x4; 11-16-2007 at 07:27 PM.
Reply With Quote
