Light Bar Mount?

I am looking all over, and i cannot find one for Rangers, I want a bar that mounts to the bed rail, doesnt block the back window, and can go around a toolbox. It is for lights onlt, not ladders, so it doesnt have to support 500 lbs. I am also throwing the idea around of getting a Whelen Liberty LED lightbar, (and ditch my crappy galls rotating beacon) and mounting that on there so i dont drill holes in my roof.

has anyone seen somthing out there that is what i am looking for? or am i making my own?

if i am making my own, how should i fab this? i am new, ive made two brakets for my TIR 3's in the grille, and over my third brake light, and that is it.

any input is appreciated.
Reply With Quote
  #2
Old 02-15-2012
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Backrack? What style bed do you have?
Reply With Quote
  #3
Old 02-15-2012
Member
Thread Starter

Join Date: Jan 2012
Location: Columbia Heights, MN
Posts: 8
regular bed, 6ft. 4x4 2011

also looked at those, they block the back window.
Reply With Quote
  #4
Old 02-15-2012
Member

Join Date: Feb 2011
Location: North Conway NH 03860
Posts: 12
What About using the Back-Rack design and fabricate your own improvements ?
Do you need to have access to the rear window? I've seen thousands of Back-Racks and never heard a complaint about "blocking the window"

You could use the top of the toolbox to mount plates and posts, then fab some upper tubing that slide over the mount posts and lock in with clevis pins while being used, then unpost and stow away....
Reply With Quote
  #5
Old 02-15-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Why not draw something up and have it made?
Reply With Quote
  #6
Old 02-15-2012
Member
Thread Starter

Join Date: Jan 2012
Location: Columbia Heights, MN
Posts: 8
That could work... I'm looking for something permanent though...

Something like a go rhino sport bar

http://www.buyautotruckaccessories.c...rt-bar-insert/

Not with flames though. Just metal
Reply With Quote
  #7
Old 02-20-2012
Member
Thread Starter

Join Date: Jan 2012
Location: Columbia Heights, MN
Posts: 8
ive decided to build a simple hoop. I am wondering if it will be strong enough? the hoop is going to be either 1 inch square 12g steel mounted to a 3/16 inch thick steel plate on either side and mounted to the stake pockets, or should i use 1 1/4 inch 12g steel for the hoop? i would like it to be as small as possible as the lightbar will not be permenant anymore. any wisdom?
Reply With Quote
  #8
Old 03-05-2012
Member

Join Date: Mar 2011
Location: Colo. Spgs., Colorado
Posts: 29
If you look at the pictures of my truck on my profile you can see how I did it (sorry, I am on my phone so I can't post pictures) I used Yakima control towers and cross bar, and then drilled it out exactly where I wanted my lights, and since the bar is hollow I ran the wiring inside so it looks really clean. My lights are mounted on the front of my cab because the control towers mount in the door, and I only have a two door. If yours is a four door though you could mount it at the back of the cab. I haven't seen anyone else do it like I did but I really like, and the set up cost a little over $100 and it is really light.
Reply With Quote
  #9
Old 03-20-2012
AIRBORNE_RANGER's Avatar
Member

Join Date: Mar 2012
Location: New Waterford N.S CDA
Posts: 92
Quote:
Originally Posted by FULLSCALE View Post
Why not draw something up and have it made?
I am having one made with this tubing, mandrel bent with stake pocket mounting, will fit around my tonneau cover.



will post pics once done.

Last edited by AIRBORNE_RANGER; 03-20-2012 at 08:23 PM.
Reply With Quote
  #10
Old 05-18-2012
HitchedPhireman's Avatar
Member

Join Date: Apr 2012
Location: Norman, OK
Posts: 9

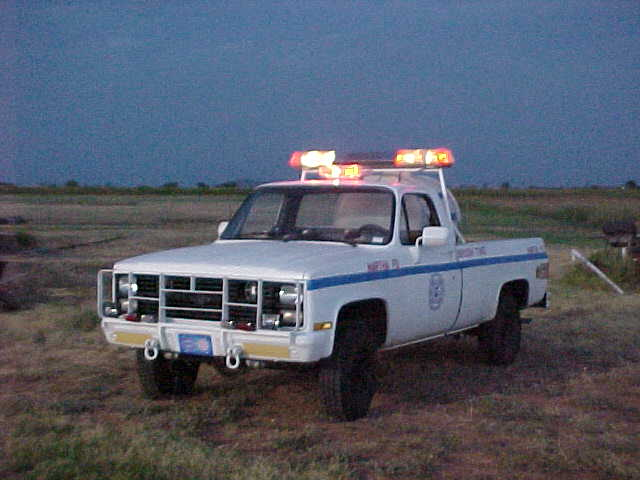

One of my firefighters built this for one of our brush rigs. It was super simple and held the 60-70lb light bar very well. These are the best pictures I could find.
Attached Images
File Type: bmp b2.bmp (900.1 KB, 434 views)
File Type: bmp b2-3.bmp (900.1 KB, 432 views)
File Type: bmp b2-2.bmp (900.1 KB, 312 views)
Reply With Quote
  #11
Old 05-18-2012
Member

Join Date: Jul 2011
Location: Edmonton
Posts: 35
If a headache rack is what your talking about. Here's the one I built, I'm going to mount a LED Light Bar on my headache rack. :)

Attached Thumbnails
Light Bar Mount?-405466_10150640736059553_501784552_10891636_2122722844_n.jpg
Reply With Quote
  #12
Old 05-19-2012
FMD's Avatar
FMD FMD is offline
Member
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811


I modified the mounting brackets so I could put my bed cover on.
Attached Thumbnails
Light Bar Mount?-img_5938.jpg
Reply With Quote
  #13
Old 05-19-2012
Member

Join Date: May 2010
Location: Madison
Posts: 347
danger-ranger, your headache rack is freaking sweet. I want one just like that, but with more lights!!!
Reply With Quote
  #14
Old 05-19-2012
Member

Join Date: Jul 2011
Location: Edmonton
Posts: 35
Quote:
Originally Posted by paganwars View Post
danger-ranger, your headache rack is freaking sweet. I want one just like that, but with more lights!!!
It's made out of 2x2x3/16'' tubing and 2x1/4'' flatbar for the window louvers.
Reply With Quote
  #15
Old 05-19-2012
ScottyD's Avatar
Member

Join Date: Jul 2011
Location: Caledon, Ontario
Posts: 101
Quote:
Originally Posted by FMD View Post


I modified the mounting brackets so I could put my bed cover on.

that looks awesome man!!
Reply With Quote
  #16
Old 12-29-2013
Member

Join Date: Dec 2013
Location: la grange, nc
Posts: 1
@ScottyD hey i know its been a min since this forum was last spoke in but i was wondering how exactly you were mounting the entire assembly to the bed of the truck. i really like your set up because i can still have my tool box there to. @Danger-Ranger FX4 you set up is great but the two bars going back from the assembly would block my tool box, i think its a sick set up though because thats the same year model i have.
