My first fabrication attempt v. skidplate

Im almost finished with it, all I need to do is get a steel plate to cover the whole thing (gotta wait to monday to go buy it)

the frame is all 1/2" steel tubing, and the brackets are made out of 3/16" steel. I'm not sure if im going to have to weld any more support in or not (im going with 1/8" steel for the plate) I was hanging on it. and pushing on it pretty hard last night, and it seemed it wanted to move the truck more than the frame, so i think with the steel plate on there, it should be pretty strong.

What do you guys suggest for a coating on it?

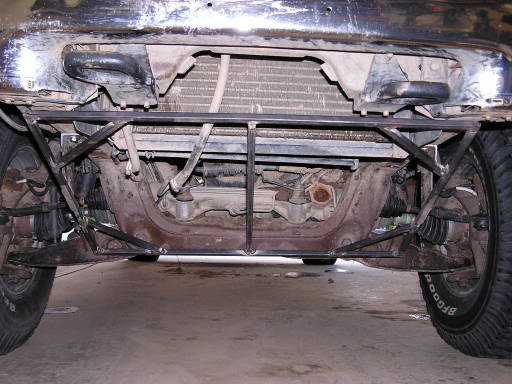

Name:  e34923ef.jpg
Views: 4
Size:  41.3 KB
Reply With Quote
  #2
Old 06-11-2006
a311fanam's Avatar
Member

Join Date: Dec 2004
Location: Westerly, RI
Posts: 2,006
looks big, i suggest getting it Line-x'ed, or you can get that truck bed coating at autozone
Reply With Quote
  #3
Old 06-11-2006
QWIKSNK's Avatar
Member
Thread Starter

Join Date: May 2006
Location: Grand Rapids, MI
Posts: 68
Quote:
Originally Posted by a311fanam
looks big, i suggest getting it Line-x'ed, or you can get that truck bed coating at autozone
it does look big, I should have made the brackets face outward instead of inward. I might grind them off and shorten it and try it again, I think that might actually make it easier to put on and off.
Reply With Quote
  #4
Old 06-11-2006
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
good start keep it goin hommie
Reply With Quote
  #5
Old 06-11-2006
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
maybe later you should incorporate a aftermarket bumper on top!
Reply With Quote
  #6
Old 06-11-2006
QWIKSNK's Avatar
Member
Thread Starter

Join Date: May 2006
Location: Grand Rapids, MI
Posts: 68
Quote:
Originally Posted by Red_Ak_Ranger
maybe later you should incorporate a aftermarket bumper on top!
I plan on fabbin up a bumper sometime this summer, I need to get a pipe bender first, i think ill redo the skid plate when i do the bumper
Reply With Quote
  #7
Old 06-11-2006
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
It does look a little large in the picture, but I don't wanna give my final opinion until I see a full front shot with the steel plate on. So far so good though.
Reply With Quote
  #8
Old 06-11-2006
QWIKSNK's Avatar
Member
Thread Starter

Join Date: May 2006
Location: Grand Rapids, MI
Posts: 68
Quote:
Originally Posted by Trigger01
It does look a little large in the picture, but I don't wanna give my final opinion until I see a full front shot with the steel plate on. So far so good though.
I should have a finished shot of it tommarow, then im going to have to do something about raising my bumper, i bent the bumper support using the front tow hooks rippin my buddy out of a mudhole (or getting ripped out, one of the two )
Reply With Quote
  #9
Old 06-12-2006
Kanoeking's Avatar
Member

Join Date: Nov 2005
Location: Murderapolis
Posts: 748
Quick tip....make sure that you allow air to enter that PS cooler or your R&P will fry...and BTW they're not rebuildable....
Reply With Quote
  #10
Old 06-12-2006
QWIKSNK's Avatar
Member
Thread Starter

Join Date: May 2006
Location: Grand Rapids, MI
Posts: 68

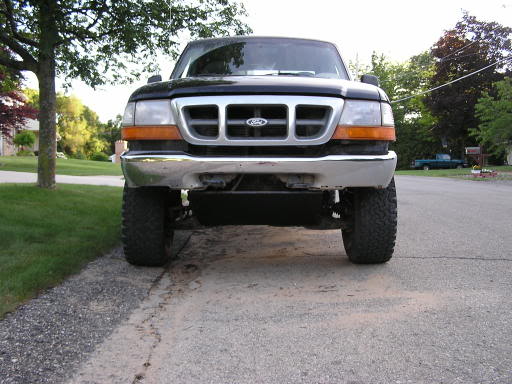

Here is a finished picture

Name:  571b3412.jpg
Views: 3
Size:  44.2 KB

looks pretty good for my first big welding project

I might try to fab up some new bumpers here pretty soon

PS. please ignore the fact that my bumper is still hanging low from the body lift, my bumper support is twisted, and i havent gotten around to straightening it out so I can make some brackets to raise it up.
Reply With Quote
  #11
Old 06-12-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
Sweet, looks real good, fits under the valance, too, I'm assuming. Don't worry about moving your bumper up, just build one that's big and beefy.
Reply With Quote
  #12
Old 06-13-2006
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Thats pretty big. Looks good though. Hope it works well for ya.
Reply With Quote
  #13
Old 06-13-2006
QWIKSNK's Avatar
Member
Thread Starter

Join Date: May 2006
Location: Grand Rapids, MI
Posts: 68
Quote:
Originally Posted by rolla_guy72
Sweet, looks real good, fits under the valance, too, I'm assuming. Don't worry about moving your bumper up, just build one that's big and beefy.
yea, it fits under the valance, but the clips are kinda broken on it, Its fallin off about 4 differnt times when I have been wheeling, so i finally said f-it, and now its sitting in the bed of my truck
Reply With Quote
  #14
Old 06-13-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
Did you weld it to the x-member or is it bolted on?
Reply With Quote
  #15
Old 06-13-2006
QWIKSNK's Avatar
Member
Thread Starter

Join Date: May 2006
Location: Grand Rapids, MI
Posts: 68
Quote:
Originally Posted by rolla_guy72
Did you weld it to the x-member or is it bolted on?
fully bolt on, I figured if i welded it on, and needed to work on the bottom side of the motor id be in for a treat grinding/breakin the welds
Reply With Quote
  #16
Old 06-13-2006
Kanoeking's Avatar
Member

Join Date: Nov 2005
Location: Murderapolis
Posts: 748
looks beefy
