well id post a pic of it semi mounted but my computer is crap.
anyways.
i found an ingenious(sp?) way to mount my skidplate!!
to the tow hooks!
i even made a lil sketch for you guys.
tell me if i went a lil overboard with the crosses or not, just tryin to make it atleast a lil strong!
n the pic looks like crap but u get the idea

red=bolts
blue=hangers or w.e.

Name:  ljl.jpg
Views: 5
Size:  9.8 KB
Reply With Quote
  #27
Old 04-01-2008
rstangboi's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Name:  04-01-08_1724.jpg
Views: 4
Size:  33.5 KB
Name:  04-01-08_1734.jpg
Views: 5
Size:  19.9 KB
Reply With Quote
  #28
Old 04-01-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Icon14

Looks great!
Reply With Quote
  #29
Old 04-01-2008
01 ranger 4x4's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Vacaville, CA
Posts: 1,100
veeerrrryyy nice!!!!!!! (with Borat accent) hahaha looks good tho
Reply With Quote
  #30
Old 04-02-2008
rstangboi's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
so..... i finished!!!!
hangers touch the radiator frame.....so ill fix it later

Name:  100_1659.jpg
Views: 6
Size:  84.8 KB

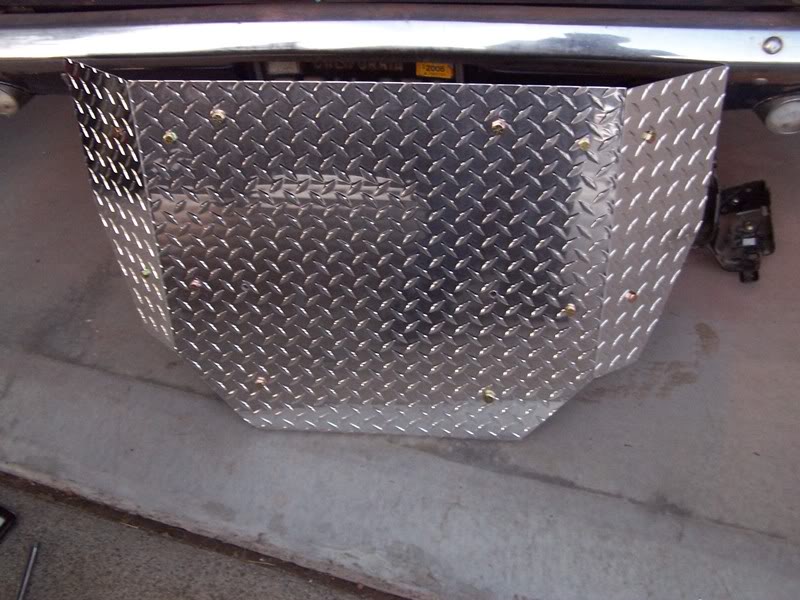

Name:  100_1662.jpg
Views: 6
Size:  94.0 KB
Name:  100_1661.jpg
Views: 7
Size:  44.5 KB

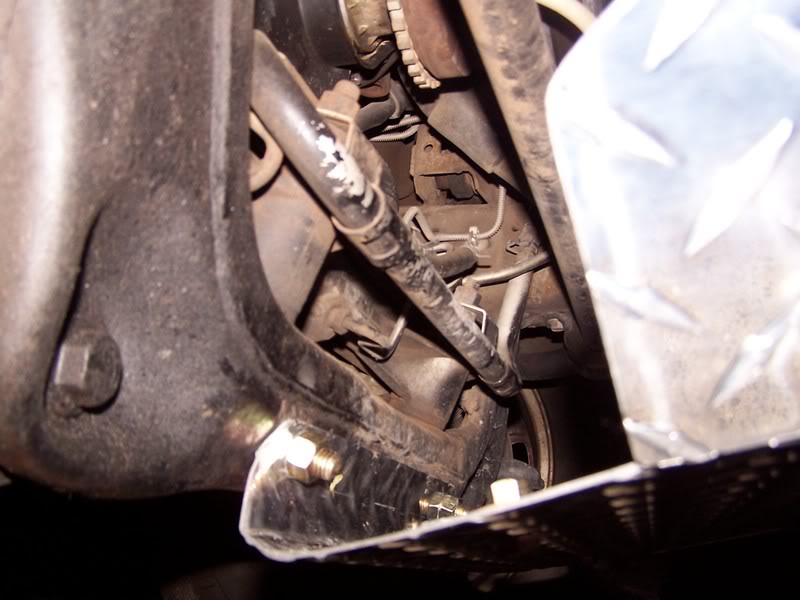

Name:  100_1664.jpg
Views: 6
Size:  61.5 KB
Name:  100_1667.jpg
Views: 7
Size:  93.0 KB
Name:  100_1663.jpg
Views: 7
Size:  64.0 KB
Reply With Quote
  #31
Old 04-02-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Hows the tire clearance?

Looks AWESOME!
Reply With Quote
  #32
Old 04-02-2008
rstangboi's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
uh, ill check tomorrow lol.
drove it around and no rubbing, so atleast i know it clears!
but thanks
Reply With Quote
  #33
Old 04-03-2008
01 ranger 4x4's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Vacaville, CA
Posts: 1,100
Quote:
Originally Posted by rstangboi View Post
uh, ill check tomorrow lol.
drove it around and no rubbing, so atleast i know it clears!
but thanks
ya until you get some bigger tires(255s) i hope it all works out good tho
it looks good bigger than i thought it would be
Reply With Quote
  #34
Old 04-03-2008
rstangboi's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by 01 ranger 4x4 View Post
ya until you get some bigger tires(255s) i hope it all works out good tho
it looks good bigger than i thought it would be
ya, if i ever have issues i can just wack out more, or just take off the sides period.......i love how i have options lol
Reply With Quote
  #35
Old 04-03-2008
01 ranger 4x4's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Vacaville, CA
Posts: 1,100
yep def looks good thats kinda how im makin my but only using one 24x24 piece you must have a lot of leftover diamond plate
Reply With Quote
  #36
Old 04-03-2008
rstangboi's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
well thatll be TOO easy!!
haha
and ya, like half a sheet or so?
Reply With Quote
  #37
Old 04-03-2008
Member

Join Date: Jul 2005
Location: College Station
Posts: 2,781
Looks good but does not look very strong.. I think it needs more of a frame behind the diamond plate.. and do you have any lock nuts on there? vibrations could make the bolts come lose and cause problems..
Reply With Quote
  #38
Old 04-04-2008
rstangboi's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by FX2.3 View Post
Looks good but does not look very strong.. I think it needs more of a frame behind the diamond plate.. and do you have any lock nuts on there? vibrations could make the bolts come lose and cause problems..
like i said, temporary.
im almost out of aluminum n crap so i gotta get more.
and i was actually thinkin of that just a minute ago...
Reply With Quote
  #39
Old 04-07-2008
LuckyRanger13's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Santa Fe, TN
Posts: 554
Quote:
Originally Posted by rstangboi View Post
so..... i finished!!!!
hangers touch the radiator frame.....so ill fix it later






On the fourth picture, where the skid plat comes back and attaches w/ bolts to the ?cross member?, did ya have to drill? Or did your truck come w/ holes there? What size bolts did ya use?

Very good design with the skid plate btw. Beautifully done.
Reply With Quote
  #40
Old 04-07-2008
Blackhawk's Avatar
Member

Join Date: Jun 2007
Location: WI
Posts: 586
hope you don't plan on sliding rocks with that cuz it doesn't look very strong.
Reply With Quote
  #41
Old 04-07-2008
rstangboi's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by LuckyRanger13 View Post
On the fourth picture, where the skid plat comes back and attaches w/ bolts to the ?cross member?, did ya have to drill? Or did your truck come w/ holes there? What size bolts did ya use?

Very good design with the skid plate btw. Beautifully done.
there were two holes there that i bored out to fit the bolts.....idk wat size....
and thanks
Reply With Quote
  #42
Old 04-07-2008
rstangboi's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by Blackhawk View Post
hope you don't plan on sliding rocks with that cuz it doesn't look very strong.
TEMPORARY F**KN MOUNTS!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!

AKLJFLSKJFSDLKFJS;JKFSD;

its cuz i dont have the time or money right now to go buy more aluminum!!
once i DO get it, its also gunna be attached to he frame in like 4 spots total or so

as for now, its not like im goin offroad, so its fine with me atm.
Reply With Quote
  #43
Old 04-23-2008
Member

Join Date: May 2007
Location: Reynosa, tamps, mexico
Posts: 4
It looks great even if it's mounted temporary i mean if the skid plate breaks or bends it's alright i mean that's why you got it , could you please share plans and measures?
thanks
