R-F standard for articulation ramp

we're gonna make an articulation ramp. I know there is a "score" that can be assigned to your run. I wonder if anyone else has one, and if so what degree do you have? It makes sense to keep the same angle so the scores have a meaning to them.

Looks like 20, 23, and 30 degree are what is out there. It's looking like 30 degrees is the newest style.

Comments?
Reply With Quote
  #2
Old 10-24-2007
Alon's Avatar
Member
iTrader: (13)

Join Date: Jun 2004
Location: Long Beach, CA
Posts: 2,555
adjustable?
Reply With Quote
  #3
Old 10-24-2007
outdoorsman's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
I'm a member of a local Jeep club. Check out this thread. These guys are hardcore and know their stuff.......

download this excel spread sheet, it's got some information.............
http://www.kreationkrawlers.com/AZVJC/RTI%20Ramp1.xls


http://www.virtualjeepclub.com/showt...light=rti+ramp

Last edited by outdoorsman; 10-24-2007 at 12:09 AM. Reason: fixed link
Reply With Quote
  #4
Old 10-24-2007
graniteguy's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Thanks bryan. That will help. With the reading I did, it looks like the number can be converted from one angle to another. As in a 300 on a 23 degree would equal a 250 on a 30 degree (not real numbers, but....)
Reply With Quote
  #5
Old 10-24-2007
outdoorsman's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Yup, that makes sense to me. It's all in the numbers..............
Reply With Quote
  #6
Old 10-24-2007
Member

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798

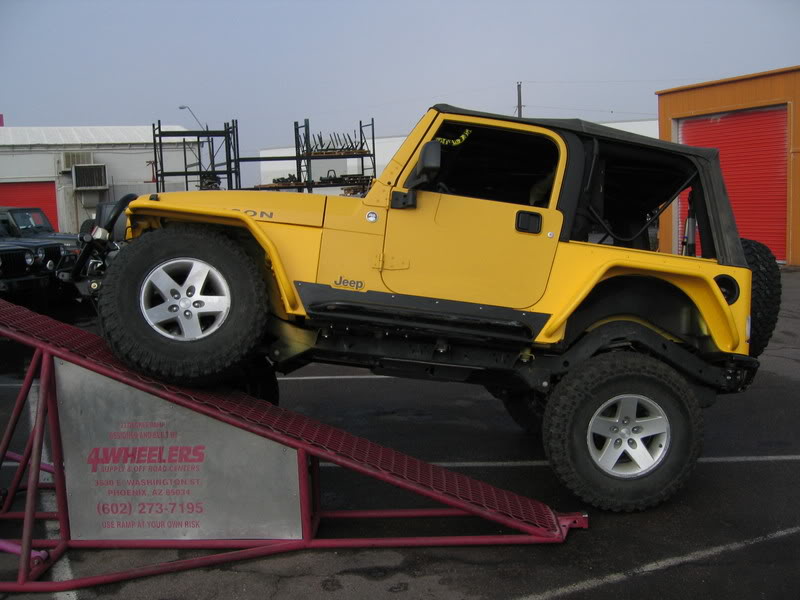

ooo looks portable.... maybe ill make one and haul it to ranger meets hahah.

Name:  IMG_2465.jpg
Views: 3
Size:  69.3 KB
Reply With Quote
  #7
Old 10-24-2007
graniteguy's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
portablity seems easy enough to do. The tall side has an axle. Once the wheels are removed it sits flat on the ground. You can see a square hitch on the front of that pic.
Reply With Quote
  #8
Old 10-24-2007
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029

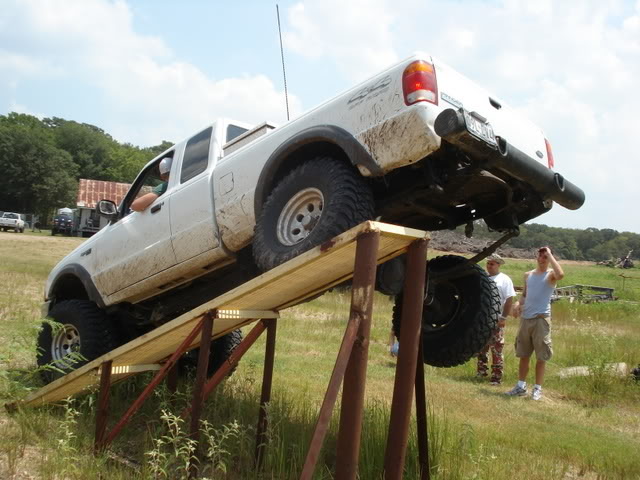

luckily matt isn't here to go up in reverse haha

Name:  BVORR811-12006.jpg
Views: 7
Size:  70.2 KB
Reply With Quote
  #9
Old 10-24-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
^^that is just dumb......that truck could have easily rolled over...
Reply With Quote
  #10
Old 10-24-2007
graniteguy's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
lol. Matts not skeered of anything.

Funny you mention him. We discussed doing this a while back.
Reply With Quote
  #11
Old 10-24-2007
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
Those ramps scare me driving up them... I always feel like I'm gonna drive off of it.

Plus I always go to the local 4x4 shop and I can only get about 1ft up the ramp because it sits on gravel and I'm 2wd haha... L/S doesn't even help.
Reply With Quote
  #12
Old 10-24-2007
rngprerunner's Avatar
Member

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Google RTI or Ramp Travel Index... should tell you everything you ever needed/wanted to know...
Reply With Quote
  #13
Old 10-24-2007
Urandaman's Avatar
Member

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
hahaha damn matt is crazy! now i just want to see him go that high driving up it!! hahaha
Reply With Quote
  #14
Old 10-24-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
he could do that cause the 98+ front end is so stiff and only allows so much articulation.
Reply With Quote
  #15
Old 10-24-2007
Member

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
im tempted..... im allready thinking how to do wheels on it and makeing it adjustable angle.

muhaha
Reply With Quote
  #16
Old 10-24-2007
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
Quote:
Originally Posted by redranger4.0
he could do that cause the 98+ front end is so stiff and only allows so much articulation.
and he is locked up front so both tires were pushing him up.
Reply With Quote
  #17
Old 10-24-2007
outdoorsman's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
A local 4x4 shops ramp (same one with the hitch in my above post)
23 Ramp Technical information:
1.75"x1.20" wall steel tube
Bright red powder coat finish
4 link cantilever coil spring suspension
Dual Rancho RS9000 shocks per wheel
Rancho coil springs
17" of useable wheel travel
Alloy Beadlock wheels
Super Swamper tires
33x15.5x15 TSL-SX
Jeep spindles with Warn hub conversion

Name:  rampbig.gif
Views: 4
Size:  12.5 KB

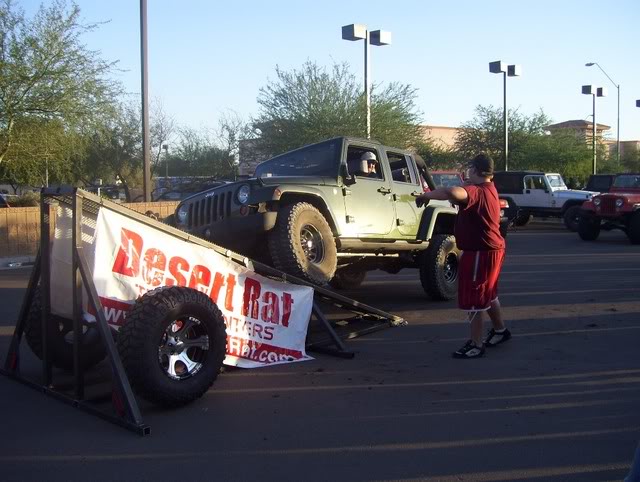

Since a few guys like DCs here you go! This is at a Jeep dealership. A guy from the club works there so they had a jamboree thing with over 100 jeeps that showed up, then they went wheeling. This is their ramp. The wheels are for show and not connected to a real axle like the above ramp.

Name:  100_0448.jpg
Views: 4
Size:  73.9 KB

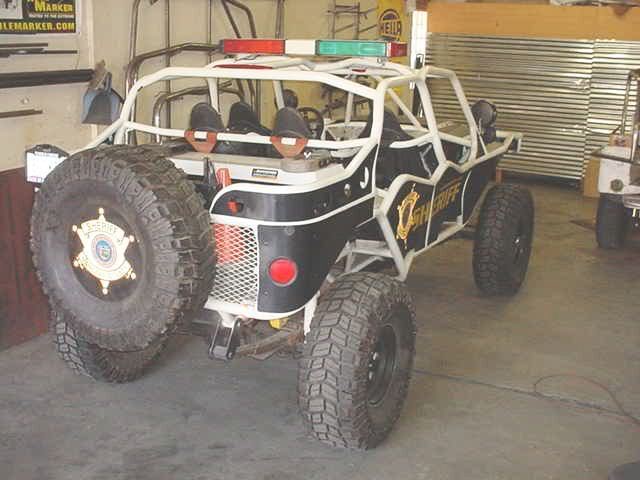

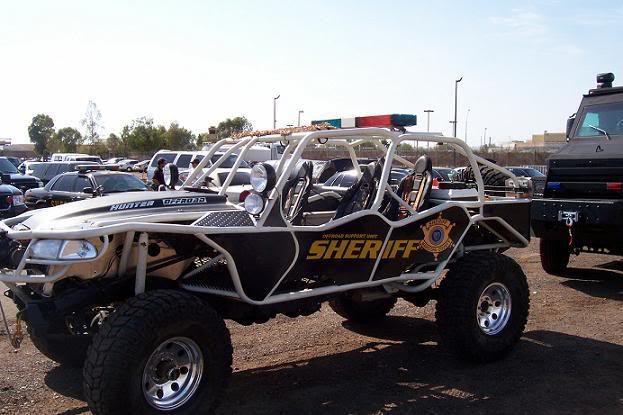

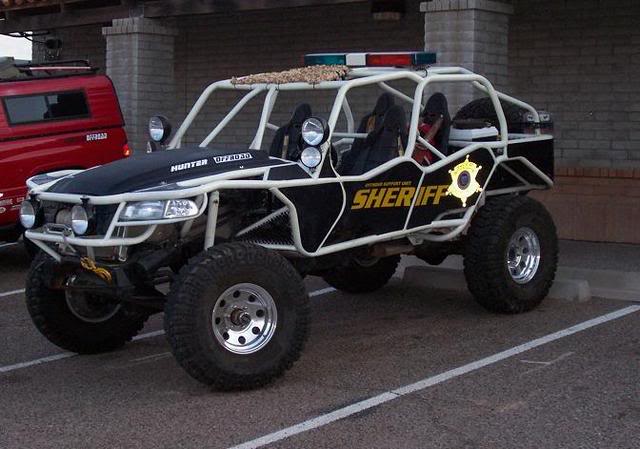

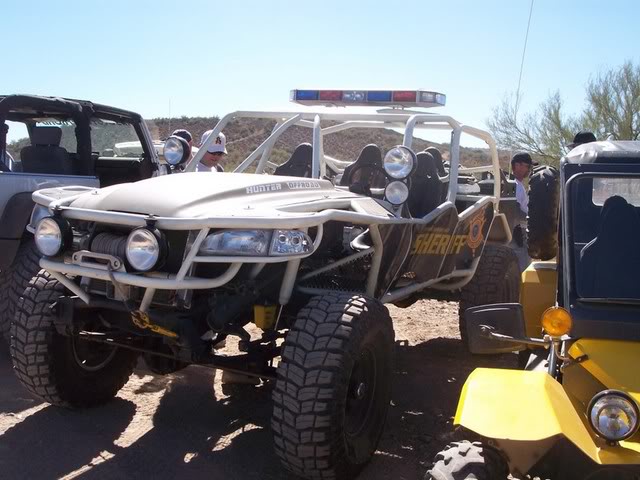

Here is a Sheriff's rig. It's real. I just had to post it because it's bad ***! It was at one of the local trail cleanups. I searched and found more pics.
Name:  100_3590.jpg
Views: 6
Size:  62.4 KB

Name:  Z2Rearhi9407.jpg
Views: 6
Size:  39.9 KB

Name:  Zeuskickoff7-20.jpg
Views: 4
Size:  51.9 KB

Name:  ZeusGilaSub.jpg
Views: 6
Size:  53.7 KB
Reply With Quote
  #18
Old 10-24-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
^ Sick!
Reply With Quote
  #19
Old 10-24-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Reply With Quote
  #20
Old 10-25-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by lifted97ranger
^^that is just dumb......that truck could have easily rolled over...
screw you.. you're jealous.. here you go again with bashing everyones **** again

Quote:
Originally Posted by Urandaman
hahaha damn matt is crazy! now i just want to see him go that high driving up it!! hahaha


Quote:
Originally Posted by redranger4.0
he could do that cause the 98+ front end is so stiff and only allows so much articulation.
locker like casey said, no other truck there could have i think.

and if i had the sway bar off it woudla been a little scary i think

Quote:
Originally Posted by rolla_guy72
Those ramps scare me driving up them... I always feel like I'm gonna drive off of it.

Plus I always go to the local 4x4 shop and I can only get about 1ft up the ramp because it sits on gravel and I'm 2wd haha... L/S doesn't even help.
you can do what whats his face from houston did, hit it with speed, that was pretty funny

Quote:
Originally Posted by graniteguy
lol. Matts not skeered of anything.

Funny you mention him. We discussed doing this a while back.
i loved it, i need to go do it again while i still have the IFS
damn right i ain't never skured... until i get near rolling, that feeling sucks
Reply With Quote
  #21
Old 10-27-2007
badkarma's Avatar
Member

Join Date: Nov 2004
Location: Austin Texas
Posts: 171
Reply With Quote
