some heavy metal action

well after i built my front tow hooks crossmember and added the reciver to it. i wanted to make another unique thing to put in it.

ive got my hook i made. and ive used a few times. mostley slam it on all the pot holes here this damn state.






heres my new creation. i used a bigrig leaf spring U bolt. shortend up a bit and bent to fit the 2" square stock. all welded with SMAW 7018 around 120amps. no its not plated up. that all solid welds. spent 4 hours welding it. and 6 hurs grinding it with a flap disk 60grit wheel to what it is now. also the end is capped with a 1/4" steel square i cut for looks. it has hole drilled so it can me mounted flat or vertical. and makes a good step.






Last edited by Old Black Cat; 09-30-2007 at 11:16 PM.
Reply With Quote
  #2
Old 09-30-2007
Alon's Avatar
Member
iTrader: (13)

Join Date: Jun 2004
Location: Long Beach, CA
Posts: 2,555
looking good....

wheres mine?
Reply With Quote
  #3
Old 09-30-2007
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
looks uhhhhh, quite strong!
Reply With Quote
  #4
Old 09-30-2007
DaGGer's Avatar
Member

Join Date: Mar 2006
Location: East Windsor, CT
Posts: 919
wow. Holy welding wire batman. You must have went through so much wire for that thing.
Reply With Quote
  #5
Old 10-01-2007
Legion's Avatar
Member

Join Date: Mar 2007
Location: Austin, TX
Posts: 288
youll bend your frame long before you break that thing
Reply With Quote
  #6
Old 10-01-2007
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by DaGGer
wow. Holy welding wire batman. You must have went through so much wire for that thing.
SMAW......sheilded metal arc welding. stick electrodes. old skol and dirty. i dont cry about chipping slag.

Quote:
Originally Posted by Legion
youll bend your frame long before you break that thing
yup.....to bad my dads 05 2 axel peterbilt truck dont have a 2" reciver. id make one up and try and break it.
Reply With Quote
  #7
Old 10-01-2007
Member

Join Date: Feb 2007
Location: Spokane, Wa
Posts: 146
Quote:
i dont cry about chipping slag.
wire wheel on a small angle grinder FTW!!!
Reply With Quote
  #8
Old 10-01-2007
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029

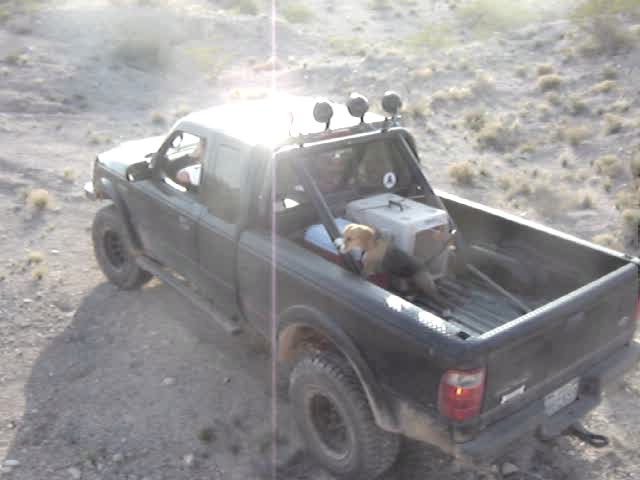

Great minds think alike, I was too lazy to go take a pic of mine so I found a video still where I had it in. Exact same thing just not welded as much as yours haha and they do make a great step.

Name:  cap001.jpg
Views: 2
Size:  27.2 KB
Reply With Quote
  #9
Old 10-01-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
jesus those are beefy!

you wanna make me one?
Reply With Quote
  #10
Old 10-01-2007
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by 99ranger4x4
jesus those are beefy!

you wanna make me one?
eh, not really dude. shipping would be outrageous.
Reply With Quote
  #11
Old 10-01-2007
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by camodown
Great minds think alike, I was too lazy to go take a pic of mine so I found a video still where I had it in. Exact same thing just not welded as much as yours haha and they do make a great step.


looks like a photochop to me. jk
Reply With Quote
  #12
Old 10-01-2007
KARPE's Avatar
Member

Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
Hellraiser did it
Reply With Quote
  #13
Old 10-01-2007
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
Quote:
Originally Posted by ranger
looks like a photochop to me. jk
ya ya

3:38 you can see me use it
http://www.youtube.com/watch?v=RX4PAHy00ME

2:40 you can see that actual video
http://www.youtube.com/watch?v=1u8VtTX2Tzs

Is that enough proof haha
Reply With Quote
  #14
Old 10-01-2007
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Wow.
Reply With Quote
  #15
Old 10-07-2007
country346's Avatar
Member

Join Date: Apr 2007
Location: East , Texas
Posts: 459
wow out at the shops they dont even use that well built of shackles to move those modules that weigh 5-15 tons , I think it looks awesome pluse its universal anything from a ford ranger up to a deisil half track , or bradly possibly an abrams .
Job well done
