*Urgent, Hole in Firewall Sound

I drilled through my firewall to ground a switch for my airhorns and when I start my truck there's a loud air sound like its escaping from somewhere but when I step on the brakes really hard the sound goes away, my brakes still work. What did i screw up?

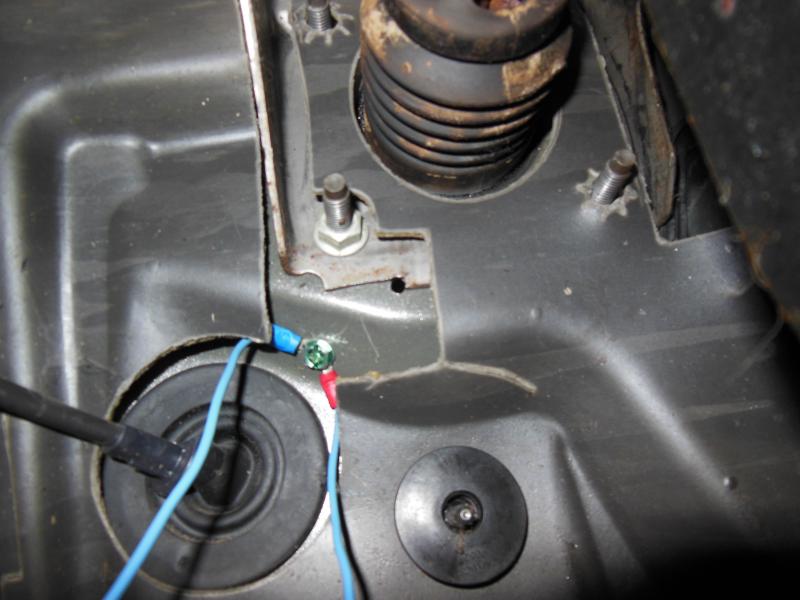

It's the hole just under the steering and above the ground:
Attached Thumbnails
*Urgent, Hole in Firewall Sound-dscn7210_zpsfcf8247b.jpg
Reply With Quote
  #2
Old 06-02-2013
atrocity's Avatar
Member
Thread Starter

Join Date: Dec 2009
Location: 954Fl
Posts: 547
Attached Thumbnails
*Urgent, Hole in Firewall Sound-th_img_1463_zps81811dab.jpg
Reply With Quote
  #3
Old 06-02-2013
logan03CO's Avatar
Member

iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Just guessing here - but a hole in the brake booster?

If there is a leak in the diaphragm, I assume it would do that.

The brake booster diaphragm works on vacuum...

EDIT: Yep, those four larger bolts are for the brake booster. I'm guessing your drill went right into it.

Last edited by logan03CO; 06-02-2013 at 04:58 PM.
Reply With Quote
  #4
Old 06-02-2013
atrocity's Avatar
Member
Thread Starter

Join Date: Dec 2009
Location: 954Fl
Posts: 547
Quote:
Originally Posted by logan03CO View Post
Just guessing here - but a hole in the brake booster?

If there is a leak in the diaphragm, I assume it would do that.

The brake booster diaphragm works on vacuum...

EDIT: Yep, those four larger bolts are for the brake booster. I'm guessing your drill went right into it.
Yup stupid rushed mistake.

I drove it around the block and the braking was fine but If i slammed all the way down on the brakes my rpms would drop and truck would almost stall
Reply With Quote
  #5
Old 06-02-2013
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Would it be possible to patch the brake booster?
Maybe JB weld in the hole or weld on a small patch plate?

I'm not too sure about how thick or thin the material is making up the walls of the booster.
Reply With Quote
  #6
Old 06-03-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
It sounds like you might have to replace the brake booster.
Reply With Quote
  #7
Old 06-03-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
id replace it, and double check next time you run a ground and before you drill.
Reply With Quote
  #8
Old 06-04-2013
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
iTrader: (6)

Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,054
You could have avoided the hole to begin with. I just poked a little hole in the grommet under the engine fuse box and ran wires for my sub, back-up camera, and off road lights through it. Much easier.
