08 intake mod

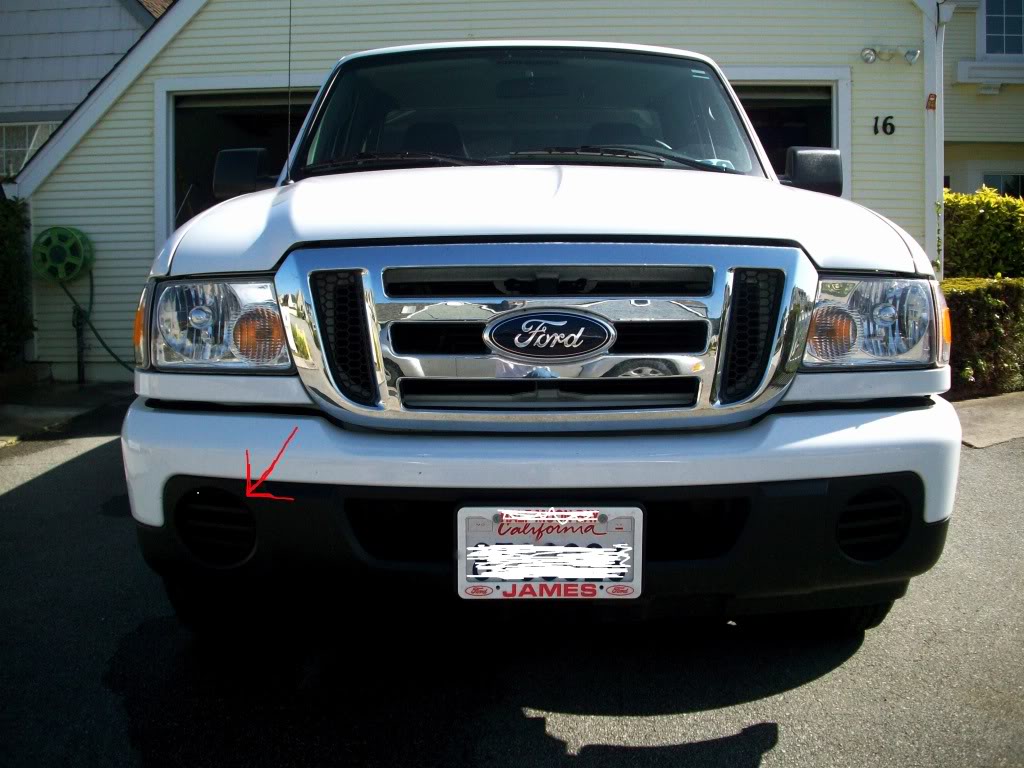

I went out to Ace today and bought 5ft of 4" dryer vent tubing stuff for $10. My truck is a 08 xlt scsb 2.3 with a manual. So the 08+ bumpers have huge round plastic trim plugs in the bumper to cover where fog lights go on other models (4x4's).

Name:  100_2086.jpg
Views: 1
Size:  129.8 KB

I removed the passenger side trim cover and then trimmed some of the plastic to open the hole in the bumper almost completely. not much trimming I just took a blade off a hacksaw and held it with my hands because its such an awkward area to get a blade into. I kept 2 of the 3 mounting holes that the trim piece bolts into so i can reverse the mod and not destroy a clean 08 bumper. The vent tube got zip tied and then I threw a shot of black spray paint in the vent tube so it wouldnt look worse then the trim I removed.

Next I had to move the harness wires that run to the horn which is split off from the head light harness wires and runs down along the rad core support then all the way up behind the grill and to the horn. I unplugged it then pulled it out from behind the grill and ran it over top. This also pulled the wires from the head lights up and opened up space for the vent tube.

With convincing I snaked the vent hose up behind the headlight and through the area where the intake silencer use to be.

I removed the stock air box and with a dremel open up the stock size opening under the air filter. I reinstalled the air box and slid the dryer tube threw the hole into the air box.

I took it out on the pch and it seems to have increased throttle response a little doing a 3rd gear pull at wot from 40 before and after. Im sure it probably doesnt really do anything but it only cost $10 so ill leave it for a bit and drive around.



and no i have a go phone so i dont have a phone cam to take pics and my sister went away for the week and took our camera so i wont have picture proof for a minute
Reply With Quote
  #2
Old 12-28-2009
annguyen1981's Avatar
Member
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
Seriously?

That's a LOT of work for either no change or decreased performance.
Reply With Quote
  #3
Old 12-28-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Quote:
Originally Posted by annguyen1981 View Post
Seriously?

That's a LOT of work for either no change or decreased performance.
x2
Reply With Quote
  #4
Old 12-28-2009
annguyen1981's Avatar
Member
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
I still can't believe I read through all that... for nothing.
Reply With Quote
  #5
Old 12-28-2009
redranger04g's Avatar
Member

iTrader: (2)

Join Date: Apr 2007
Location: Placentia, CA
Posts: 928
maybe if you had exhaust too it might help. but on a 2.3 you might have hindered the performance.
Reply With Quote
  #6
Old 12-28-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
UD pulleys?
Reply With Quote
  #7
Old 12-28-2009
Member
Thread Starter

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
i know when i started that i prolly wouldnt gain a horse power out of it and even if i did i wouldnt know the difference. im not blocking anything and the inlet to the air box itself being enlarged wont do enough to actually hurt performance so im not worried about negetive effects. even with 2.5" mandral exhaust and a flow thru muff or under drive pulleys it wouldnt be any faster then stock. i did it just to do it
Reply With Quote
  #8
Old 12-28-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
its a start. I thought about doing that a long time ago but didn't see enough room between the grill & header panel area. can't wait to see more pics.
Reply With Quote
  #9
Old 03-19-2010
VicRattlehead's Avatar
Member

Join Date: Jun 2007
Location: Channahon, IL
Posts: 46
so explain how letting fresh air into the airbox is a bad thing? please. im interested in this.
Reply With Quote
  #10
Old 03-19-2010
BettyVo7Ranger's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: Niagara Falls, New York
Posts: 695
Can i see some pictures of this please??
Reply With Quote
  #11
Old 03-19-2010
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
I will never understand how people are so damn cheap that they start using dryer ducting and **** to try on their vehicles.
Reply With Quote
  #12
Old 03-19-2010
VicRattlehead's Avatar
Member

Join Date: Jun 2007
Location: Channahon, IL
Posts: 46
Quote:
Originally Posted by korey89 View Post
I will never understand how people are so damn cheap that they start using dryer ducting and **** to try on their vehicles.
ok mr rockefeller, what should we use?
Reply With Quote
  #13
Old 03-19-2010
Rolldogg's Avatar
Member

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
*EDIT*

Just going to be polite, and smile

:)
Reply With Quote
  #14
Old 03-19-2010
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Quote:
Originally Posted by VicRattlehead View Post
ok mr rockefeller, what should we use?
nothing because it is pointless and does nothing
Reply With Quote
  #15
Old 03-20-2010
RLong31's Avatar
The Ban Hammer
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
your face is pointless... ooo, burn
Reply With Quote
  #16
Old 03-20-2010
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
lol
Reply With Quote
  #17
Old 03-20-2010
BettyVo7Ranger's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: Niagara Falls, New York
Posts: 695
Any pic's of the intake itself???
Reply With Quote
  #18
Old 03-21-2010
Member

Join Date: Mar 2010
Location: AR
Posts: 16
Make sure the hose doesn't collapse when you rev the motor.
