2.3 Gas Mileage/ Engine Question

im only getting 17-20 MPG in city and my exaust smells very rich with unburnt fuel. The exaust is stock as far as i know. Any thoughts?
Reply With Quote
  #2
Old 06-13-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
i've got a 96 2.3 5spd and
i'm getting around 29mpg....no B.S...i just filled up today...i did the math
133 miles driven and i topped off with about 4.6 gallons
i got 28.6 mpg with a mix of city and highway driving

i'm waiting for the Branson trip to see some awesome mileage

all i've got is a custom air intake and custom side exhaust exiting before the rear wheel
along with New plugs and wires

i'd say check your plugs and wires....for some reason you're not burning all your fuel....
once i changed mine last week my mileage jumped from 23 to the 28 stated above

plug gap should be at .044
mine were burned well over .060
Reply With Quote
  #3
Old 06-13-2009
Grot's Avatar
Member
Thread Starter

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122
i did my plugs and wires just under 6k ago.
im a 5spd and even babying it as much as possible i only got 26.
Reply With Quote
  #4
Old 06-13-2009
07rangersport's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Maple Ridge CANADA
Posts: 800
o2 sensors?
Reply With Quote
  #5
Old 06-13-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
hmmm.....

have you tried the airbox mod?
let some more air in that beast

i noticed a huge difference in power once i modded mine.

you may even want to try Seafoaming it.
3 cans....1 in the oil, 1 in the gas and 1 sucked into the brake boost line

it helps clean up all the gunk built up in the engine
Reply With Quote
  #6
Old 06-13-2009
Grot's Avatar
Member
Thread Starter

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122
Im getting CEL codes that i have insuffient EGR flow, but i dont think that would effect my mileage, would it? Also gives a code that says something about exceding factory emissions standards.
Reply With Quote
  #7
Old 06-13-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
Quote:
Originally Posted by 07rangersport View Post
o2 sensors?
^^ that was my next suggestion
Reply With Quote
  #8
Old 06-13-2009
Grot's Avatar
Member
Thread Starter

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122
Could you direct me to the Airbox mod you are talking about?
Reply With Quote
  #9
Old 06-13-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
you basically just drill more holes into your airbox to allow more air flow into the filter....

my truck had a FRAM aftermarket kit when i bought it which was crap...it used a smaller air inlet than the STOCK housing
so i did a little modifying on the same idea and i noticed MUCH improved throttle response and gas mileage
Reply With Quote
  #10
Old 06-14-2009
Grot's Avatar
Member
Thread Starter

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122
ive attached a cone filter to the MAF (or whatever ford calls it) which does the same thing.
The intake still has the silencer in it tho as i cannot find a correct size pipe to replace it.
Reply With Quote
  #11
Old 06-14-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Take the silencer out, reach down inside it with a pair of needle nose pliers, and pull the "torpedo" out. That will leave you with a straight through tube. Quick, easy, and worth it.
Reply With Quote
  #12
Old 06-14-2009
Grot's Avatar
Member
Thread Starter

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122
Mine isnt like that. Its like a muffler.

I will post pics tomorrow if you dont know what im talking about.
I need 7" of 2 3/4" pipe to replace it.
Reply With Quote
  #13
Old 06-14-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Hmm, I've done it to a 92 and a 94, I assumed yours would be the same with the lima 2.3.
Reply With Quote
  #14
Old 06-14-2009
Grot's Avatar
Member
Thread Starter

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122

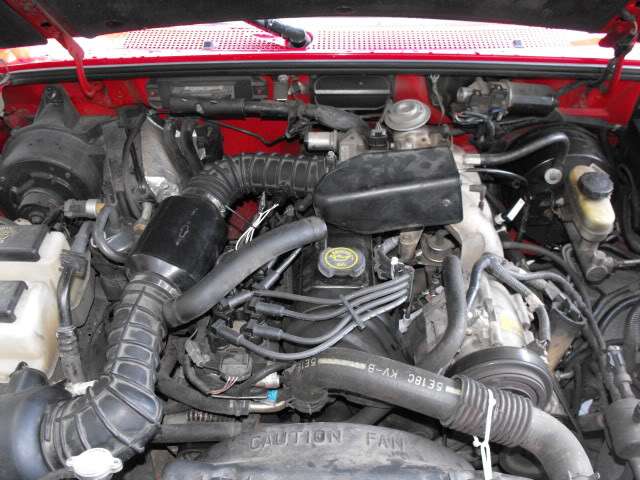

Heres my bay, intake system and close ups of the silencer.

Name:  DSCF0453.jpg
Views: 8
Size:  84.7 KB
Name:  DSCF0455.jpg
Views: 9
Size:  73.2 KB
Name:  DSCF0456.jpg
Views: 9
Size:  69.8 KB
Name:  DSCF0457.jpg
Views: 11
Size:  31.9 KB
Name:  DSCF0458.jpg
Views: 7
Size:  78.5 KB
Name:  DSCF0459.jpg
Views: 7
Size:  103.5 KB

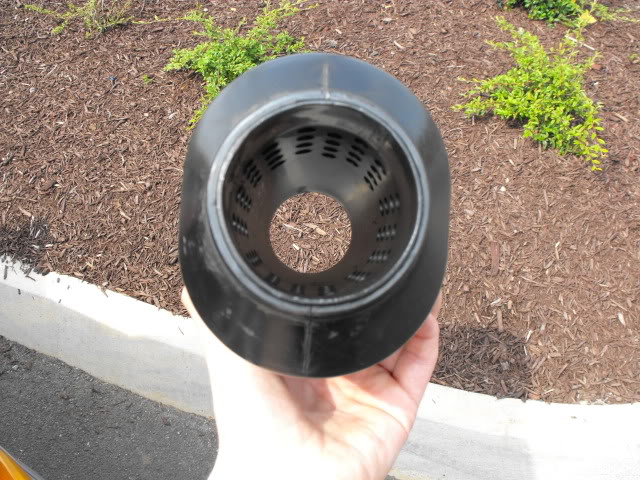

The intake end of the silencer bottlenecks the air, the outlet end is the full width. Could breathe better if i could find a replacement. Was thinking a piece of pipe from an exaust shop.
Reply With Quote
  #15
Old 06-14-2009
Grot's Avatar
Member
Thread Starter

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122
any one else have this intake?
Reply With Quote
  #16
Old 06-14-2009
Grot's Avatar
Member
Thread Starter

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122
up
Reply With Quote
  #17
Old 06-14-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Yah, that is different from what I'm used to seeing. I see what you mean about it. A piece of exhaust tubing would work if you can get the right diameter, or, you can go redneck with a piece of PVC pipe.
Reply With Quote
  #18
Old 06-14-2009
Grot's Avatar
Member
Thread Starter

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122
looked for a piece of PVC only comes in 2" 2.5" 3" need 2.75"
Reply With Quote
  #19
Old 06-14-2009
DeMar17's Avatar
Member

Join Date: Apr 2009
Location: Eureka, CA
Posts: 106
ok well im a 3.0 5 speed and only get 13-14 in town. i guess i really have something wrong! anybody know why?
Reply With Quote
