Aluminum Expo Diff Cover Finished!

Name:  570375559_2023677049_0.jpg
Views: 4
Size:  26.8 KB

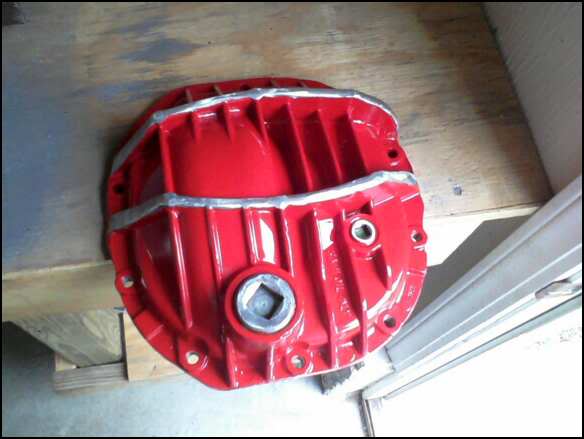

Thar she be. All painted up in high heat "Ford Red" paint. Looks like Vermillion to me. Oh well. I ended up using a bunch of cutting wheels with my grinder and a sawzall to get it where I was ok with it. Then I used a grinder wheel and a high grit sanding wheel to shave it down. It's not perfect but the wings are gone at least and it looks like a normal diff cover.

So what do you think?

BTW what size is that drain plug socket? The little one is 3/8 so the big one be like 2 or 3 inch.
Reply With Quote
  #2
Old 09-26-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
So what year do these come off of?
Reply With Quote
  #3
Old 09-26-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
expo's with irs. i do belive 03 and up?
Reply With Quote
  #4
Old 09-26-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
02 and up. close!

it was alot of work get those wings off. i wish i would have been more patient with it. maybe practice? i took a little too much off the one side.
Reply With Quote
  #5
Old 09-26-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks good!
Reply With Quote
  #6
Old 09-26-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Lookin good!
Reply With Quote
  #7
Old 09-26-2010
94Ranger355's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: Athens, TN
Posts: 616
Icon14 Uh huh..............

Quote:
Originally Posted by Masteratarms93 View Post

Thar she be. All painted up in high heat "Ford Red" paint. Looks like Vermillion to me. Oh well. I ended up using a bunch of cutting wheels with my grinder and a sawzall to get it where I was ok with it. Then I used a grinder wheel and a high grit sanding wheel to shave it down. It's not perfect but the wings are gone at least and it looks like a normal diff cover.
So what do you think?
BTW what size is that drain plug socket? The little one is 3/8 so the big one be like 2 or 3 inch.
=====================================

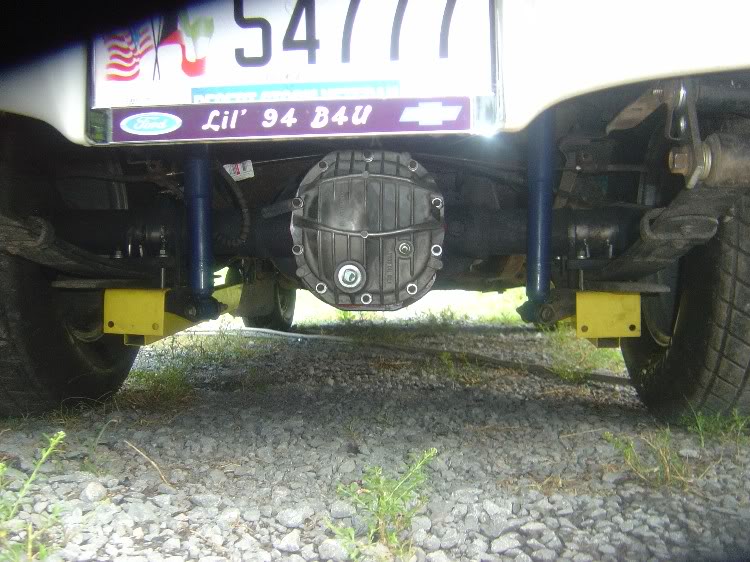

Looks familiar with the exception of the red paint.........I just had mine bead blasted after I cut the ears off via a wood blade in my sawsall:
Name:  edited94ProStreetRanger7-4-107.jpg
Views: 5
Size:  94.5 KB
Reply With Quote
  #8
Old 09-27-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685

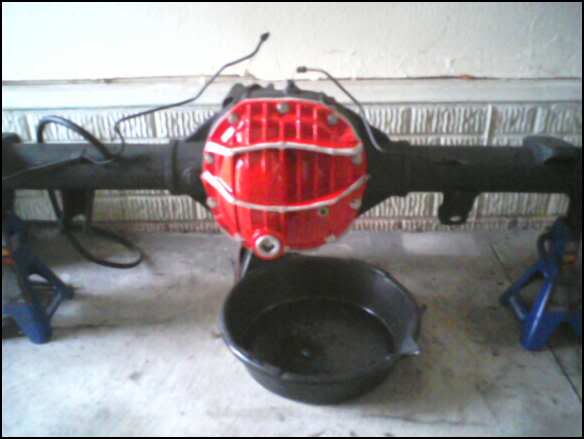

I put it on the axle today when I got home from school.
I don't like the bottom of the cover doesn't fully cover the bare steel on the differential.
You can see it on yours in the picture above to. I rubbed some extra RTV on it to cover it up though :/

Name:  570570741_2024398572_0.jpg
Views: 3
Size:  22.5 KB

For my first fab work and like the second time I've used a Grinder I'm pretty happy with it. I get jealous when I see other people on here though cause they managed to get the wings fins ground down so smooth. I wish mine had turned out that way....
Reply With Quote
  #9
Old 09-27-2010
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407
Hey kevin to answer your question about that drain, its 1 inch
Reply With Quote
  #10
Old 09-27-2010
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936

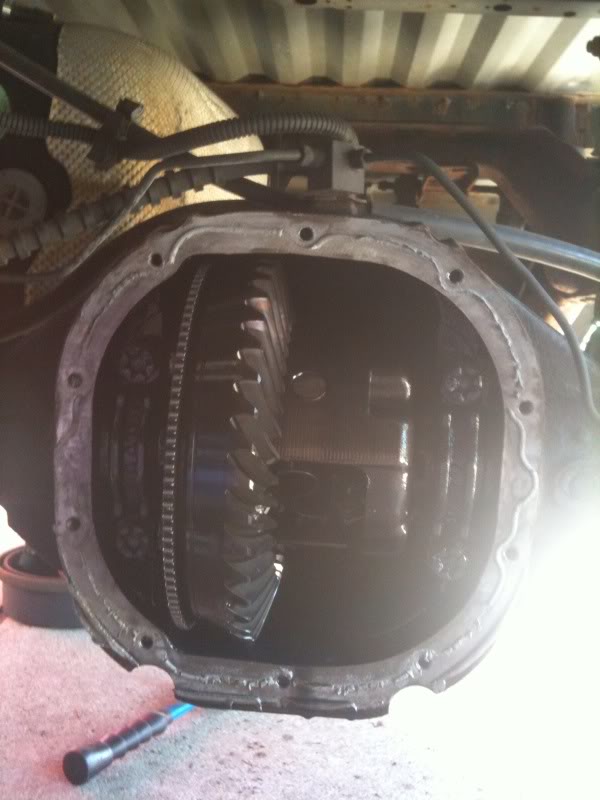

Kevin you can see here with mine removed where the old sealant was with the expo diff cover you wont have any issues at all..








Name:  photo11.jpg
Views: 1
Size:  53.3 KB
Reply With Quote
