Aluminum Diff. cover painted

Finally finsished painting the cover today. I still have to polish the 'fins' on it.
I need to stop by wally world to get teh deals for my dremel.

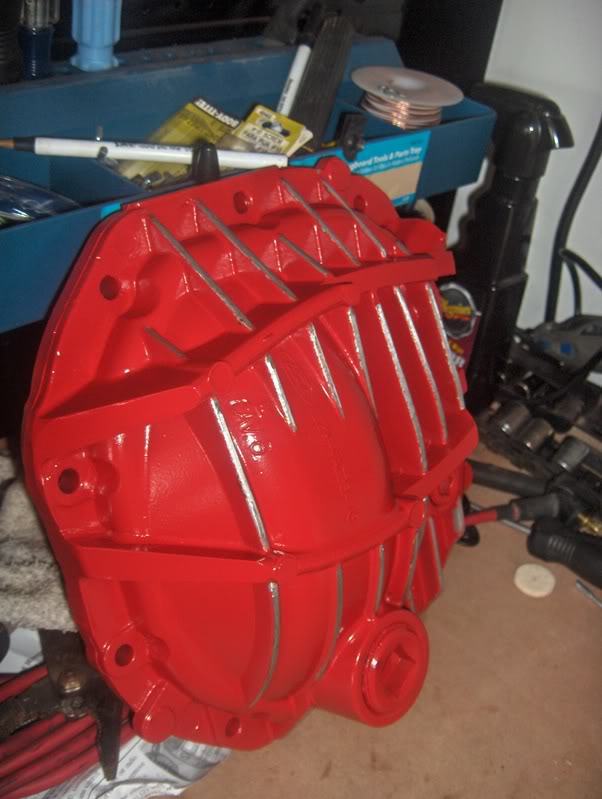

Name:  diffcover2.jpg
Views: 2
Size:  60.3 KB

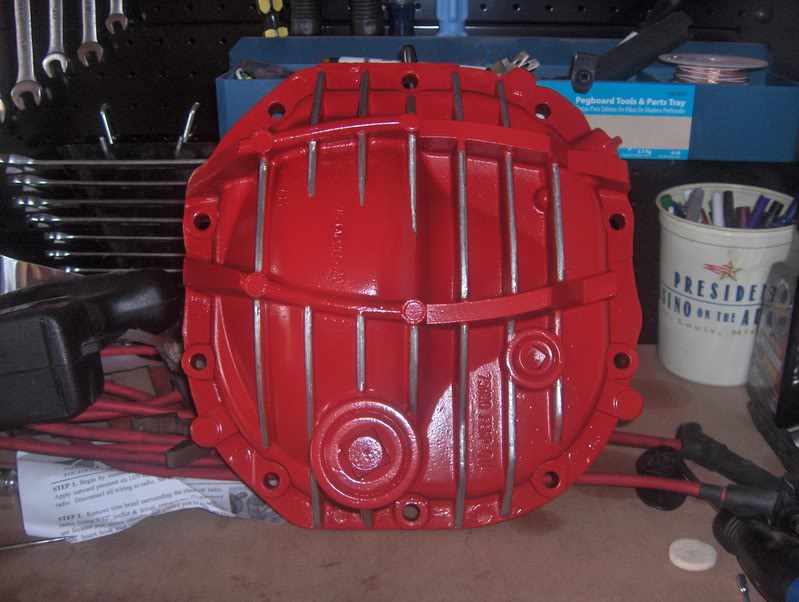

Name:  diffcover1.jpg
Views: 7
Size:  75.5 KB
Reply With Quote
  #2
Old 03-30-2008
07Ranger's Avatar
Member

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
looks good
Reply With Quote
  #3
Old 03-30-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Looks great man. When you gonna get installed pics?
Reply With Quote
  #4
Old 03-30-2008
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
did a good job on it
Reply With Quote
  #5
Old 03-30-2008
vansnxtweek's Avatar
Member

Join Date: Feb 2005
Location: USA
Posts: 2,666
Looks great!!! I like how you left the fins silver a lot!
Reply With Quote
  #6
Old 03-30-2008
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by RazorsEDGE View Post
Looks great man. When you gonna get installed pics?
soon as I figure out how to do it
Searching for all the info
Reply With Quote
  #7
Old 03-30-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
remove the old cover, install the new cover with a gasket.....install new 75w90 gear oil through the front fill plug on the driver side of the axle diff....
Reply With Quote
  #8
Old 03-30-2008
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by lifted97ranger View Post
remove the old cover, install the new cover with a gasket.....install new 75w90 gear oil through the front fill plug on the driver side of the axle diff....
I was told not to use gasket. I was told RTV would be best.

I found the hole. Im worried I may not get enough in there this cover is bigger
Reply With Quote
  #9
Old 03-30-2008
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by STL515273 View Post
I was told not to use gasket. I was told RTV would be best.

I found the hole. Im worried I may not get enough in there this cover is bigger


RTV is a liquid gasket
Reply With Quote
  #10
Old 03-30-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good!

through the front diff fill hole? that will work fine just keep dumping it in until its coming back out at ya.

i wouldnt use the gasket either. RTV works great.

I run 80w90 Lucas gear oil in mine, no need for additives and such then.
Reply With Quote
  #11
Old 03-30-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
any full synthetic will not require the added L/S friction modifier...

RTV works fine also...

like Zach said, fill it till it pours back out at you....
Reply With Quote
  #12
Old 03-30-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by lifted97ranger View Post
any full synthetic will not require the added L/S friction modifier...
eh not 100% true I would only not put it in if it says it on the bottle.
Reply With Quote
  #13
Old 03-30-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,832
Quote:
Originally Posted by STL515273 View Post
I found the hole. Im worried I may not get enough in there this cover is bigger
You must continue to set the lube level by filling the diff through the original hole on the side of the diff housing. The small plug in the Ex cover is set up for the IRS diff which can get by with a lower fluid level.

If you set the Ranger fluid level using the Explorer rear cover fill hole, your axle lube will be low and may starve the outer axle bearings. An 8.8 Ranger diff should take about 2.5~2.75 quarts of lube filled to the bottom of the diff housing fill hole.
Reply With Quote
  #14
Old 03-30-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Looks great! Post some pics when you get it installed!
Reply With Quote
  #15
Old 03-30-2008
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
where did the axle code sticky go?

I dont think I have LS it is just 3.55 gears
Reply With Quote
  #16
Old 03-30-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Quote:
Originally Posted by STL515273 View Post
where did the axle code sticky go?


Its in the drivetrain section.
Reply With Quote
  #17
Old 03-30-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
is there an "S" spring in the diff? if not then you don't have l/s, but if there is, then you do....
Reply With Quote
  #18
Old 03-30-2008
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by RazorsEDGE View Post
Its in the drivetrain section.
It is still there as a sticky but all the codes are gone
Reply With Quote
  #19
Old 04-05-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks pretty good to me, but I think I would have gone with silver with red trim.
