Axle/hub leakage! help!

Ok. so i bought my truck used and about a week or two after i bought it i started having problems with the front right wheel. i brought it back to have it serviced and they said it was the hub nut not properly tightened down. they replaced the washer and tightened it down to spec.

Now, about 3 months later im having the same problem again. while i was checking it out i happened to notice oil on the bottom right front side of my truck. i traced it back to this.

What is the technical name of the seal that is broken/leaking? and could it be caused from the hub being loose?

If so, im gonna tell them they need to fix that two.

Name:  axel2.jpg
Views: 2
Size:  11.5 KB





Name:  axel1.jpg
Views: 2
Size:  24.0 KB

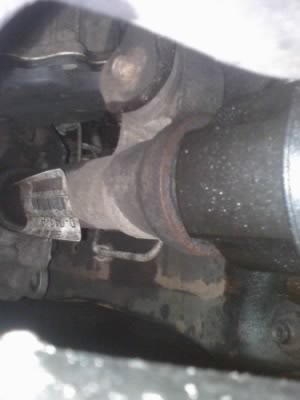

Name:  axel4.jpg
Views: 2
Size:  17.0 KB

just for reference i took the picture under the truck facing forward. and you are looking at the front right.

the front axle is leaking were the cv shaft comes out and goes to the knuckle.
Reply With Quote
  #2
Old 04-16-2008
TireIron's Avatar
Member

Join Date: Feb 2006
Location: Methuen, MA
Posts: 790
yea, thats a front axle seal. I'd have to look but it almost looks like the CV shaft isn't all the way in...
Reply With Quote
  #3
Old 04-16-2008
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Yep, looks to me like the axle shaft isn't all the way in either. Need to take a prybar, and pry it into place using the torsion bar and a small tab or groove on the cv joint. Should hear/feel it "pop" back into place.
Reply With Quote
  #4
Old 04-16-2008
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Axle seal, its about 16 bucks at the dealer.
Reply With Quote
  #5
Old 04-17-2008
02rangermayhem's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: C.Springs
Posts: 573
how easy is it to replace?
