Edge, Fx4, XLT....difference? - Ranger-Forums - The Ultimate Ford Ranger Resource


General Ford Ranger Discussion General discussion of the Ford Ranger that does not fit in any other sub-forum.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 06-22-2009
Member
Thread Starter

Join Date: Jun 2009
Location: Somonauk, IL
Posts: 4
Edge, Fx4, XLT....difference?

Hi all, i am new around here and have a few questions....
im in the market for a ranger to take miles off my Duramax. I have been shopping and want an 03 or newer ive decided. I would perfer a 4.0L, has to have 4wd and has to be a manual.
When ive been searching the price seems to be a premium for the FX4 trucks.
WHat exactly is the difference from a FX4, FX4 Level 2, Edge, and XLT model?
I have been hanging around here a bit and have figured out what different mods im going to do, just want to know if there is a BIG difference in these different models?
Reply With Quote
  #2
Old 06-22-2009
OVERtheEDGE's Avatar
Member

Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
xlt is more basic bottom of the line. which is what i have. edge is more like a good work truck package, rubber and all. fx4 comes with the 4.0 and 4.10 gears tow hooks, its pretty much the offroad package. fx4 lvl 2 is just a step up to more cool stuff from their. if you want a good truck for a little money go with an edge (which come in 2wd or 4wd)
Reply With Quote
  #3
Old 06-22-2009
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
The FX4 lvlII 03 to present has a 31 spline axle, 4.10 gears, Torsion limited slip, #1 torsion bars, Bilstein shocks, Alcoa rims and most have manual transfercase and transmission.

Edge models are the same as any 4x4 model: 28 spline axle, electric transfercase, yada yada yada...
Reply With Quote
  #4
Old 06-22-2009
Member
Thread Starter

Join Date: Jun 2009
Location: Somonauk, IL
Posts: 4
alrighty, that makes sense, i figured it was like the z71 chevy package just wanted to figure out what all it had added to it. sounds like fx4 is going to be my choice then :) is the torsen unit the same as like what dodge puts in their rear ends on the 3/4 to 1 ton side? aka, it locks up using torque vs rpms?
Reply With Quote
  #5
Old 06-22-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
find a 03 Fx4 Level II with manual transfer case

How is your dmax holding up? I work with them and I am not impressed with the ones I see
Reply With Quote
  #6
Old 06-22-2009
OVERtheEDGE's Avatar
Member

Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
Quote:
Originally Posted by smokindmax View Post
alrighty, that makes sense, i figured it was like the z71 chevy package just wanted to figure out what all it had added to it. sounds like fx4 is going to be my choice then :) is the torsen unit the same as like what dodge puts in their rear ends on the 3/4 to 1 ton side? aka, it locks up using torque vs rpms?
yes, its similar to that.
Reply With Quote
  #7
Old 06-22-2009
rangercrazy07's Avatar
Member
iTrader: (2)

Join Date: Oct 2005
Location: Marietta, GA
Posts: 758
all depends on the years my 98 xlt came with 4.10s
Reply With Quote
  #8
Old 06-22-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Trim levels are as follows(in order of base to fully loaded):

XL
Edge/Sport
XLT
Fx4(still an XLT but completely unique)

Edge models recieve color matched flares(if styleside) and bumpers, vinyl flooring, and tons of cab configurations(2dr reg cab, 2dr xcab, 4dr xcab), interior options(buckets or split bench, power options, til/leather,cruise, radio), drivetrain options(3.0L or 4.0L), wheel options(15" or 16" in varied styled), bed style options(6' styleside or 6' flareside(stepside). 2wd models get the same front suspension as the 4x4 models. It's basically a 4x4 w/o a tcase or axle.

XLT is a step above adding carpet, chrome bumpers with grey textured valence and grey textured flares(if styleside). The same options as Edge, but comes with higher end door panels if equipped w/o power options. Also, the 2.3L skips the Edge models and moves onto XLT. Also carries the coilspring suspension from the 2wd XL onto the 2wd XLT.

Fx4 ('02 Fx4 or '03+ Fx4 Level II)is one step beyond with special black interior, special upholstery on the standard buckets, all have 4.10 gearing, have a stronger rear axle basically out of a F150, if '02-03 equpped with manual trans, you got a manual transfer case. Special towhooks, black exterior plastics(instead of grey), special wheels with 31x10.50R15 BFG All Terrains. Standard with 4dr xcab, 4.10, limited slip, bilstein shocks, buckets, power options, leather w/ tilt wheel, cruise, etc....basically, Fx4 Level II got all the options as standard

Last edited by Fx4wannabe01; 06-22-2009 at 05:05 PM.
Reply With Quote
  #9
Old 06-22-2009
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
Quote:
Originally Posted by rangercrazy07 View Post
all depends on the years my 98 xlt came with 4.10s
You got lucky then!

Mine came with every option you could throw at it, Limited slip, all skid plates, 16" rims, #1 torsion bars, keyless entry....

But only 3.73's
Reply With Quote
  #10
Old 06-22-2009
billet03's Avatar
Member
iTrader: (2)

Join Date: May 2009
Location: centralcity, KY
Posts: 771
Fx4 is the way to go

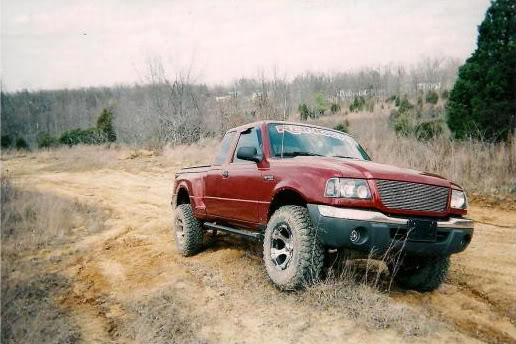

Name:  Picture-1.jpg
Views: 123
Size:  50.1 KB
Reply With Quote
  #11
Old 06-22-2009
98rangerxlt's Avatar
Member

Join Date: Mar 2009
Location: Bakersfield, CA
Posts: 725
Send me your d-max and i will send you my xlt.
Reply With Quote
  #12
Old 06-22-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by billet03 View Post
Fx4 is the way to go
Truck pictured is a '03 Fx4 Off Road....that would be one slight step above XLT, yet one big step down from a Level 2. It is an XLT option that includes the xcab, 4.0, 4.10, mid and aft skid plates, and a limited slip rear end. Not the beefed up 31spline rear end though, or the torsen differential. Just your standard 28spline 8.8 w/ a tracloc limited slip.

There used to be a 4x4 Off Road model, that ended in the '02 model year. The Fx4 Off Road package for '03+ merely replaced the 4x4 Off Road package. Basic name change.


Just remember, '02 Fx4 Off Road = '03+ Fx4 Level II. '02 4x4 Off Road = '03+ Fx4 Off Road.

Last edited by Fx4wannabe01; 06-22-2009 at 05:29 PM.
Reply With Quote
  #13
Old 06-22-2009
rangercrazy07's Avatar
Member
iTrader: (2)

Join Date: Oct 2005
Location: Marietta, GA
Posts: 758
Yup can't wait to put 31" KM's on her!
Reply With Quote
  #14
Old 06-22-2009
billet03's Avatar
Member
iTrader: (2)

Join Date: May 2009
Location: centralcity, KY
Posts: 771
yeah, mine does have the 4.10 with limited slip but I don't think its the torsen, the fx4lv2 came with a little more not that much though, better shocks and the torsen lmtd slip and manual t-case. and some stuff in side, I drove one and couldn't tell much a difference between mine and the lvl2 except the price difference, but it's your choice were just trying to help
Reply With Quote
  #15
Old 06-22-2009
Member
iTrader: (2)

Join Date: Sep 2008
Location: Sumter, SC
Posts: 633
Unless you have an 08/09 FX4. And with them, there isn't an lvlII. They come with 16in rims, Rancho shocks, and some other stuff that's skipping my mind.
Reply With Quote
  #16
Old 06-22-2009
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
my Edge came with 4x4, Limited slip 8.8 axel, 4.10 gears, tow hooks and power door locks, windows , towing package, 4.0 SOHC. supercab.
Reply With Quote
  #17
Old 06-22-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
If I had it to do all over again, I would be looking for a low mileage, '03 or newer FX4 Level II with twin sticks! By far the best Ranger ever built.
Reply With Quote
  #18
Old 06-22-2009
filmont's Avatar
Member

Join Date: Dec 2008
Location: Bellbrook, OH
Posts: 205
Quote:
Originally Posted by elanalvey View Post
Unless you have an 08/09 FX4. And with them, there isn't an lvlII. They come with 16in rims, Rancho shocks, and some other stuff that's skipping my mind.
One (or three however you want to look at it) is the front, mid, and rear (for the ever so important fuel tank) skid plates.

Also the two-tone paint. Basically the top half is the paint color of your choice while the bottom is some sort of graphite.
Reply With Quote
  #19
Old 06-22-2009
Member

Join Date: Feb 2009
Location: Las Vegas, NV
Posts: 161
Ya, I dream of an Fx4 Lv. II. I say get that.

So I'm curious, what did my 3.0L 01 XLT 4X4 Off Road come with?
Reply With Quote
  #20
Old 06-23-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 08XLT4x4 View Post
If I had it to do all over again, I would be looking for a low mileage, '03 or newer FX4 Level II with twin sticks! By far the best Ranger ever built.
Why not be cool like me and dream about a '03 LII for 7 years, then slowly build a XLT into a '03 LII with an '01 vin number?

lol.
Reply With Quote
  #21
Old 06-23-2009
Member
Thread Starter

Join Date: Jun 2009
Location: Somonauk, IL
Posts: 4
Quote:
Originally Posted by STL View Post
find a 03 Fx4 Level II with manual transfer case

How is your dmax holding up? I work with them and I am not impressed with the ones I see
its seen better days, currently have a cooked transmission that comes out friday....sad thing is its a built tranny. 498hp and 900lb/ft (with just fuel and tuning, stock turbo still!!!) welded a clutch pack together. but man does she move!!!!! haha, still havent found another stock turbo truck that can keep up with mine

Quote:
Originally Posted by 98rangerxlt View Post
Send me your d-max and i will send you my xlt.
haha, even in non-moving condition, i have a lil bit too much in her to trade up for one!

thanks for all the replies guys! i really really appreciate it! how much should i expect to pay for a fx4 level II (with 4.0, 5spd,) with less than 65K on her?
Reply With Quote
  #22
Old 06-23-2009
nate_g_2003's Avatar
Member

Join Date: Jun 2009
Location: Deer Park, TX
Posts: 976
I always thought Edge was a step above XLT for some reason...when you list it all out, makes me kinda sad. I always knew Edge was basically a "sport" pacakage (due to monotone paint scheme), but I guess mine is just special, since it is loaded out. Well, loaded minus rear doors, 4.0, and jump-seats. I always saw it as Edge > XLT.

Sometimes I hate my factory jump-seat delete option!
Reply With Quote
  #23
Old 06-23-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by nate_g_2003 View Post
I always saw it as Edge > XLT.

Sometimes I hate my factory jump-seat delete option!
If you look at the brochures, ford lists it like I did, and I totally see why as well. When ford came out with the Edge in late '00, they were geared toward younger croud. I believe advertisments had motocross attached to it in '01, and other 'young sports' if you wanna call it that.

Factory jump-seat delete option? ? really? you dont have those little fold outs where the doors should be? wait....reg cab? lol.
Reply With Quote
