gauge pods

just ordered a Aeroforce Interceptor. I would like to know how to go about installing a pillar pod. i dont want to just screw it in. anyone have any tips and clean pics
Reply With Quote
  #2
Old 06-09-2011
Topdog2007's Avatar
Level I Supporter
iTrader: (2)

Join Date: Aug 2009
Location: Blairsville, Ga
Posts: 466
Its gonna be hard to do cleanly unless you can do fiberglass work to integrate it into your pillar. I would go with the f150 column pod for ease of use and its easy to remove if you sell the truck. Just my two cents.
Reply With Quote
  #3
Old 06-09-2011
The SuperDookie Ranger's Avatar
Member

Join Date: Aug 2010
Location: Cincinnati, Ohio
Posts: 817
Agreed^^^ I have the f-150 steering column pod and you don't have to screw it in.
Reply With Quote
  #4
Old 06-09-2011
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Quote:
Originally Posted by The SuperDookie Ranger View Post
Agreed^^^ I have the f-150 steering column pod and you don't have to screw it in.
+1, I have the same and love it
Reply With Quote
  #5
Old 06-09-2011
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by Topdog2007 View Post
Its gonna be hard to do cleanly unless you can do fiberglass work to integrate it into your pillar. I would go with the f150 column pod for ease of use and its easy to remove if you sell the truck. Just my two cents.
Quote:
Originally Posted by The SuperDookie Ranger View Post
Agreed^^^ I have the f-150 steering column pod and you don't have to screw it in.
Quote:
Originally Posted by korey89 View Post
+1, I have the same and love it
Anybody with pics?
Reply With Quote
  #6
Old 06-09-2011
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Here's an old post that shows the double A-pillar pod and the F150 steering column pod w/ Autometer part numbers.
Quote:
Originally Posted by rwenzing


I added some instrumentation to keep an eye on things with the supercharger. Here are the part numbers in case anyone is interested.

Pods:
  • Autometer 15308: Dual A-pillar pod (also available as a single 15309)
  • Autometer 15004: F150 Steering Column pod (requires minor trimming to clear the cluster bezel on a 95+ Ranger, fits automatic only)
  • NewSouth Performance triple POD-004: Triple dash pod (requires base trimming to match dash contour. Available as 1, 2 or 3 gauge pods, angled left or right.)
All of the pods above are set up to accept 2 1/16" gauges.

The pillar and column pods are the easiest to install and can easily be reversed if desired. The triple on the dash requires a higher level of commitment since holes have to be drilled through the dash to mount it.


Gauges:
  • Autometer 4357: Transmission Oil Temperature
  • Autometer 4348: Engine Oil Temperature
  • Autometer 4378: Air/Fuel Ratio - Wide band
  • Autometer 4344: Exhaust Gas Temperature (Pyrometer)
  • Autometer 4301: Vacuum/Boost
  • Autometer 4363: Fuel Pressure


All of these pods and gauges are from www.egauges.com.













Reply With Quote
  #7
Old 06-12-2011
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
This is where i had mine

Name:  IMG_0708.jpg
Views: 168
Size:  106.5 KB

its not "screwed" in its got those automotive fasteners just smaller in size. u do gotta drill small holes for them though.

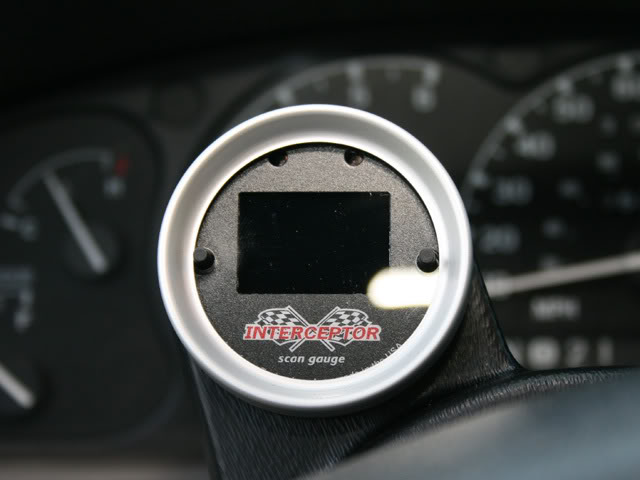

This is koreys with the F150 column pod
Name:  04.jpg
Views: 40
Size:  40.7 KB


I need to go back to obd2 so i can have one, i miss it lol

Last edited by 99offroadrngr; 06-12-2011 at 09:59 AM.
Reply With Quote
  #8
Old 06-12-2011
04RangerDave's Avatar
JDM> RANGER

Thread Starter
iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Wirelessly posted

Can\'t make up my mind. I see that you don\'t have the oh crap handles does that matter. And where did u get the gauge holder that goes on the pillar

Last edited by 04RangerDave; 06-12-2011 at 10:58 AM.
Reply With Quote
  #9
Old 06-12-2011
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by 04RangerDave View Post
Wirelessly posted

Can\'t make up my mind. I see that you don\'t have the oh crap handles does that matter. And where did u get the gauge holder that goes on the pillar
You can still fit it with or without the handle just lower or higher. I just got it on ebay. let me find a link]

Here
http://cgi.ebay.com/ebaymotors/New-A...ht_2383wt_1167


I dunno why they say 93-02 lol they're all the same beyond 02
