Help Broken Hose Line

  #1
Old 02-01-2019
Member
Thread Starter
Join Date: Jan 2019
Location: Canyon Lake
Posts: 14
Help Broken Hose Line

What is this broken line for and does anyone know the part number
Anyone know the part number for this broken line 4.0L edge 2004. And what is it for?


  #2
Old 02-01-2019
wydopnthrtl's Avatar
Member
iTrader: (2)
Join Date: Dec 2005
Location: Ohio
Posts: 2,477
vacuum line. The sphere shape is a vacuum reservoir

  #3
Old 02-01-2019
RF Veteran
iTrader: (1)
Join Date: Jan 2014
Location: Vancouver, BC
Posts: 12,191
Ford switched to hard plastic vacuum lines years ago, they look like wires

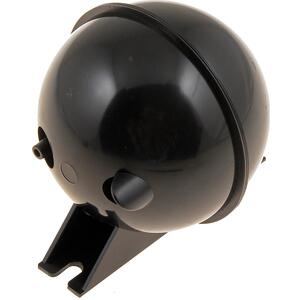

Yes the round plastic ball is the vacuum reservoir

Picture here: https://contentinfo.autozonepro.com/...47076/image/3/

It will have two vacuum hoses, one runs to intake manifold and may have "T's" on it, shared vacuum
The other hose will run to the firewall passenger side, it supplies vacuum for Vent controls, i.e. panel, floor, defrost, defrost is the default, no vacuum = defrost vent only

You can use soft vacuum hose to splice or replace the hard plastic line
Ford uses the hard plastic because its cheaper when buying bulk

There might be a part number but I doubt it would specific to one hose, more like a kit with several vacuum hoses

Wrecking yard will be filled with these, any Ford or GM, and pretty much any other vehicle with a gasoline engine will have vacuum lines, hard and soft
