Lights for trailer

I added two 55 watt H3 to the back of my truck. I have receiver hitch, and a person never has enough light back there trying to back up and hook up to trailer. I mounted them to bumper just inside hitch frame area so they cant be knocked off either. They will also work for idiots who come up from behind with bright lights on.
Reply With Quote
  #2
Old 05-25-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I did the same thing with my ranger
Reply With Quote
  #3
Old 05-25-2009
rangerhell93's Avatar
Member

Join Date: May 2009
Location: Morganton, NC
Posts: 34
how were you able to wire them up i just bought some for mine but have not wired it up yet
Reply With Quote
  #4
Old 05-25-2009
rangermark's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Berryville Arkansas
Posts: 129
Installed rocker switch(sideways) in the bottom front of my console on floor. Ran wire through firewall to battery and then ran one wire back to lights. Hooked ground to bumper. Looks good
Reply With Quote
  #5
Old 05-25-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
pics?
Reply With Quote
  #6
Old 05-25-2009
rangermark's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Berryville Arkansas
Posts: 129
Pics on the way
Reply With Quote
  #7
Old 05-25-2009
rangerhell93's Avatar
Member

Join Date: May 2009
Location: Morganton, NC
Posts: 34
ok thanks
Reply With Quote
  #8
Old 05-25-2009
rangermark's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Berryville Arkansas
Posts: 129
[/IMG]
Reply With Quote
  #9
Old 05-25-2009
rangermark's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Berryville Arkansas
Posts: 129
http://Name:  100_0481.jpg
Views: 2
Size:  59.7 KB[
Reply With Quote
  #10
Old 05-25-2009
rangermark's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Berryville Arkansas
Posts: 129
http://Name:  100_0482.jpg
Views: 3
Size:  77.5 KB[
Reply With Quote
  #11
Old 05-25-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Nice i've been wanting to put a set on the back of my truck but not sure how to mount them, do you have pics of how you mounted them?
Reply With Quote
  #12
Old 05-25-2009
rangermark's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Berryville Arkansas
Posts: 129

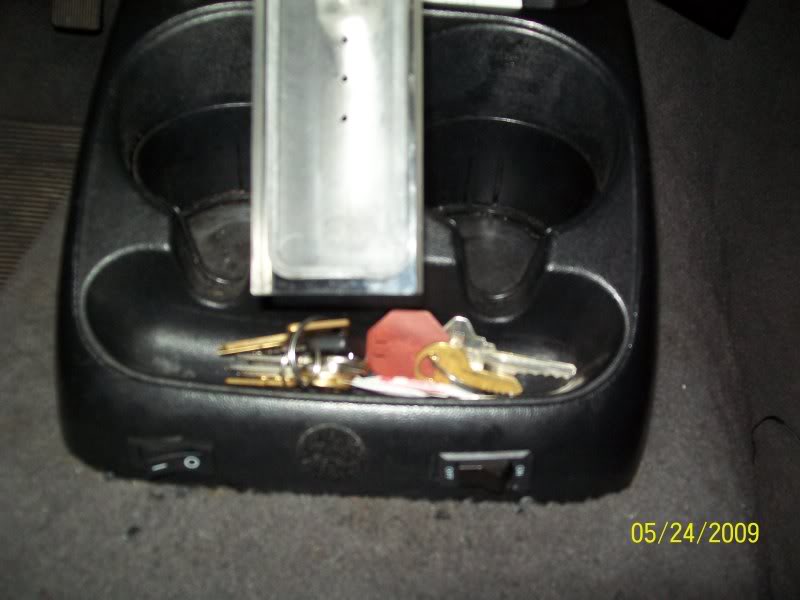

The white block in the middle, is actually a cell phone holder I machined out of plexiglas and mounted in between cup holders. It can move in any direction to get out of the way
Reply With Quote
  #13
Old 05-25-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
I meant the lights sorry
Reply With Quote
  #14
Old 05-25-2009
rangermark's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Berryville Arkansas
Posts: 129
I just drilled into edge of bumper, so that the lights were insde the hitch frame. Mine just had a 5/16 bolt in them.
Reply With Quote
  #15
Old 05-25-2009
rangermark's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Berryville Arkansas
Posts: 129
The switch on the left is for the front lights, right is rear lights
Reply With Quote
  #16
Old 05-25-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
hmm might not be a bad idea...
Reply With Quote
  #17
Old 05-25-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Did you put a relay or an inline fuse for it?

If you plan on going wheeling at all, lose lights are going to last 10 minutes under there.

If not, that is the perfect place for them.
Reply With Quote
  #18
Old 05-25-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Don't really like the location of the lights. They hang down a bit to far for my liking. I put a set on a while back, still haven't had a chance to wire them up, but I love the location.

DSC_0017-2.jpg?t=1243264797
Reply With Quote
  #19
Old 05-25-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
There is a how to on here for wiring them up

Mine are in the same location as the OP

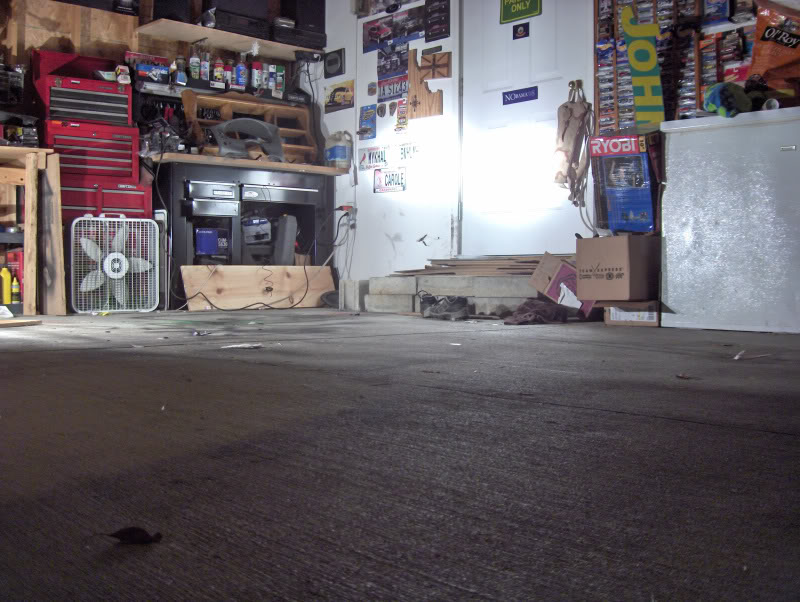

I put mine on mainly for backing in the garage at night and hooking up a trailer also

Name:  HPIM4935.jpg
Views: 1
Size:  57.6 KB

Name:  HPIM4937.jpg
Views: 2
Size:  106.6 KB
Reply With Quote
  #20
Old 05-25-2009
rangerhell93's Avatar
Member

Join Date: May 2009
Location: Morganton, NC
Posts: 34
how can you find the how to to wire these up?
Reply With Quote
  #21
Old 05-25-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Quote:
Originally Posted by rangerhell93 View Post
how can you find the how to to wire these up?
There is a search feature at the top of the board that works great.
Reply With Quote
  #22
Old 05-25-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Quote:
Originally Posted by rangerhell93 View Post
how can you find the how to to wire these up?
Do you really not know how to wire up a set of lights?

I think we might have a problem...
Reply With Quote
  #23
Old 05-25-2009
rangermark's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Berryville Arkansas
Posts: 129
I installed mine almost exactly the same place STL did. It would be hard to knock them off. they are right up against the receiver hitch frame.
