Lumbar seats Picture Request

Anyone with Lumbar seats on there ranger can you get me a picture of the **** and how it attaches to the seat??

If it attaches like I hope I got a idea
Reply With Quote
  #2
Old 06-27-2008
Shaklakan's Avatar
Member

Join Date: Jan 2008
Location: La Habra CA
Posts: 1,100
You talking manual lumbar because i got power lumbar...
Reply With Quote
  #3
Old 06-27-2008
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Ya the manual one where u turn the ****
Reply With Quote
  #4
Old 06-27-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721

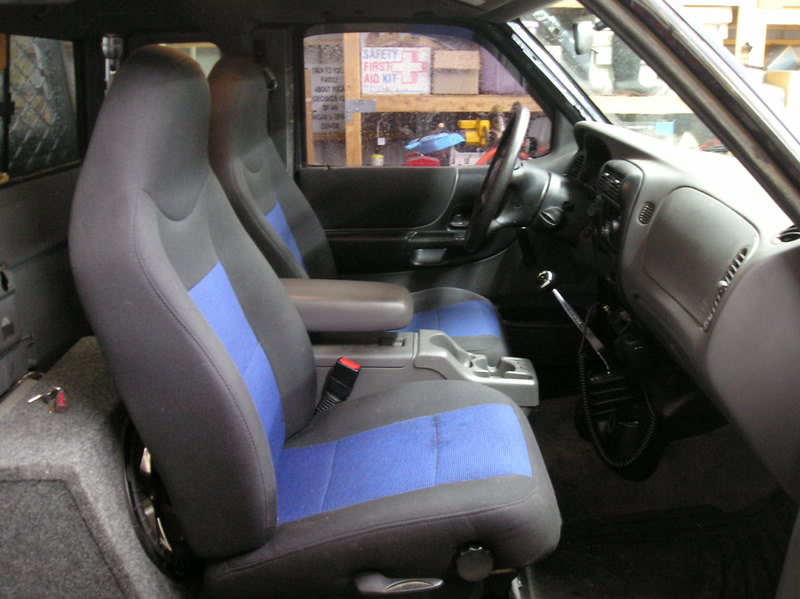

Let me see if i can find one, if not, i'll go out and snap some pics.........'03 Fx4 Level2 w/manual lumbar.


EDIT...

Best one I can find. If you want better, i can go out and take pics.
Name:  P2070020.jpg
Views: 23
Size:  63.0 KB
Reply With Quote
  #5
Old 06-27-2008
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
I need one of just the driver seat and need it where is actually connects. Like how it attaches to the seat

hope it isnt to much trouble
Reply With Quote
  #6
Old 06-27-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I'm so pissed...thats wayyyy to much work for me....

lol...

stand by...i'll go snap that shot.
Reply With Quote
  #7
Old 06-27-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Reply With Quote
  #8
Old 06-27-2008
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Thanks for that picture trigger but I need one of it attached to the seat.

Like how it actually attaches. to the seat ifit clips on there mounted with a screw
Reply With Quote
  #9
Old 06-29-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Hey...sorry but i forgot to grab pics. But...

While at a junkyard yesterday, I saw an explorer bucket with the **** OFF the seat. Manual lumbar....

It attached to a stud via "splines" that looks like a torx(6pt star). That stud then went via a cable to something. I couldn't see. I got pics on my phone but no card to swap pic from phone to comp. PM me with yer cell and i can text them to ya.
Reply With Quote
