Install FX4 Lumbar into non lumbar seat?

Is this possible? Has anyone done it? What parts are needed?
Reply With Quote
  #2
Old 03-29-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Prolly a lot more work then it's worth honestly.
Reply With Quote
  #3
Old 03-29-2013
03DualSport's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Wimberley, Tx
Posts: 260
I dunno I'm going to have the covers off, and these seats kill my lower back on long drives.
Reply With Quote
  #4
Old 03-29-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Well why would anyone pull the lumbar out of a set of seats? I doubt you will ever find the parts separate.
Reply With Quote
  #5
Old 03-29-2013
03DualSport's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Wimberley, Tx
Posts: 260
After doing some research I'll be able to buy the parts new for about $100
Reply With Quote
  #6
Old 03-29-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Lol used seats are like $100. Not worth it.
Reply With Quote
  #7
Old 03-29-2013
03DualSport's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Wimberley, Tx
Posts: 260
Yeah well to me it would be.
Reply With Quote
  #8
Old 03-29-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
If the years of the seat are similar you should be able to replace the backs as one piece, buckets or 60/40, the backs will interchange.
No need to remove it from the seats of it is all together.
If the lumbar parts are already out, I am thinking it won't be hard to replace just you need all the parts.

Just thinking out loud...
The lumbar rack adjuster
The cable and handle
All mounting hardware.
Reply With Quote
  #9
Old 03-29-2013
03DualSport's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Wimberley, Tx
Posts: 260
Yup that's pretty much it. There's also a coupler that connects the **** to the cable. The rack itself is actually held in by tension and a zip tie lol.
Reply With Quote
  #10
Old 03-30-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
always ask the people who have done it.


seat pan, adjuster, cable, and back spring. it clips into a stock seat, and you just replace the seat pan and cut a hole in your cloth.

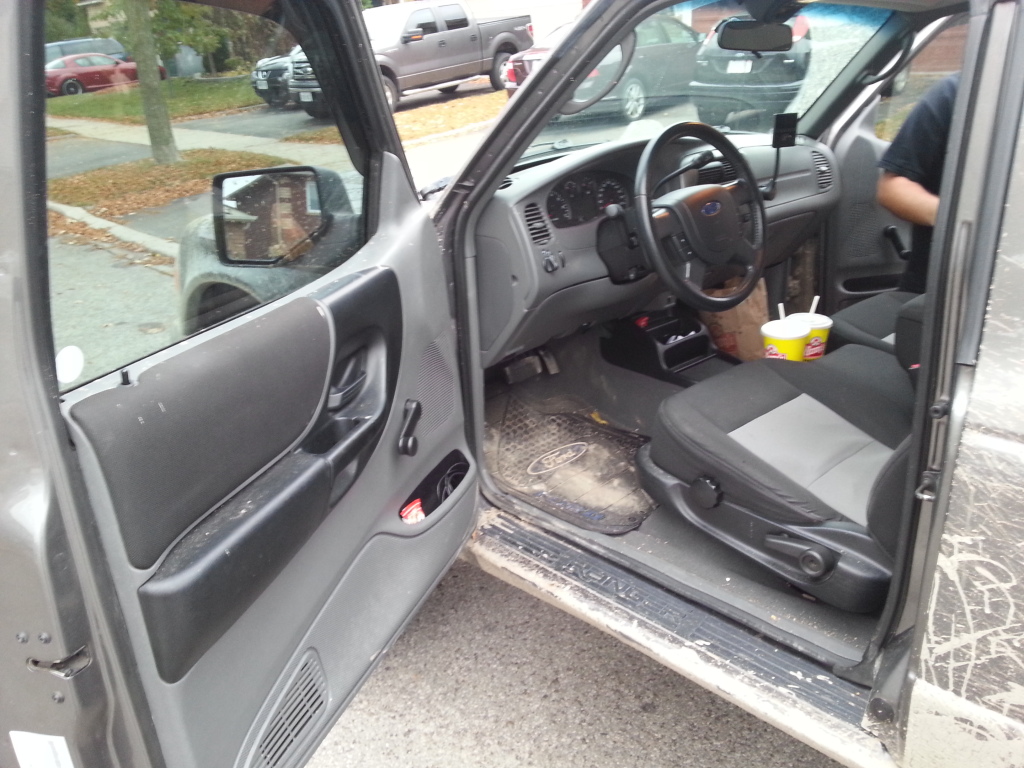

here you can see the adjuster on the side of the seat.


i bought a faded set of fx4 seats, took it out and sold them for $30 less then i paid for them, so it cost me $30.
Attached Thumbnails
Install FX4 Lumbar into non lumbar seat?-20121014_174534_zpsc0ac637c.jpg
Reply With Quote
  #11
Old 03-30-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
On my 03, with bucket seats, both the passenger and the driver seat pans were the same.
In fact you coils switch the backs and tracks and move the seat for side to side.
The seat pans had holes on both sides.

Also, my 60/40 setup that was taken out for the bucket seat, the passenger side was just a standard bucket seat.
Reply With Quote
  #12
Old 03-30-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
you need the seat pan because the dial mounts to it, otherwise you need to weld in a bracket you could try to make.

just thought about it, you also need the black trim around the bottom of the seat.
Reply With Quote
  #13
Old 03-30-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
I was under the impression that the holes in the seat pan were the mounting ponts. didn't notice any additional brackets in my seats.

But it is still doable with ALL of the parts.
Reply With Quote
  #14
Old 03-30-2013
03DualSport's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Wimberley, Tx
Posts: 260
To me it looks like the seat pan is the same with or w/o lumbar
Reply With Quote
  #15
Old 03-30-2013
03DualSport's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Wimberley, Tx
Posts: 260
I think the only difference in the trim is the small notch for the ****.
Reply With Quote
  #16
Old 03-30-2013
03DualSport's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Wimberley, Tx
Posts: 260
Do you think cutting the fabric for the **** will cause it to tear over time?
Reply With Quote
  #17
Old 03-31-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
Quote:
Originally Posted by 03DualSport View Post
To me it looks like the seat pan is the same with or w/o lumbar
That's what I thought but not sure if this is an 06.

Quote:
Originally Posted by 03DualSport View Post
I think the only difference in the trim is the small notch for the ****.
Mine has a small apron on the lower portion to cover up some of the track, maybe a notch will have to look.

Quote:
Originally Posted by 03DualSport View Post
Do you think cutting the fabric for the **** will cause it to tear over time?
IMHO, over time it probably will.
Reply With Quote
  #18
Old 03-31-2013
03DualSport's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Wimberley, Tx
Posts: 260
So maybe when I make the hole I'll pull the cover off and stitch around it for strength.
Reply With Quote
  #19
Old 03-31-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,765
Anything for reinforcement.

How about a picture ?

Mine had the lumbar on the drivers side when I got the seats so I do not know or remember what the original seat covers looked like.
