will this rear window fit my truck?

Reply With Quote
  #2
Old 03-26-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
Probably not.

Last edited by SteelDirigible; 03-27-2011 at 10:29 AM. Reason: revisionist history
Reply With Quote
  #3
Old 03-27-2011
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
it's hard to tell without knowing what your truck is. that window will only fit an 83-97 reg cab (roped in gasket). will not fit any ext cabs, or 98+ reg cabs(bolt in).
Reply With Quote
  #4
Old 03-27-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
of course you're right i missed the reg cab part. definitely looks like your a 98+ so i'm gonna have to say no probably not.
tell us more about your truck.
Reply With Quote
  #5
Old 03-27-2011
hozII's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
no.....the rear windows in xcab are bigger than the rear windows in reg cab....the yrs doesnt matter
Reply With Quote
  #6
Old 03-27-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by drppdyllwrngr View Post
it's hard to tell without knowing what your truck is. that window will only fit an 83-97 reg cab (roped in gasket). will not fit any ext cabs, or 98+ reg cabs(bolt in).
rear windows in 93-97 are butal roll. i know, casue mine was a PITA when it was leaking.
Reply With Quote
  #7
Old 03-27-2011
SVT01RANGER's Avatar
Member
iTrader: (2)

Join Date: Jun 2004
Location: West Eugene, OR
Posts: 3,634
nope, wont fit
Reply With Quote
  #8
Old 03-27-2011
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Quote:
Originally Posted by hozII View Post
no.....the rear windows in xcab are bigger than the rear windows in reg cab....the yrs doesnt matter
98+ reg cabs use the same window as the ext cabs.


Quote:
Originally Posted by StxDangerRanger View Post
rear windows in 93-97 are butal roll. i know, casue mine was a PITA when it was leaking.
gen 3 ext cabs use butyl tape around them. 97 and older reg cabs use a gasket that sits over the pinch weld. 98+ reg cabs use the butyl as well.

98+ reg cab:
Name:  Truckaccessory010.jpg
Views: 254
Size:  118.0 KB

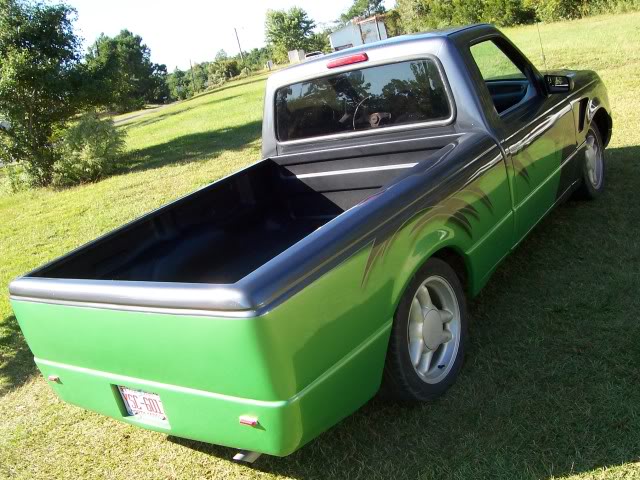

97 older reg cab with the "roped in" gasket solid:
Name:  100_0348.jpg
Views: 255
Size:  80.8 KB

97 older reg cab with the "roped in" gasket slider:
Name:  Picture056.jpg
Views: 284
Size:  65.4 KB
Reply With Quote
  #9
Old 03-27-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
you knw your rear windows.
Reply With Quote
  #10
Old 03-30-2011
FMD's Avatar
FMD FMD is offline
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
where did you get an orange tonnuae cover?
Reply With Quote
  #11
Old 03-30-2011
leadfoot's Avatar
Member

Join Date: Oct 2007
Location: MA
Posts: 894
Quote:
Originally Posted by FMD View Post
where did you get an orange tonnuae cover?
Probably made it.
Reply With Quote
  #12
Old 03-31-2011
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
yep. it was black vinyl at one time, orange canvas, yellow/teal vinyl, then finally black canvas before i sold it.
Reply With Quote
  #13
Old 01-06-2012
Member

Join Date: Jan 2012
Location: Grand Prairie, TX
Posts: 1
Will this fit my 2006

He says it will fit but I'm starting to wonder if I should cancel my bid on it. Any advice would be much appreciated.

http://www.ebay.com/itm/150731019806...84.m1431.l2649

Thanks!

Oh yeah, I have a 2006 Sport/extended cab. I just got it and that's what it was listed as but it my be an XL.
Reply With Quote
  #14
Old 01-06-2012
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
No, it won't fit.
Compare the pics in post #8 above.
In the top pic the top corners are almost squared off , where in the bottom pic the corners are quite rounded.
Reply With Quote
  #15
Old 01-06-2012
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
yeah, that's def a roped in window. up to 97 reg cabs only. i hardly trust ebay sellers. most dont know what they will interchange with.
Reply With Quote
  #16
Old 01-07-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
so did you win it? since he said it will fit an 06 hes obligated to make good on that, so you better let him know before he ships it that you don't want it.
Reply With Quote
  #17
Old 01-07-2012
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Quote:
Originally Posted by SteelDirigible View Post
so did you win it? since he said it will fit an 06 hes obligated to make good on that, so you better let him know before he ships it that you don't want it.
Fail for not noticing the date of the OP.
I'm sure it's gone by now.

Please try to keep up.
Reply With Quote
  #18
Old 01-07-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Quote:
Originally Posted by Gloobner View Post
He says it will fit but I'm starting to wonder if I should cancel my bid on it. Any advice would be much appreciated.

http://www.ebay.com/itm/150731019806...84.m1431.l2649

Thanks!

Oh yeah, I have a 2006 Sport/extended cab. I just got it and that's what it was listed as but it my be an XL.
Quote:
Originally Posted by SteelDirigible View Post
so did you win it? since he said it will fit an 06 hes obligated to make good on that, so you better let him know before he ships it that you don't want it.
Quote:
Originally Posted by OTRtech View Post
Fail for not noticing the date of the OP.
I'm sure it's gone by now.

Please try to keep up.
.
Reply With Quote
  #19
Old 01-07-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
Quote:
Originally Posted by OTRtech View Post
Fail for not noticing the date of the OP.
I'm sure it's gone by now.

Please try to keep up.
Fail for not noticing I was not responding to the OP. The auction ended this morning.
Reply With Quote
