06 mirrors on 96 ranger?

would these just bolt in place or not cause iv seen the mounting to the door on an 06 and they look like they would same design and all, but i dont know the mounting of the bolts any one know if anybody has done this before?
Reply With Quote
  #2
Old 06-12-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
they bolt in .. i want to get some 06's aswell for my 96

1996 ftfw
Reply With Quote
  #3
Old 06-12-2009
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
You have to redrill the bolt holes to a slightly larger diameter I believe.

MJones should have some info floating around here with his install.
Reply With Quote
  #4
Old 06-12-2009
Member

Join Date: May 2008
Location: Roseville, CA
Posts: 246
Quote:
Originally Posted by sniper_101 View Post
You have to redrill the bolt holes to a slightly larger diameter I believe.

MJones should have some info floating around here with his install.
Yeah from what I read you have to redrill out the holes trying to see if i cant find the tutorial...
Reply With Quote
  #5
Old 06-12-2009
Member

Join Date: May 2008
Location: Roseville, CA
Posts: 246
Reply With Quote
  #6
Old 06-12-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
^^yupyup. I had to drill out all 3 for my install.
Reply With Quote
  #7
Old 06-14-2009
gotmud?'s Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: avon park florida
Posts: 401
thanks all of you for the help much appreciated!
Reply With Quote
  #8
Old 06-22-2009
Member

Join Date: May 2008
Location: Roseville, CA
Posts: 246
Good luck on the mod :)

I'm tempted to do this myself next...only issue keeping me from doing it money lol.
Reply With Quote
  #9
Old 06-22-2009
94 2.3's Avatar
Member

Join Date: Feb 2008
Location: Washington
Posts: 441
do you just get the mirrors from the stealership.
Reply With Quote
  #10
Old 06-22-2009
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
^^ they are highly expensive but they are the only ones that fit nice.. aftermarket ones i heard kinda suck
Reply With Quote
  #11
Old 06-22-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I got mine for under $75 for the pair from Ford. Of course, I've got sort of a hook up. lol.

Reply With Quote
  #12
Old 06-24-2009
Member

Join Date: Feb 2009
Location: Ontario Canada
Posts: 46
I just mounted a set of aftermarket ones, and they fit perfectly. There is a MUCH easier way of doing the swap though.
If you look on the ends of the threaded self tapers which are on the newer style mirror, it looks like a torx bit. Take a reverse torx socket and back those self tapers out of the plasic on the mirrors. Then take a small angle grinder or whatever you think would work best and grind down the small plasic cylinders that the self tapers screwed into. I took them right down flush with the rest of the plasic. Next you just put the self tapers back in the holes(you may need to use a drill bit to get any melted plastic out of the hole, or to make the hole a little deeper for the self tapers). Once you have done that, mount the mirrors on the doors, it's as easy as that. No need to grind or drill your doors at all.

Hope this helps some people. I had read the write up on how to do it, and I was intending on doing it that way, but once I got to look at the actual mirror, this way was so much quicker. It took me a total of 15 mins to do the swap.
Reply With Quote
  #13
Old 06-24-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
Quote:
Originally Posted by Fx4wannabe01 View Post
I got mine for under $75 for the pair from Ford. Of course, I've got sort of a hook up. lol.

ill send you 110 shipped for those mirrors with your hookup
Reply With Quote
  #14
Old 06-24-2009
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
do u really have to use the washers on an 01-05?
Reply With Quote
  #15
Old 06-24-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Do you retap the holes?
Reply With Quote
  #16
Old 06-25-2009
Member

Join Date: Feb 2009
Location: Ontario Canada
Posts: 46
I need a close up picture of the back of the new style mirror without the foam seal on it so i can explain it easier. Can anyone get me a picture please?
Reply With Quote
  #17
Old 06-27-2009
Danger06Ranger's Avatar
Member
iTrader: (-1)

Join Date: Apr 2008
Location: Lowell, IN
Posts: 620
Quote:
Originally Posted by Fx4wannabe01 View Post
I got mine for under $75 for the pair from Ford. Of course, I've got sort of a hook up. lol.

I like your truck and all.. but bro, I like my mirrors more.
Reply With Quote
  #18
Old 06-27-2009
Member

Join Date: Feb 2009
Location: Ontario Canada
Posts: 46
Quote:
Originally Posted by Danger06Ranger View Post
I like your truck and all.. but bro, I like my mirrors more.
haha, they are the same mirrors. but he has a black cover and you have a red cover.
Reply With Quote
  #19
Old 06-27-2009
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
shane has no cover.. his is the full plastic case one if u look closely
Reply With Quote
  #20
Old 06-28-2009
Danger06Ranger's Avatar
Member
iTrader: (-1)

Join Date: Apr 2008
Location: Lowell, IN
Posts: 620
That, plus my used to be chrome..... chrome makes me sad.
Reply With Quote
  #21
Old 06-28-2009
Member

Join Date: Feb 2009
Location: Ontario Canada
Posts: 46
Quote:
Originally Posted by Danger06Ranger View Post
That, plus my used to be chrome..... chrome makes me sad.
Whys that? Although on the new Rangers the chrome covers look stupid because there is very little chrome on the truck.

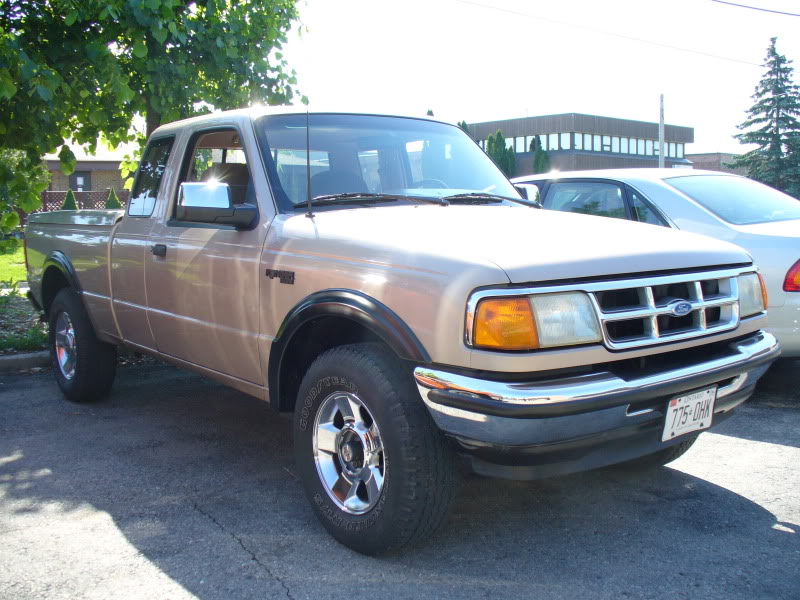

I just some '07 mirrors with chrome covers on my '94, and I think they look great.
Name:  P1050033.jpg
Views: 63
Size:  131.0 KB
