2010 to get REAR disc Brakes! - Ranger-Forums - The Ultimate Ford Ranger Resource


General Technical & Electrical General technical and electrical discussion for the Ford Ranger that does not fit in any other sub-forum.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 10-20-2009
dixie_boysles's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
2010 to get REAR disc Brakes!

i just read this on RPS, was wondering if anyone else has seen/hears about this. heck yeah, it this is true, time for a conversion to 10' brakes

im not sure if its true or false yet..

EDIT: Nevermind, i found out its TRUE!!!!!!!!

this is from the ford ranger website on Ford.com



it clearly states that it has rear discs brakes!!! (well you can really see it that well but its there) just go to here to see it:

http://www.fordvehicles.com/trucks/r...tions/chassis/

Last edited by dixie_boysles; 10-20-2009 at 06:29 AM.
Reply With Quote
  #2
Old 10-20-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
i heard that too. starting in 2010 ford is putting the RSC on all of there trucks and that requires the use of disc brakes. at least thats what ive read.
Reply With Quote
  #3
Old 10-20-2009
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
cool
Reply With Quote
  #4
Old 10-20-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Man that makes me want too get a new Ranger. I am on Ford.com building them all the time.
Reply With Quote
  #5
Old 10-20-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Shouldn't the 2010 models already be out?
Reply With Quote
  #6
Old 10-20-2009
dixie_boysles's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
i think so
Reply With Quote
  #7
Old 10-20-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Time to head up to the ford dealership and see for myself
Reply With Quote
  #8
Old 10-20-2009
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Wow thats cool I would still rather have an explorer axle.
Reply With Quote
  #9
Old 10-20-2009
04_xlt_4.0_4x4's Avatar
Member

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
prob a stupid question but what is RSC??
Reply With Quote
  #10
Old 10-20-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
rsc=roll stability control
Reply With Quote
  #11
Old 10-20-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by 04_xlt_4.0_4x4 View Post
prob a stupid question but what is RSC??
roll stability control
Reply With Quote
  #12
Old 10-20-2009
russian's Avatar
Member
iTrader: (2)

Join Date: May 2009
Location: Windsor, ON
Posts: 574
Im going to my local dealership today I seen an 2010 there, I'll look for the rear disks and take some pics.
Reply With Quote
  #13
Old 10-20-2009
SparkYZ's Avatar
Member

Join Date: Nov 2007
Location: Granada Hills, CA
Posts: 679
I'd rather get a ford disc kit for my level 2 than have all the electronic nannies on new fords
Reply With Quote
  #14
Old 10-20-2009
Robin Hood's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: AZ
Posts: 789
I would love to have rear discs. Drums SUCK.
Reply With Quote
  #15
Old 10-20-2009
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
So same truck with RSC and disk brakes? WOW!!!<------Sarcasm

Quote:
Originally Posted by SparkYZ View Post
I'd rather get a ford disc kit for my level 2 than have all the electronic nannies on new fords
X2. Just something else to disable while offroading.
Reply With Quote
  #16
Old 10-20-2009
Metro55's Avatar
Member

Join Date: Apr 2009
Location: Winnipeg
Posts: 938
maybe they're chance the door panels.. or the dash or something else too.. hahaha hope tey don't go too overboard with new ideas.. hahaha!
Reply With Quote
  #17
Old 10-20-2009
rngprerunner's Avatar
Member

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
I seem to remember going through this before... and it was just an error on Fords site...

EDIT: I was right... from Ford's Media site

BRAKES
Front 11.28-inch disc

Rear 9.0-inch drum; 10.0-inch drum with Payload Pkg/S/C/4x4 models

Assist type Vacuum, ABS
Reply With Quote
  #18
Old 10-20-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
The Ranger really does get disc brakes for 2010. I'm looking at the removal and installation manual on Ford's tech service website. Looks like a good setup.

Last edited by rngprerunner; 10-20-2009 at 07:13 PM.
Reply With Quote
  #19
Old 10-20-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by 0RangerEdge2 View Post
The Ranger really does get disc brakes for 2010. I'm looking at the removal and installation manual on Ford's tech service website. Looks like a good setup.
Post it up! I want to check it out.
Reply With Quote
  #20
Old 10-20-2009
rngprerunner's Avatar
Member

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by 0RangerEdge2 View Post
The Ranger really does get disc brakes for 2010. I'm looking at the removal and installation manual on Ford's tech service website. Looks like a good setup.
I still don't buy it. If they got disks it would be on the Media Site, it's kind of big news. This isn't the first time they have been listed as having them and didn't.

Last edited by rngprerunner; 10-20-2009 at 07:21 PM.
Reply With Quote
  #21
Old 10-20-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Hold on, I'll get the good stuff.
Reply With Quote
  #22
Old 10-20-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Here you go. I assume the size is gigantic, but it's the best way so you can view it.

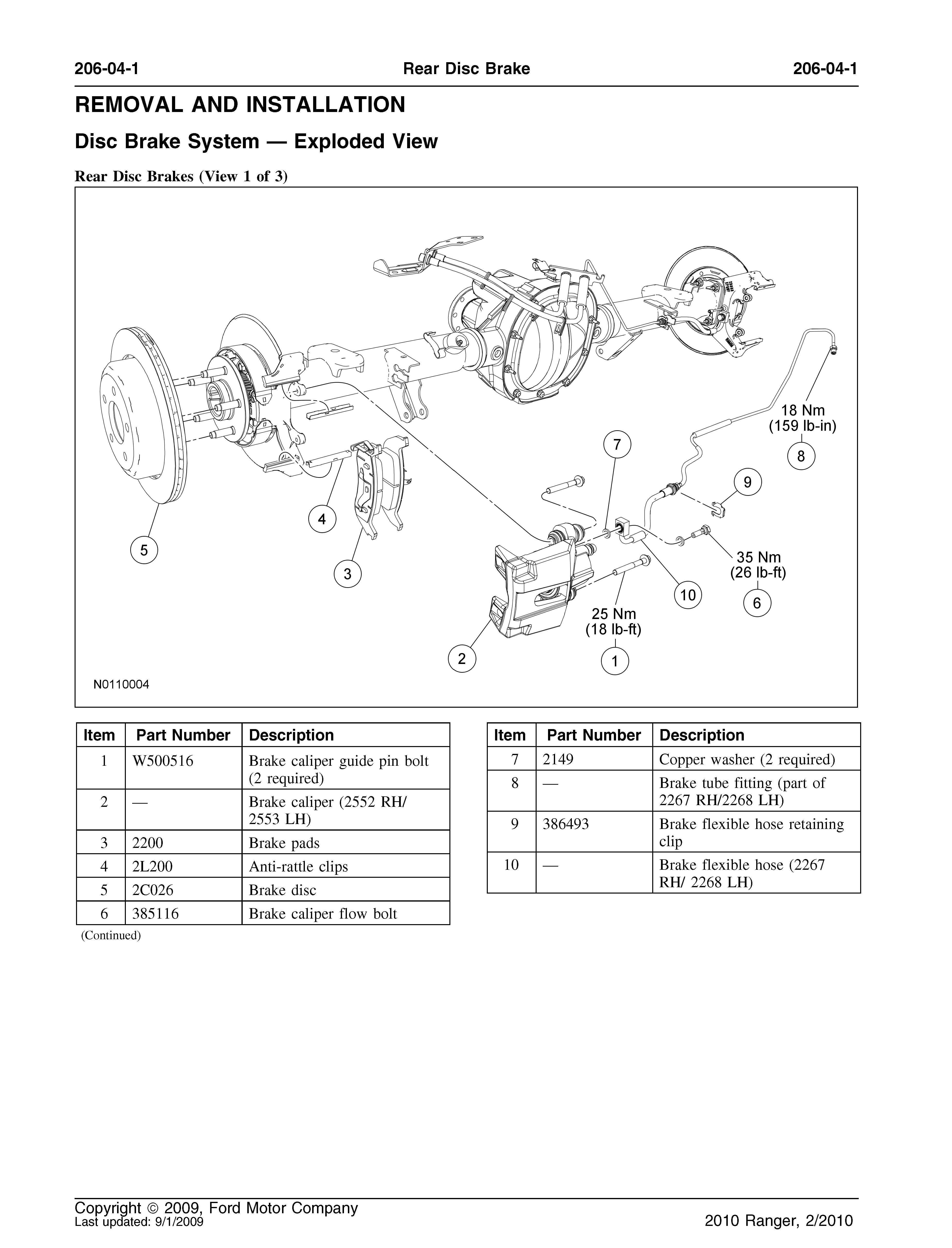

Name:  DiscBrakes_Page_1.jpg
Views: 8
Size:  932.0 KB

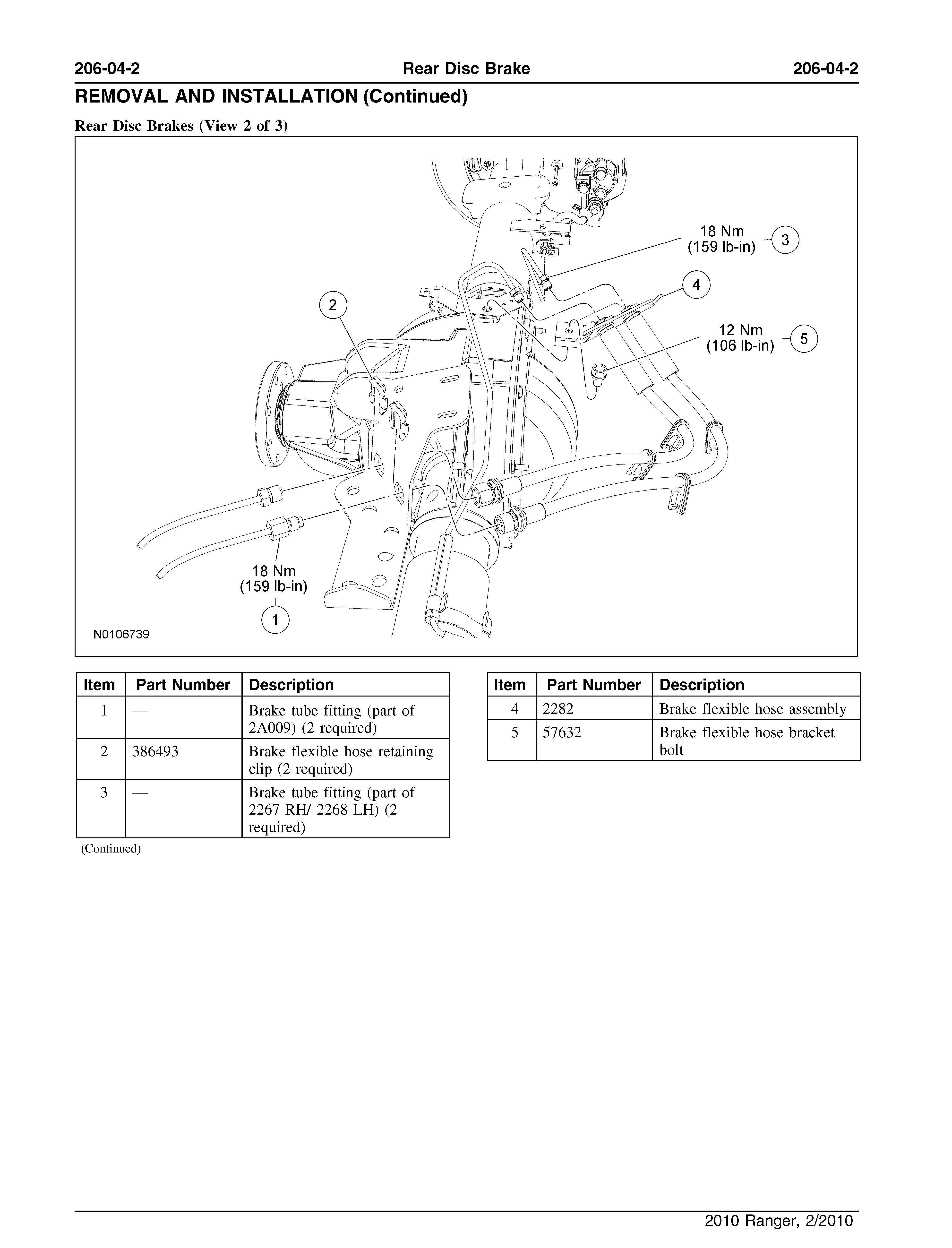

Name:  DiscBrakes_Page_2.jpg
Views: 9
Size:  704.8 KB

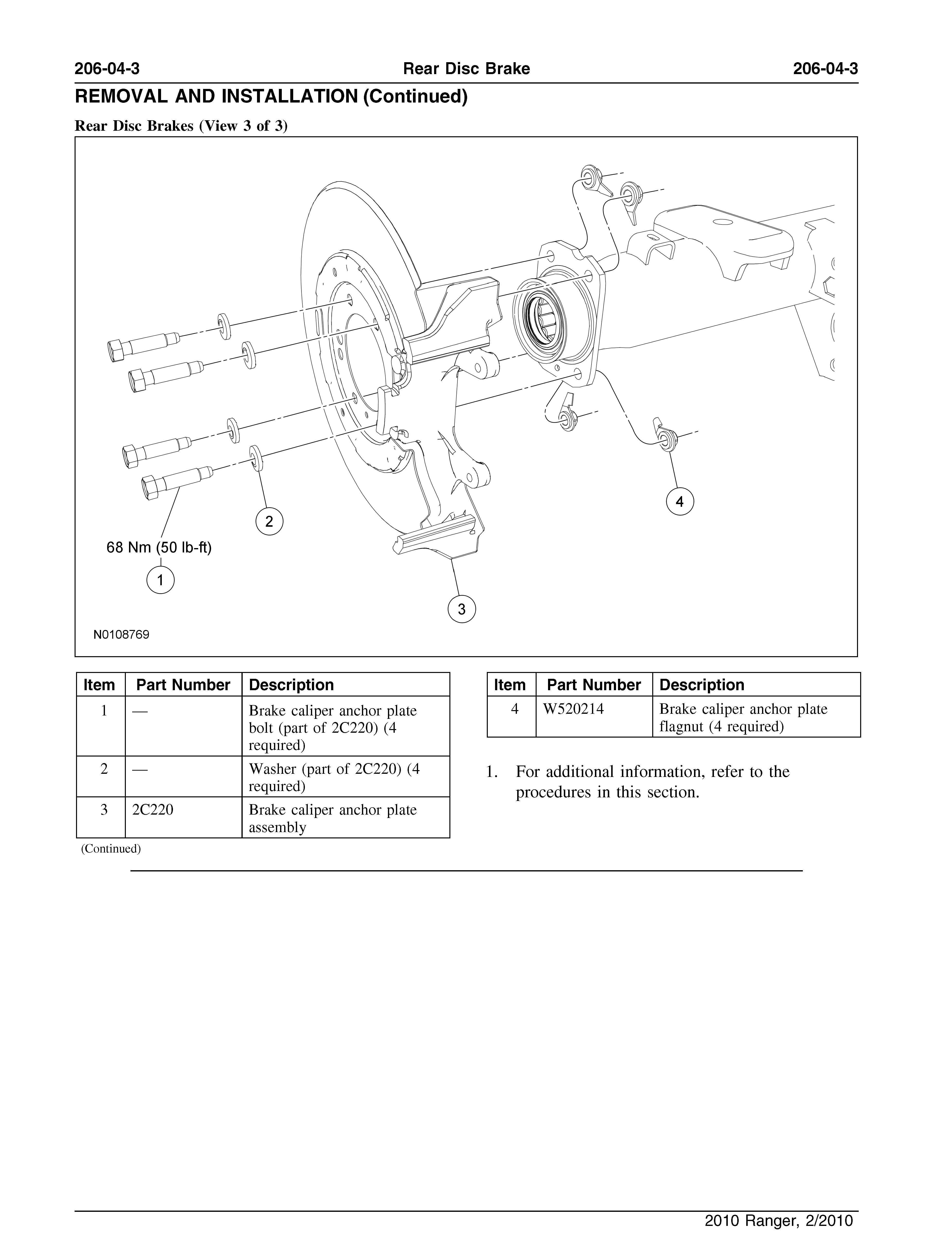

Name:  DiscBrakes_Page_3.jpg
Views: 10
Size:  697.2 KB

Last edited by 0RangerEdge2; 10-20-2009 at 07:23 PM. Reason: Pictures way toooooo big
Reply With Quote
  #23
Old 10-20-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Sweet!! I wonder if they really are vented like the picture shows. I also find it weird that there are two brake lines coming down from the frame, is that for the special brake change thing?
Reply With Quote
  #24
Old 10-20-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
ill take my camera and get pics of the 2010s we have at work, and see if it is true or not
Reply With Quote
  #25
Old 10-20-2009
rngprerunner's Avatar
Member

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Interesting... that will be cool if it's true. And if it is I wonder why it wasn't mentioned, since it's kind of a big deal. Even the spec sheets show drum rear.

The Ford dealer by my office has three of them, I may swing by if the freeway is still backed up when I leave.

And the two brake lines are for the brake biased traction control and roll stability control systems. Its so that the computer can brake each wheel individually.
Reply With Quote
