  #26
Old 10-20-2009
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Quote:
Originally Posted by Dangerranger01 View Post
Sweet!! I wonder if they really are vented like the picture shows. I also find it weird that there are two brake lines coming down from the frame, is that for the special brake change thing?
I believe it is for the RSC... Cause it uses the brakes to help keep you from rolling
Reply With Quote
  #27
Old 10-20-2009
rngprerunner's Avatar
Member

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by rngprerunner View Post
And the two brake lines are for the brake biased traction control and roll stability control systems. Its so that the computer can brake each wheel individually.
Quote:
Originally Posted by btm757 View Post
I believe it is for the RSC... Cause it uses the brakes to help keep you from rolling
I already explained it... lol

And I must say, I was wrong. I still can't believe there is no literature on this, officially from Ford anyway, since it's a huge deal. Or maybe it's just a big deal to us and not to the rest of the world. But here it is... rear disks on a 2010 Ranger.

Reply With Quote
  #28
Old 10-20-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
looks to me like it's a modified explorer set up... now it makes me wonder why they ditched the 31spline ranger axle?? or maybe it just makes be think that RSC is the reason they ditched the 31spline. now that both 7.5 and 8.8 get the same brakes, which makes them directly swappable with eachother, 31spline are not. Looks like they rotated the brake mounting flange too.
Reply With Quote
  #29
Old 10-20-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Reply With Quote
  #30
Old 10-20-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Man I want rear discs!
Reply With Quote
  #31
Old 10-20-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
time to go to the dealership. lol

* IF I ever get another ranger it will be the coil sprung version.
Reply With Quote
  #32
Old 10-20-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by GrafixGuy View Post
time to go to the dealership. lol

* IF I ever get another ranger it will be the coil sprung version.
AND 2.3L...


sucks you can't get a 2wd with a 4.0 anymore. :(

(at least I think i'm right?)
Reply With Quote
  #33
Old 10-20-2009
ClubFoot's Avatar
Member

Join Date: Sep 2008
Location: San Diego, Cailfornia
Posts: 269
What happened to the FX4?!
Reply With Quote
  #34
Old 10-20-2009
dangelj316's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Yuma, AZ
Posts: 813
I wonder if we could purchase all the 2010 hardware to swap ours over to disc??? Anybody work at Ford, that could find out the cost?
Reply With Quote
  #35
Old 10-20-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by dangelj316 View Post
I wonder if we could purchase all the 2010 hardware to swap ours over to disc??? Anybody work at Ford, that could find out the cost?
I was wondering the same thing, although it is probably cheaper to go aftermarket.
Reply With Quote
  #36
Old 10-20-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by ClubFoot View Post
What happened to the FX4?!
axed/dropped.

Quote:
Originally Posted by dangelj316 View Post
I wonder if we could purchase all the 2010 hardware to swap ours over to disc??? Anybody work at Ford, that could find out the cost?
you could....but DAMN the price wouldn't be nice. It's alot cheaper and alot easier to do mustang or Cobra brakes. Damn near a bolt-on process. And based upon the diagrams straight from Ford posted above, it would NOT be doable to a 09 and older axle because of the brake mounting flanges on the axle. Check out Dangerranger01's project log for disc swap on 28spline on the cheap(pretty much).
Reply With Quote
  #37
Old 10-20-2009
dangelj316's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Yuma, AZ
Posts: 813
Probably. . . but we'll see. Maybe i'll swing down to Ford tomorrow.
Reply With Quote
  #38
Old 10-20-2009
SVT01RANGER's Avatar
Member
iTrader: (2)

Join Date: Jun 2004
Location: West Eugene, OR
Posts: 3,634
i was on the fordvehicles site,a dn i noticed in the building part the interior has a level II shifter... probally a generic pic, but i thought they axed the LVL II a couple years ago
Reply With Quote
  #39
Old 10-21-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by SVT01RANGER View Post
i was on the fordvehicles site,a dn i noticed in the building part the interior has a level II shifter... probally a generic pic, but i thought they axed the LVL II a couple years ago
It may be a '09 build page....'2010 is now up as of at least yesterday when I was on it. None of the pics I saw yesterday had the chrome shifter or the Fx4 gauges. The Fx4 LI/LII hybrid package(called simply Fx4 Off Road) with manual still got the chrome shifter in '09, now that the Fx4 package is gone, I assume the chrome shifter is gone as well.
Reply With Quote
  #40
Old 10-21-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by Fx4wannabe01 View Post
It may be a '09 build page....'2010 is now up as of at least yesterday when I was on it. None of the pics I saw yesterday had the chrome shifter or the Fx4 gauges. The Fx4 LI/LII hybrid package(called simply Fx4 Off Road) with manual still got the chrome shifter in '09, now that the Fx4 package is gone, I assume the chrome shifter is gone as well.

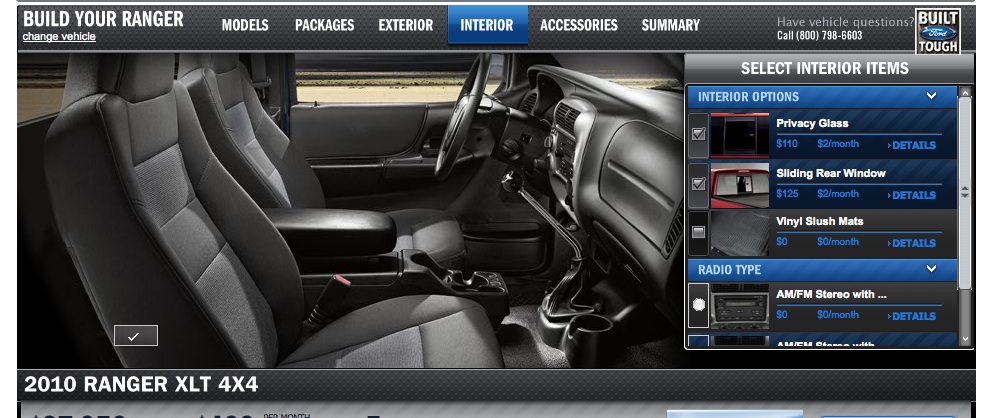

It shows it there during the build and price page too
Attached Thumbnails
2010 to get REAR disc Brakes!-screen-shot-2009-10-21-1.11.15-am.jpg
Reply With Quote
  #41
Old 10-21-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 04blackedge View Post
It shows it there during the build and price page too
OWNED by morgue anne! lol.

I'm still leanin towards that being a generic pic....it's even got the vinyl floor of the Fx4. OH! And it has an incorrect cubby below the radio bezel. There's the aux input and a keyed hole on 2010's...I'm thinking curtain airbag shutter offers? Ford 2010 site ain't letting me blow up the gallery page. Makes me wonder if XLT's get carpet or vinyl now...hmm...trip to the dealer to solver my grille inquiries and the vinyl floor on an XLT...


*sorry Trent if you don't like my nickname for ya! let me know i'll edit it!
Reply With Quote
