ABS 4x4 question (bob) - Page 2 - Ranger-Forums - The Ultimate Ford Ranger Resource


General Technical & Electrical General technical and electrical discussion for the Ford Ranger that does not fit in any other sub-forum.

Reply

LinkBack Thread Tools Search this Thread
  #26
Old 12-26-2007
04 EDGE
Unregistered User

Posts: n/a
when i shift it to 4 low the 4x4 light is on only. i know the 4 low light works because i had to reverse the wires as i had them hooked up backwards at first. it was showing 4 low in 4 high. i'm so confused lol !

maybe my linkage is not adjusted right or maybe the getto fabed bronco II shifter is not liking the switch?
Reply With Quote
  #27
Old 12-26-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
I've haven't had any trouble with mine but I've heard complaints of them sticking before. The switch is 2-stage and should ground the 4x4 wire in 4HI and both wires in 4LO. You should be able to ohm it to see if it is OK. You can confirm that the cluster is working right by grounding each wire individually and watching the indicator lights.
Reply With Quote
  #28
Old 12-29-2007
04 EDGE
Unregistered User

Posts: n/a
i ordered the newer switch yesterday along with the pig tail or plug end.

next week i'll see if it works and shows both lights when in 4 low
Reply With Quote
  #29
Old 01-09-2008
04 EDGE
Unregistered User

Posts: n/a
ok so heres the new parts. can anyone guess what the one on the left is?

Name:  0109081011.jpg
Views: 13
Size:  37.1 KB

yeppie

Name:  0109081100.jpg
Views: 13
Size:  22.7 KB

and ford sure is proud of the pig-tail connector, it cost 22 bucks!!!!
Reply With Quote
  #30
Old 01-09-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Quote:
Originally Posted by 04 EDGE
and ford sure is proud of the pig-tail connector, it cost 22 bucks!!!!
You must get a good discount. Most of the Motorcraft pigtal kits retail for $35~40 ...
Reply With Quote
  #31
Old 01-09-2008
04 EDGE
Unregistered User

Posts: n/a
i got connections lol

i have a wholesale account at butmans in ypsi. i have known them for 23 years. and am a somewhat good friend with the owner (parents bought there first new car there in 1973).

25% off list price.
Reply With Quote
  #32
Old 01-09-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Good job on the 4x4 lights! Looks like the switch was out to lunch.
Reply With Quote
  #33
Old 01-09-2008
04 EDGE
Unregistered User

Posts: n/a
so bob, whats the part on the left?
Reply With Quote
  #34
Old 01-09-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
The plastic bushing for the t-case shifter? I dunno lol just a guess


BTW that dang pigtail cost me $29 when I bought it....... :(
Reply With Quote
  #35
Old 01-09-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Quote:
Originally Posted by 04 EDGE
so bob, whats the part on the left?
I don't think I've ever seen one of those so I'll have to guess: is it a plug to cover the hole left by the speedo cable in the 1354 t-case?
Reply With Quote
  #36
Old 01-09-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by rwenzing
is it a plug to cover the hole left by the speedo cable in the 1354 t-case?
i agree.
Reply With Quote
  #37
Old 01-10-2008
04 EDGE
Unregistered User

Posts: n/a
Quote:
Originally Posted by rwenzing
I don't think I've ever seen one of those so I'll have to guess: is it a plug to cover the hole left by the speedo cable in the 1354 t-case?
we have a winner!

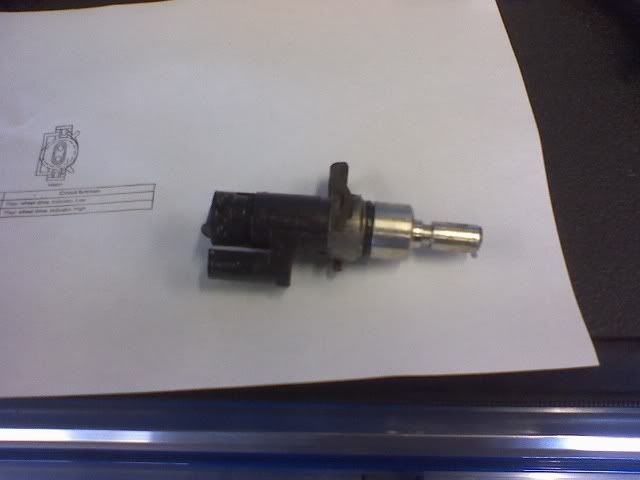

it replaces this contraption, that leaked and i tried to getto fix it to no avail.

Name:  0109081018a.jpg
Views: 13
Size:  20.0 KB
Reply With Quote
