Air only blows through top dash vents...

Well for some reason the climate control air only blows through the top vent up on the dash and won't blow through the normal vents no matter what setting its on.

Its like its on defrost all the time, anyone know what could possibly be wrong here?
Reply With Quote
  #2
Old 04-29-2008
02rangermayhem's Avatar
Member

Join Date: Jan 2008
Location: C.Springs
Posts: 573
vac. leak or possibly a bad switch.
Reply With Quote
  #3
Old 04-29-2008
Member
Thread Starter

Join Date: Apr 2008
Location: Texas City TX
Posts: 11
Quote:
Originally Posted by 02rangermayhem View Post
vac. leak or possibly a bad switch.
pretty sure its not a vac leak or it would have a rough idle id assume
Reply With Quote
  #4
Old 04-29-2008
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
it's a vaccuum leak most likely. Check that little black ball underneath the airbox assembly on the passenger fender well, make sure there are no cracks, missing vaccuum lines, etc.
Reply With Quote
  #5
Old 04-29-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
I have this same problem and was told to look behind the glove compartment... couldn't find anything...

So I should look under the passenger fender well for a black shaped ball? Does it look like the smog ball?
Reply With Quote
  #6
Old 04-29-2008
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
No vac to the system. without vacume the system "defaults" to deforst on the blend doors.
Reply With Quote
  #7
Old 04-29-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1


there are a group of colored hoses that come from the back of the HVAC head unit. check to make sure that one of those isn't cracked or off.
Reply With Quote
  #8
Old 04-29-2008
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
The vacumm ball is in the fenderwell on 4wd's and is hard to get to, its beside the airbox but inside the fender. On 2wd's the ball is below the alt and airbox in the engine compartment. If you open the glove box there are plstic pieces on both sides that keep the glovebox from swinging all the way down, if you push these in the glove box will swing down and you will see a vacuum plug with different colored hoses. If you look back towards the firewall you will see the actuator for the blend door. Its either electric or vacuum depending on the year of your truck. BTW if your truck is a 4wd the vacuum is shared with the 4wd system and could be a leak anywhere from the manifold to the heater control or the hubs on the front wheels, you will have to trace the lines.
John
Reply With Quote
  #9
Old 04-29-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
I'll check it again, but is this fixable from the inside glove box or is this something that I have to do outside the truck? Like I said, I checked the back of the glove box and just can't seem to find any cracked wires, everything looks legit but I have no idea where the wires lead to to check them. There's very little space to move around and check things.
Reply With Quote
  #10
Old 04-29-2008
Member

Join Date: Nov 2005
Location: Elizabeth City, NC
Posts: 767
The vaccum hose you need to check goes TO the black sphere, under the hood.

They have a bad habit of getting broken, burnt, etc.

If that one is good (inspect its entire length) THEN you need to look at the one from the sphere to the glove compartment area.

The sphere itself could be cracked too.
Reply With Quote
  #11
Old 04-29-2008
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
since your truck is a 2002 I believe the blend door is actuated by a electric control not vacuum. I am not sure how to trouble shoot it other than going thru a wiring diagram and testing. Maybe someone else will chime in.
John
Reply With Quote
  #12
Old 04-29-2008
02rangermayhem's Avatar
Member

Join Date: Jan 2008
Location: C.Springs
Posts: 573
Quote:
Originally Posted by Deftsound View Post
pretty sure its not a vac leak or it would have a rough idle id assume
your a/c is run by vac pressure. and the default is defrost. so no vac means no a/c through the vents.


Quote:
Originally Posted by lifted97ranger View Post

there are a group of colored hoses that come from the back of the HVAC head unit. check to make sure that one of those isn't cracked or off.

Quote:
Originally Posted by bwester04 View Post

Check that little black ball underneath the airbox assembly on the passenger fender well, make sure there are no cracks, missing vaccuum lines, etc.
what they said
Reply With Quote
  #13
Old 04-29-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
Quote:
Originally Posted by Earl43P View Post
The vaccum hose you need to check goes TO the black sphere, under the hood.

They have a bad habit of getting broken, burnt, etc.

If that one is good (inspect its entire length) THEN you need to look at the one from the sphere to the glove compartment area.

The sphere itself could be cracked too.
I think I found the issue, but not sure how to fix it.
I'll post pics of my findings shortly...

Last edited by Prerunner-Ranger; 04-29-2008 at 03:19 PM.
Reply With Quote
  #14
Old 04-29-2008
leadfoot's Avatar
Member

Join Date: Oct 2007
Location: MA
Posts: 894
Quote:
Originally Posted by wvcat View Post
since your truck is a 2002 I believe the blend door is actuated by a electric control not vacuum. I am not sure how to trouble shoot it other than going thru a wiring diagram and testing. Maybe someone else will chime in.
John
My 98 uses the electric blend door which is located right behind the glove box. on the top of the duct is where the actuator(black or white) is but some other year rangers use a cable connected blind door.

The link between the actuator and blend valve busted in my truck. There is a free fix but I am not certain that this is your problem. When mine was busted I had no temp control and my AC blew only hot air but Max AC worked fine as well as all my other vent controls. https://www.ranger-forums.com/forum2...blend+door+fix

However air seems to come out the defrost vents when the control is set to foot vents. Its not slowly seeking out but its not fully open. It is slightly less air than on the defrost/foot position.

Sorry if it was already stated but where is the valve/valves located that direct air through the vents? I only know where the Max AC valve is.
Reply With Quote
  #15
Old 04-29-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
Update

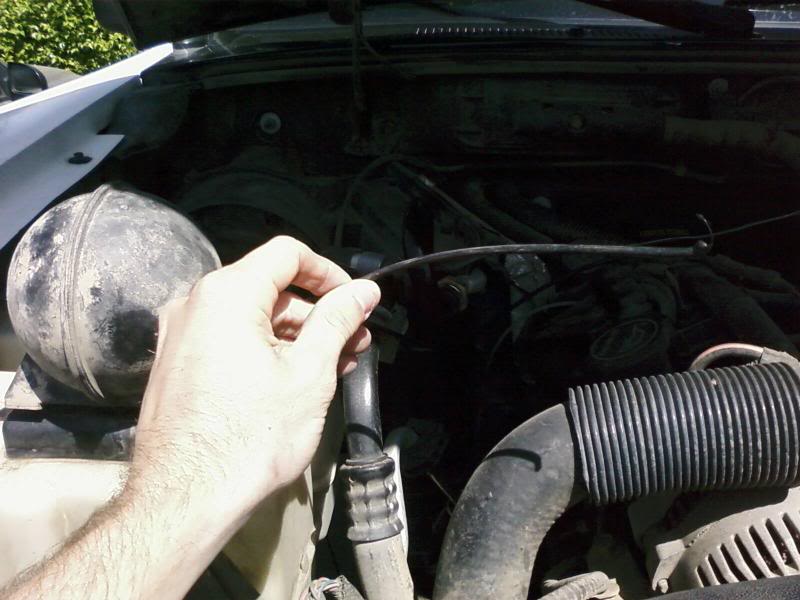

Well I just went outside and took some pics of my findings...

Not exactly sure what's going on but it looks like something got melted... The red wire seems okay:

Name:  z1.jpg
Views: 4230
Size:  66.5 KB
Name:  z2.jpg
Views: 3800
Size:  59.7 KB


Please advise on how to fix this issue... I believe this might be why my A/C won't blow out of the vents besides the defrost...
Reply With Quote
  #16
Old 04-29-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Yea my vac. ball thing got a hole in the side of it and it only blew out on defrost. I replaced the ball and it worked fine afterwards
Reply With Quote
  #17
Old 04-29-2008
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
Yeah I had to replace one of the lines on my 2000 because I drove around without the fender well, and yeah got a bit mascerated by the tire, oops!
Reply With Quote
  #18
Old 04-29-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
So should I replace the line that is melted or the whole ball?

How hard is it?
Reply With Quote
  #19
Old 04-29-2008
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Quote:
Originally Posted by Prerunner-Ranger View Post
So should I replace the line that is melted or the whole ball?

How hard is it?
Unless the vacuum reservoir is cracked or otherwise leaking just trim the burnt ends off the plastic lines. Splice in some rubber vacuum line between the two ends and you should be good to go.
Reply With Quote
  #20
Old 04-29-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
Quote:
Originally Posted by Rev View Post
Unless the vacuum reservoir is cracked or otherwise leaking just trim the burnt ends off the plastic lines. Splice in some rubber vacuum line between the two ends and you should be good to go.
Where is that burnt end supposed to plug into? The red wire looks secure and good still but that other rubber peace connected to the ball is burnt off and not sure where its supposed to go.
Reply With Quote
  #21
Old 04-29-2008
Member
Thread Starter

Join Date: Apr 2008
Location: Texas City TX
Posts: 11
thanks for the responses everyone! i wonder if this vacuum leak might be whats causing the cel to be on...
Reply With Quote
  #22
Old 04-30-2008
Mr. Special's Avatar
Member

Join Date: May 2005
Location: Irvine, CA
Posts: 3,411
Not to thread jack but..... My vents, ac and such work just fine at idle, but randomly when i accelerate it stops blowing from the vents and sends 100% of the airflow to the defroster vents. It will keep it blowing in defrost until im leveled out for a good few seconds. What the heck could be causing this?

Oh and it isnt just if i am at WOT or anyhting, it is at random rpm acceleration. Sometimes when i dont even hit 3k it will stop until im back to crusing speed/rpm
Reply With Quote
  #23
Old 04-30-2008
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Quote:
Originally Posted by Prerunner-Ranger
Where is that burnt end supposed to plug into? The red wire looks secure and good still but that other rubber peace connected to the ball is burnt off and not sure where its supposed to go.
One line connects to the intake manifold the other goes thru the bottom of the A/C box on the firewall.

Quote:
Originally Posted by Mr. Special
Not to thread jack but..... My vents, ac and such work just fine at idle, but randomly when i accelerate it stops blowing from the vents and sends 100% of the airflow to the defroster vents. It will keep it blowing in defrost until im leveled out for a good few seconds. What the heck could be causing this?

Oh and it isnt just if i am at WOT or anyhting, it is at random rpm acceleration. Sometimes when i dont even hit 3k it will stop until im back to crusing speed/rpm
Its caused by a vacuum leak in the supply or control for the blend door actuator. At idle your engine pulls higher vacuum (throttle plates closed). Off idle the vacuum drops (throttle plates open)
Reply With Quote
  #24
Old 04-30-2008
Rockledge's Avatar
Member

Join Date: Nov 2006
Location: Connecticut
Posts: 479
Just to clarify, the blend door and blend door actuator (BDA) are temperature control mechansims and have nothing to do with air flow or direction.

Airflow (venting) is controlled entirely by vacuum on the Ranger. A leak in the vacuum control circuit may occur during acceleration (slow leak), at all times (large leak), or only when specific functions are selected (indicating a leak in that portion of the circuit).
Reply With Quote
  #25
Old 04-30-2008
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Quote:
Originally Posted by Rockledge View Post
Just to clarify, the blend door and blend door actuator (BDA) are temperature control mechansims and have nothing to do with air flow or direction.

Airflow (venting) is controlled entirely by vacuum on the Ranger. A leak in the vacuum control circuit may occur during acceleration (slow leak), at all times (large leak), or only when specific functions are selected (indicating a leak in that portion of the circuit).
I stand corrected by Rockledge...Meant to write panel/defrost door actuator.
Reply With Quote
