  #26
Old 04-30-2008
leadfoot's Avatar
Member

Join Date: Oct 2007
Location: MA
Posts: 894
Quote:
Originally Posted by Rev View Post
I stand corrected by Rockledge...Meant to write panel/defrost door actuator.
And where is that?
Reply With Quote
  #27
Old 04-30-2008
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Reply With Quote
  #28
Old 05-01-2008
Rockledge's Avatar
Member

Join Date: Nov 2006
Location: Connecticut
Posts: 479
Quote:
Originally Posted by leadfoot View Post
And where is that?
The vacuum control unit is in the dash. When you are turning the **** to "MAX A/C" or "VENT" you are using it. Ford calls it an "A/C Heater Function Selector Vacuum Valve" which you can see in the diagram.

Reply With Quote
  #29
Old 06-11-2008
Member

Join Date: Jun 2008
Location: Naples, Fl.
Posts: 1
I wanted to thank all the participants in this thread. I had the exact problem with my 2005 Ranger. After a quick inspection I found a very small crack in a very small hose that i would have never found without knowing what to look for. Thanks again, you saved me a lot of time and money and most of all aggravation.
Reply With Quote
  #30
Old 06-11-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
x2.

I fixed mine as well.
Thanks R-F.
Reply With Quote
  #31
Old 07-23-2008
Member

Join Date: Jun 2008
Location: Long Beach, CA
Posts: 2
Ok I'm resurrecting this thread because I can't seem to find where the leak is on my 2000 Ranger, 2.5L. All vents work propertly except the recirulation door will not open when turned to Max A/C. Cold air blows out all the correct vents etc.

I hear a hissing sound coming from the A-C heater selection function valve only when either "Max AC" or "off" is selected. I tried replacing the fuction selector valve but I still hear the hissing with a new valve in there. It's not the recirculation door vacuum motor because I tried replacing that with no success. The vacuum hose that connects to the recirculation door vacuum motor does have some vacuum on it, but not enough to run the motor.

I am guessing there is a leak somewhere, but have know idea where. I looked at the lines under the hood that connect to the black ball and they look fine. black plastic ball looks fine. Any ideas???
Reply With Quote
  #32
Old 07-23-2008
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Trace that hose all the way back.
Reply With Quote
  #33
Old 07-23-2008
Member

Join Date: Jun 2008
Location: Long Beach, CA
Posts: 2
Quote:
Originally Posted by Johnbaum13 View Post
Trace that hose all the way back.
The white hose that connects to the vacuum motor runs behind the glove box and into the firewall. Not sure where it goes from there, and everything under the hood looks fine.
Reply With Quote
  #34
Old 07-26-2008
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
I believe the white vacuum line tees off and goes back through the firewall changing to a gray colored vacuum line going to the hot water valve that’s inline with one of the heater core hoses on the passenger’s side of the engine (Ref post 28 above).
Reply With Quote
  #35
Old 09-28-2008
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
So i noticed my Ranger started to do this to. I read through this thread and looked for a broken vacume line. i think i found one but not sure where it goes.

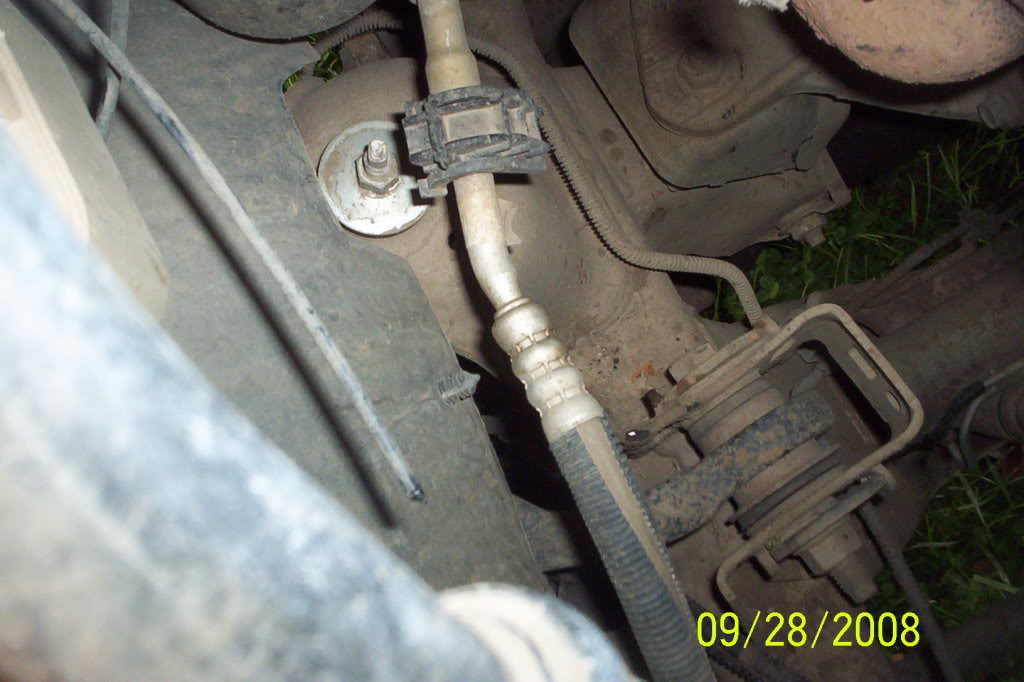

This is close to the place i found it.
Name:  Picture030.jpg
Views: 1174
Size:  86.8 KB

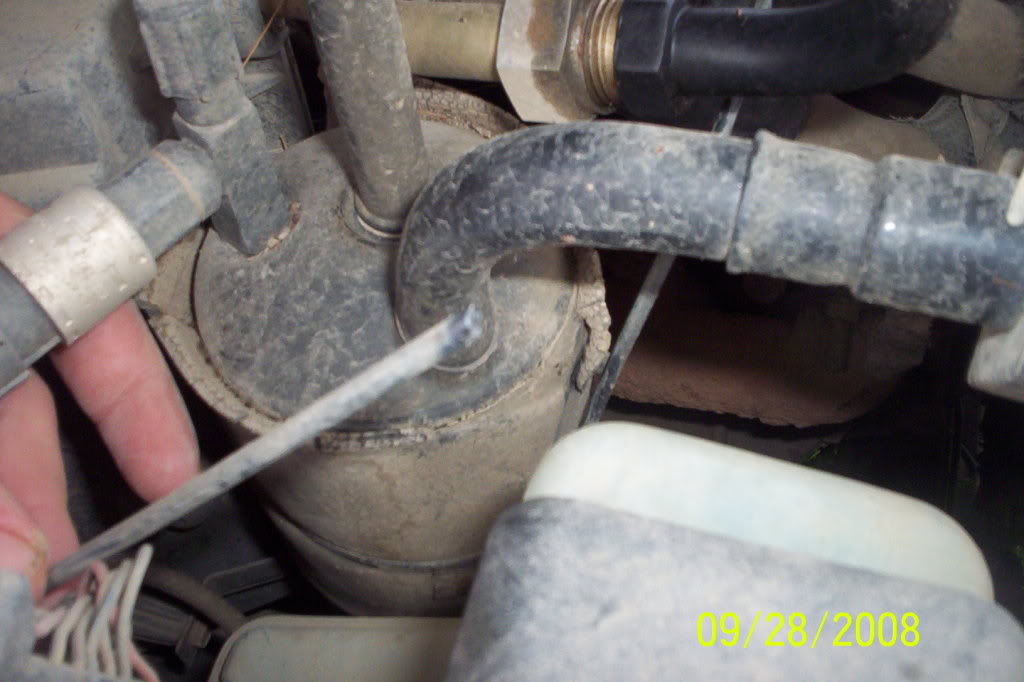

end of the hose.
Name:  Picture031.jpg
Views: 1180
Size:  77.4 KB

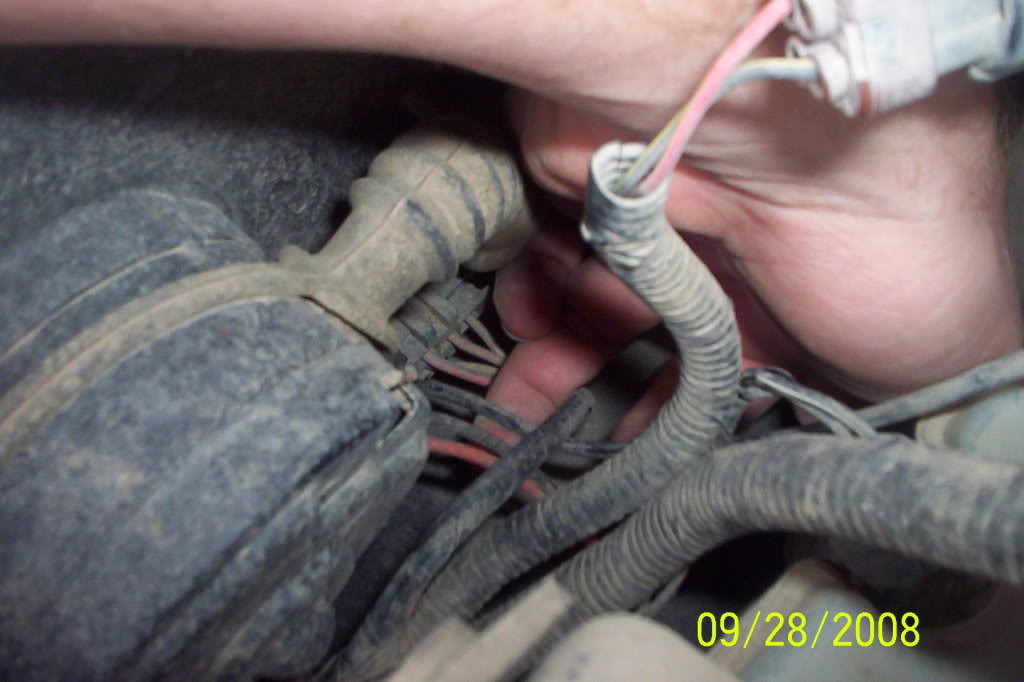

where it comes from.
Name:  Picture032.jpg
Views: 1182
Size:  72.4 KB
Hope fully somebody can help me out. Cant afford to have a machanic work on it right now.
Reply With Quote
  #36
Old 09-28-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
Run that line back to the black sphere.
Reply With Quote
  #37
Old 09-28-2008
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
Quote:
Originally Posted by Prerunner-Ranger View Post
Run that line back to the black sphere.

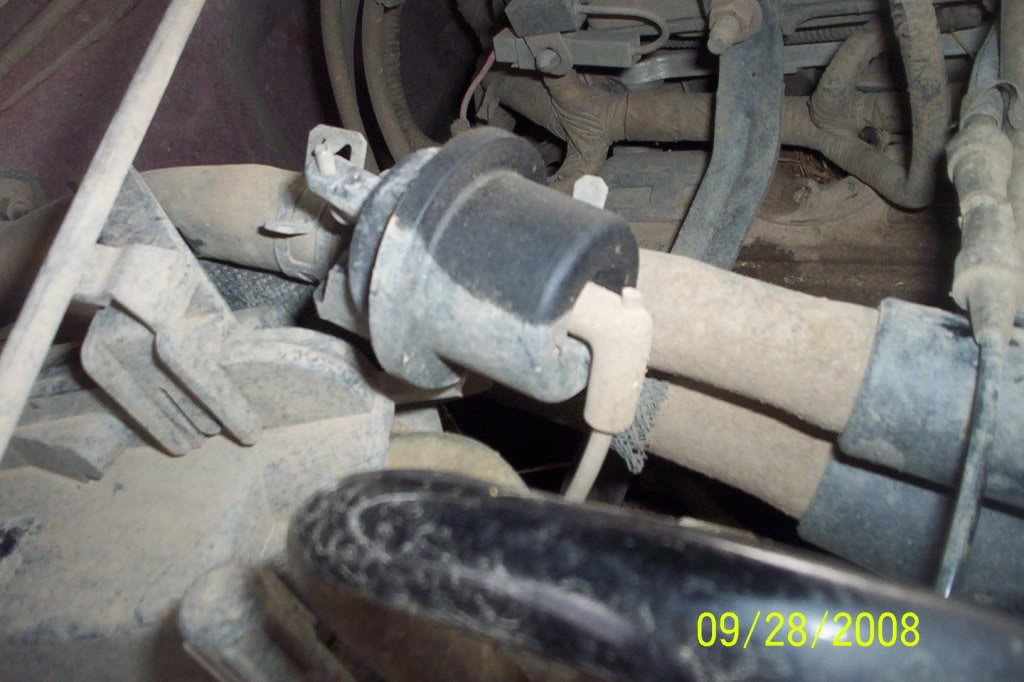

is this the black sphere your talking about?
Name:  Picture034.jpg
Views: 1180
Size:  85.7 KB
Name:  Picture033.jpg
Views: 1190
Size:  106.0 KB

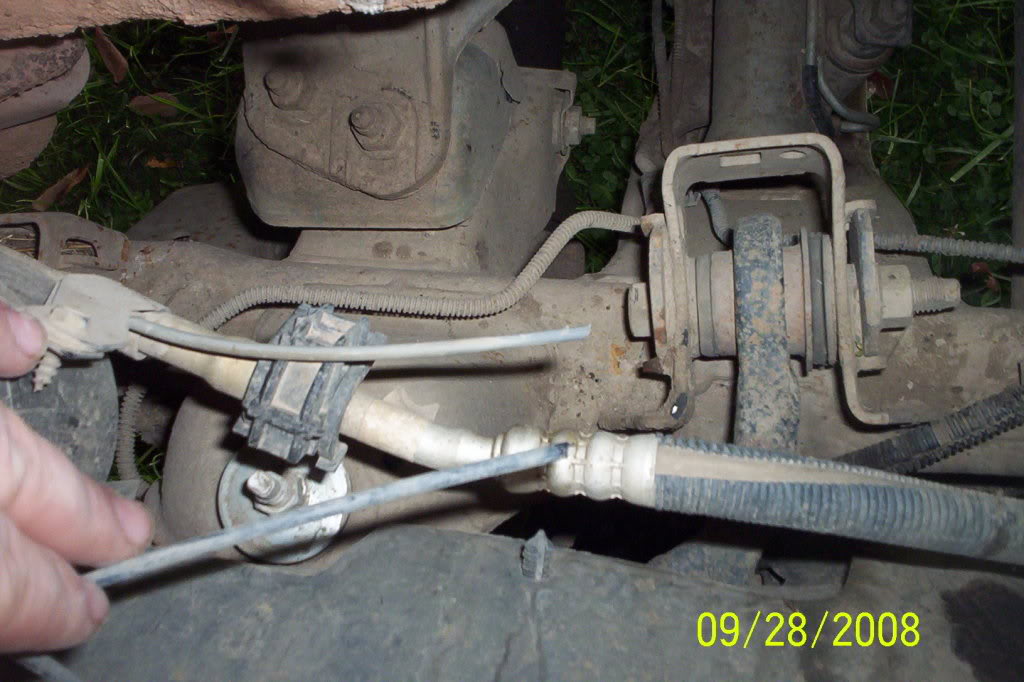

I found the other end and that is where it goes. Can i splice it back together or do i have to get a new hose? and where would i get one? thanks
Reply With Quote
  #38
Old 09-30-2008
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
You can splice it by just trimming the ends to clean it up, then putting regular vac line over the ends to fill the gap.
Reply With Quote
  #39
Old 09-30-2008
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
Quote:
Originally Posted by Johnbaum13 View Post
You can splice it by just trimming the ends to clean it up, then putting regular vac line over the ends to fill the gap.
Where can i get regular vac line? Thanks for the help.
Reply With Quote
  #40
Old 09-30-2008
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
any auto parts store, they sell it by the foot. I would suggest that when you trim up the ends, you cut off a little bit to take with you so you get the size line that fits snug around the plastic line.
Reply With Quote
  #41
Old 10-04-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
cool, i have a bijillion places i could have a vacuum leak after everything i've done and all its been through.


i wish i was still in school and had access to a smoke machine right about now



but anyways, +1 RF thanks. the parts store told me it was the blend door actuator, this saved me $40 possibly
Reply With Quote
  #42
Old 10-09-2008
ColdNapalm's Avatar
Member

Join Date: Sep 2008
Location: Jacksonville, Florida
Posts: 499
hmmm im in college right now ill have to take a look at this ive got the same problem air only blows through my top vents.... bought my truck that way..
Reply With Quote
  #43
Old 10-09-2008
Rockledge's Avatar
Member

Join Date: Nov 2006
Location: Connecticut
Posts: 479
Quote:
Originally Posted by Rockledge View Post
Airflow (venting) is controlled entirely by vacuum on the Ranger. A leak in the vacuum control circuit may occur during acceleration (slow leak), at all times (large leak), or only when specific functions are selected (indicating a leak in that portion of the circuit).
I can add a little more to this thread based on some first-hand experience. I had been having trouble for a some time with my Ranger's climate control system, the function selector would work fine in all modes except FLOOR. When I would set it to FLOOR the system would default directly to DEFROST. In other words, I had "a partial leak affecting only that part of the vacuum circuit".

So today I did a little troubleshooting and after a few minutes of snooping around, I found that the Yellow vacuum hose had been completely knocked off the PANEL/FLOOR vacuum door motor (which is located underneath the dash, above the gas pedal toward the center, tucked behind a small support brace).

There is a also a Blue vacuum hose connected to the same vacuum door motor, and it too was rather loosely connected. So I quickly put both hoses back on good and tight, then fired up the climate control system, and you guessed - problem fixed! It was as easy as that.
Reply With Quote
  #44
Old 03-09-2012
Member

Join Date: Jan 2012
Location: North Georgia
Posts: 7
does the "black ball" have a name? or is it just a vacuum reservoir?
Reply With Quote
  #45
Old 03-09-2012
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
That's its name. Vac res.
Reply With Quote
  #46
Old 03-09-2012
Vonhanson's Avatar
Member
iTrader: (5)

Join Date: Sep 2009
Location: Glencoe, Minnesota
Posts: 1,609
Wondering, the Op's problem. would this be the same case for my 95 lumina?
Reply With Quote
  #47
Old 03-09-2012
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Quote:
Originally Posted by Vonhanson View Post
Wondering, the Op's problem. would this be the same case for my 95 lumina?
Better off checking a Chevy forum for that.
There might be similarities but they might be different.
Reply With Quote
  #48
Old 03-09-2012
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
I <3 old *** threads.
Reply With Quote
  #49
Old 08-11-2013
Member

Join Date: Aug 2013
Location: College Park, MD
Posts: 1
Icon9 Same sort of problem

Refreshing this thread because I have the same issue.

All of a sudden air stopped coming from the "face vents" on my husband's 2002 Ranger XLT (3.0L V6 2WD). (Blows from defrost vents and feet vents). Have read enough on here to know it had to do with the vacuum reservoir (black sphere) or one of the vacuum lines. Immediately found that one of the two black vacuum lines coming off of the sphere has been severed. Also found a severed grey vacuum line the same size coming off a part of the engine that I can't name.

Should we splice these two together? We can't see any other severed lines viewing from above but I haven't gotten on the ground and looked up from underneath the engine.

We did find a black walnut (still in it's "fruit") hanging out in the engine compartment so I might know what kind of rodent severed the wires...

Last edited by 2002rangerwife; 08-11-2013 at 06:13 PM. Reason: Add comment.
Reply With Quote
  #50
Old 07-27-2014
Member

Join Date: Jul 2014
Location: Rolla mo
Posts: 1
Thanks for all the good information on this subject. I had this same problem and you all have helped to solve it, I will continue using this site for all my pickup problems.
Reply With Quote
