  #101
Old 07-01-2012
Member

Join Date: Apr 2010
Location: Canada
Posts: 150
+ whatever for the positive comments. I have auto up/down both sides and this is an awesome mod.
Reply With Quote
  #102
Old 07-02-2012
PSIJOE's Avatar
Member

Join Date: Nov 2011
Location: Sacramento, CA
Posts: 1,311


just listening in.
Reply With Quote
  #103
Old 07-02-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Me too !
Trying to decide when to do this .

Just waiting on the mirrors !

Last edited by Scrambler82; 07-02-2012 at 08:15 AM.
Reply With Quote
  #104
Old 07-02-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
I'll take pictures when i do mine and post them in here for you guys. hoping i have the motivation to do it tomorrow.
Reply With Quote
  #105
Old 07-03-2012
PSIJOE's Avatar
Member

Join Date: Nov 2011
Location: Sacramento, CA
Posts: 1,311
GET MOTIVATED! lol
Reply With Quote
  #106
Old 07-03-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Yea, didn't happen. Fog lights didn't come in today. I was gonna do it when those came in.
Reply With Quote
  #107
Old 07-04-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313

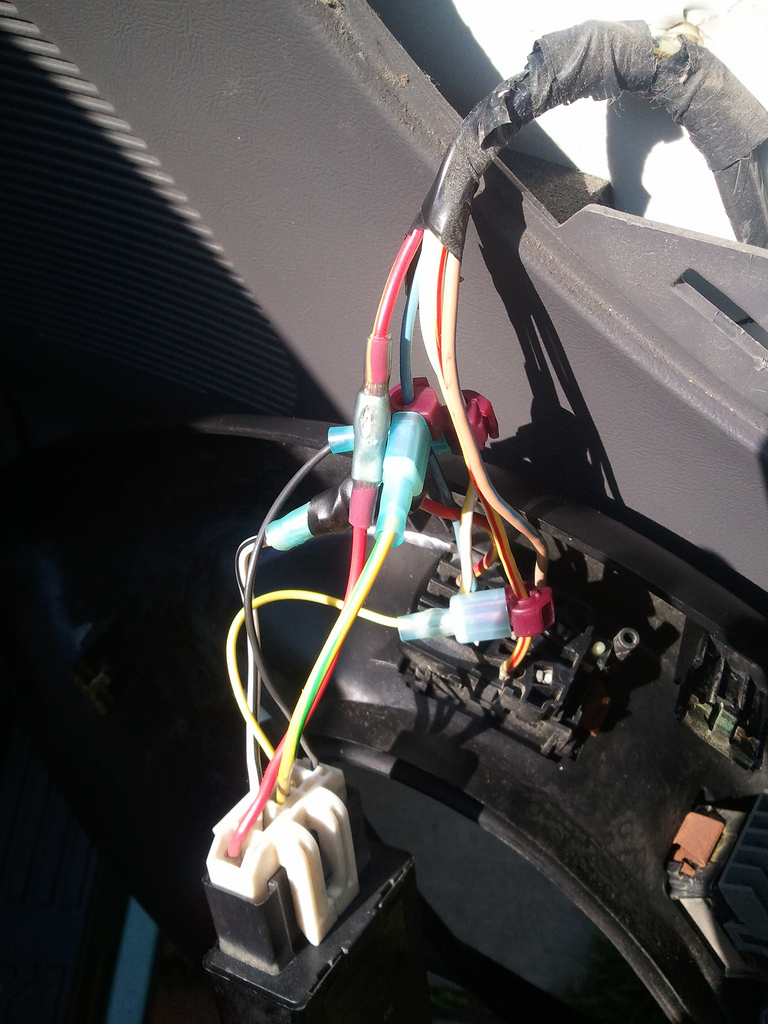

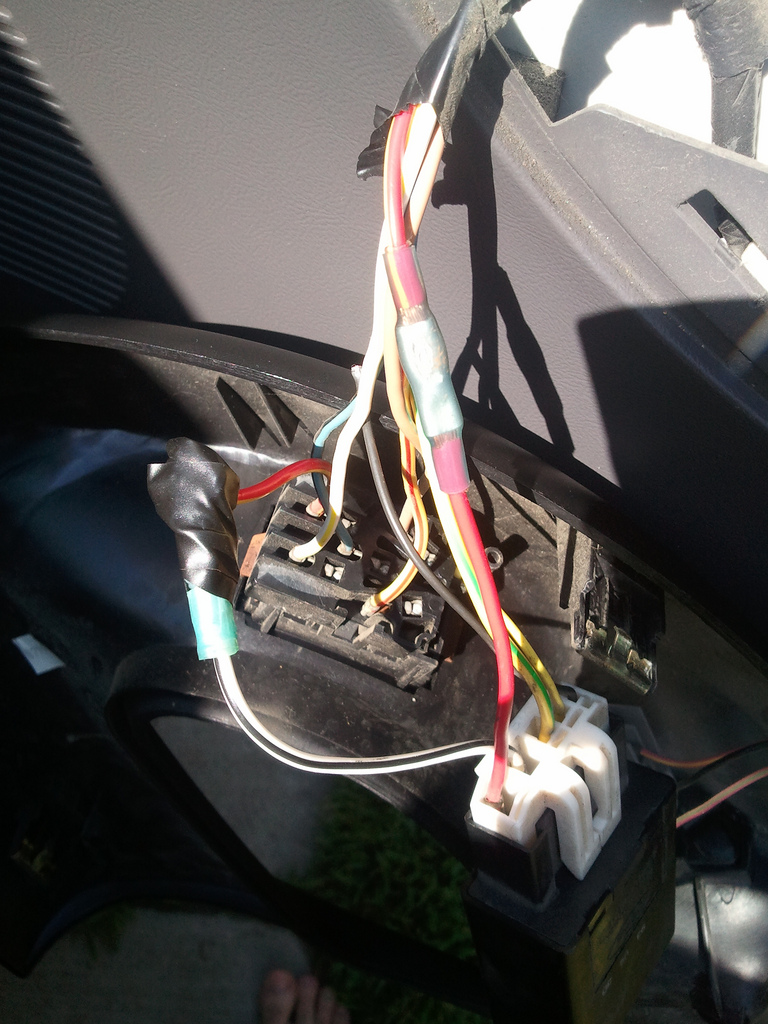

The Scotch lock Madness!


First step
Attached Thumbnails
Automatic Windows-7502039414_3ca0d7ef83_b.jpg   Automatic Windows-7502925892_c5dbc04191_b.jpg
Reply With Quote
  #108
Old 07-04-2012
SteelDirigible's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
heatshrink, pfft, show off. I'm not posting pics of mine haha.
Reply With Quote
  #109
Old 07-04-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
If only there was a way to T-tap without scotch lock.
the heat shrink was the only thing i had laying around.
Reply With Quote
  #110
Old 07-04-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Nice work, mine isn't pretty, but it works
Reply With Quote
  #111
Old 07-08-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by StxDangerRanger View Post
The Scotch lock Madness!

Good Pictures and nice job.
You could almost wire the Auto-Module in place just using these pictures.

IMHO…, Scotch Locks have a tendency to loosen up due to vibration, not always but it does happen, as any other lug type application they loosen up and a bad connection appears in its place.
Best way is to strip the sheathing off the main wire, use a standard wire stripper and make two cuts on the wire and cut out between the Stripper Cuts.
Tightly wrap the spliced wire to the cut out, good mechanical bond.
Solder it, clean it and either wrap tightly with a good quality Electrical Tape or use liquid Tape for a water resistant connection.
Now you have a wire/soldered joint that will not come loose, will not corrode if clean well enough and if wrapped well will not short out.

Soldered joints reduce bad connections in the future.

Scotch Locks are great for quick fixes, trail repairs or when time is not on your side but they have elevated them to where they are used to wire in everything.

OK off the box.
Reply With Quote
  #112
Old 07-08-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Yea, you don't have to preach how bad Scotch Locks are to me, They are cheap and a pain in the *** to fix if they corrode out (which they always do)
However, I wasn't getting the soldering iron out in 95 degree heat.
Reply With Quote
  #113
Old 07-09-2012
Member

Join Date: Apr 2010
Location: Canada
Posts: 150
Quote:
Originally Posted by Scrambler82 View Post
Good Pictures and nice job.
You could almost wire the Auto-Module in place just using these pictures.

IMHO…, Scotch Locks have a tendency to loosen up due to vibration, not always but it does happen, as any other lug type application they loosen up and a bad connection appears in its place.
Best way is to strip the sheathing off the main wire, use a standard wire stripper and make two cuts on the wire and cut out between the Stripper Cuts.
Tightly wrap the spliced wire to the cut out, good mechanical bond.
Solder it, clean it and either wrap tightly with a good quality Electrical Tape or use liquid Tape for a water resistant connection.
Now you have a wire/soldered joint that will not come loose, will not corrode if clean well enough and if wrapped well will not short out.

Soldered joints reduce bad connections in the future.

Scotch Locks are great for quick fixes, trail repairs or when time is not on your side but they have elevated them to where they are used to wire in everything.

OK off the box.
I used taps for my install and worked but then one connection got flaky... quickly found and fixed as I didn't have time to redo all the connections with solider but next problem I'll change out all the taps.
Reply With Quote
