Best way to connect Amp power wire to battery?

When I put my system in my truck, the end of the power wire that connects to the battery has a ring type connector, and I couldn't get the bolt out of the battery cable b/c it has like a prong holding it in, so I just cut the end of the ring to open it up so I could slide it around the bolt......I need a permenant (sp?) fix.........what I have now has been put on and taken off the battery now so many times, and dont thing it will hold up much longer. So how did ya'll attach em?
Reply With Quote
  #2
Old 11-24-2006
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
You can cut the ring connector to get it on.


New battery terminals are in order. Also i suggest the "big 3" upgrade.
Reply With Quote
  #3
Old 11-24-2006
SouthernMudSlinger's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Demorest,Ga
Posts: 1,724
Quote:
You can cut the ring connector to get it on.
thats what I did, but I kinda messed it up.
Reply With Quote
  #4
Old 11-24-2006
2003stealthedge's Avatar
Member

Join Date: May 2005
Location: The ILL State
Posts: 1,297
yea thast also kinda ghetto, that prong holding the battery clip on comes off easy take a flat head screw driver and pry it up and ur golden....
Reply With Quote
  #5
Old 11-24-2006
SouthernMudSlinger's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Demorest,Ga
Posts: 1,724
I'll try that again...........also, why does it spark when I first touch the power wire from my system to the battery post? I touch it to the post the first time and sparks once, then touch it the second and it dont spark.......its done it will my last truck too. Why does it do it?
Reply With Quote
  #6
Old 11-24-2006
2003stealthedge's Avatar
Member

Join Date: May 2005
Location: The ILL State
Posts: 1,297
cuz its completing the circuit for your system
Reply With Quote
  #7
Old 11-24-2006
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by SouthernMudSlinger
I'll try that again...........also, why does it spark when I first touch the power wire from my system to the battery post? I touch it to the post the first time and sparks once, then touch it the second and it dont spark.......its done it will my last truck too. Why does it do it?
The power amps have fairly large capacitors in them. When they first get power they draw a lot of current to charge up.
Reply With Quote
  #8
Old 11-24-2006
kevdeg16's Avatar
Member

Join Date: May 2006
Location: Metairie, louisiana
Posts: 207
you sure its not backwards? not that its not an easy fix, you can easily switch the tip. but usually the ring tip is for a bolt to go through it on the battery
Reply With Quote
  #9
Old 11-24-2006
Rolldogg's Avatar
Member

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424

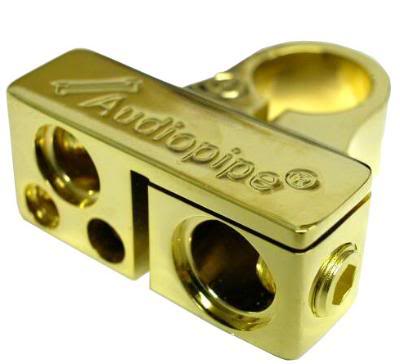

You're looking for something along the lines of this.......

Name:  BT-705.jpg
Views: 2
Size:  18.1 KB

I have something similar. It works well.

It replaces the original battery terminal that attaches to the positive post. Various sized openings for different gauged wire.
Reply With Quote
  #10
Old 11-25-2006
mx98ranger's Avatar
Member

Join Date: Apr 2005
Location: GA
Posts: 1,493
buy a nut at a parts store
Reply With Quote
