Center console removal

How do i get the center console out? its a ext. cab with the 4 doors and bucket seats with the full console (doesnt go to the dash). before i go in and man handle it id rather find out how to get it out
Reply With Quote
  #2
Old 12-31-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
like this not the same console but the same way of removing

Name:  HPIM2320.jpg
Views: 47
Size:  95.3 KB

Name:  HPIM2319.jpg
Views: 44
Size:  41.6 KB

Name:  HPIM2317.jpg
Views: 44
Size:  54.9 KB

Name:  HPIM2316.jpg
Views: 42
Size:  67.5 KB

Name:  HPIM2314.jpg
Views: 42
Size:  48.4 KB

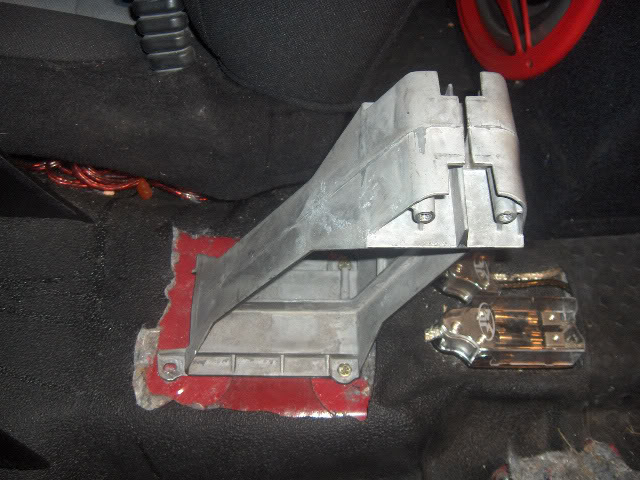

Name:  HPIM2313.jpg
Views: 43
Size:  76.4 KB
Reply With Quote
  #3
Old 12-31-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
^^YEP! even though that's the full console....the 'shorty' consolemounts the exact same.

BUT...


you must remove the cupholder part(pull up on the front, then slide forward)...you must do this to gain access to the two front screws as well.
Reply With Quote
  #4
Old 12-31-2008
DrMacZed's Avatar
Member

Join Date: Sep 2007
Location: Corvallis, Oregon
Posts: 92
Don't forget the two screws in the front under the cup holders.
Reply With Quote
  #5
Old 01-01-2009
optikal illushun's Avatar
Member
Thread Starter

Join Date: Oct 2004
Location: Coal Region, MTC to be exact...heart of the coal region.
Posts: 2,232
awsome guys, thanx!
