cleaning my maf sensor.......?

i want to clean my MAF sensor so i took it off and there is nothing to this thing.

i figured maybe there would be a screen or somthing inside it but no.

when you clean these things, what r u suppose to clean?

thanks.....jr
Reply With Quote
  #2
Old 07-08-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
QD contact cleaner in the areosol can....

Last edited by jtslmn720; 07-08-2006 at 06:48 PM.
Reply With Quote
  #3
Old 07-08-2006
telemaster1952's Avatar
Member

Join Date: Dec 2005
Location: Dover, Deleware
Posts: 3,481
i have never heard of cleaning them
Reply With Quote
  #4
Old 07-08-2006
Jeremy102579's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: North Tonawanda, NY
Posts: 431
but what part of the maf r u suppose to clean?
Reply With Quote
  #5
Old 07-08-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
you just spray the filiment.... check out this thread and youll get more answers...

https://www.ranger-forums.com/forum2...t=cleaning+maf
Reply With Quote
  #6
Old 07-08-2006
OffRoad 4x4's Avatar
Member

Join Date: Feb 2005
Location: Escondido, CA
Posts: 301
To clarify the statement above "Spray the Filament". This does not mean you hit the filament with a lot of pressure. The filament is delicate..... You gently spray the air horn and the filament to remove any oil or possible dust that has collected....

OR 4x4
Reply With Quote
  #7
Old 07-08-2006
Member

Join Date: Apr 2005
Location: leesbur, va
Posts: 66
do u have to let it air dry before you put it back on?
Reply With Quote
  #8
Old 07-08-2006
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
it'll be dry in seconds, i use brakleen electro-motive. i've used it on my maf, my tranny, all kinds of stuff.
Reply With Quote
  #9
Old 07-09-2006
OffRoad 4x4's Avatar
Member

Join Date: Feb 2005
Location: Escondido, CA
Posts: 301
Reading these posts reminded me that it was time to clean the MAF again!!!
Removed the conical K&N air filter from the MAF adapter and gently sprayed throttlebody cleaner (electronics plastic sensor safe type) onto the filaments, air horn and inside of housing. By the time I reinstalled the conical filter... the cleaner had evaporated....
Not a bad idea to do this every couple months since it only take about 10 minutes..... Just call it preventative maintenance.

OR 4x4
Reply With Quote
  #10
Old 07-09-2006
Jeremy102579's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: North Tonawanda, NY
Posts: 431
Quote:
Originally Posted by OffRoad 4x4
To clarify the statement above "Spray the Filament". This does not mean you hit the filament with a lot of pressure. The filament is delicate..... You gently spray the air horn and the filament to remove any oil or possible dust that has collected....

OR 4x4
i am having some kind of trouble determining what is the "Filament"?

air horn and filament?
Reply With Quote
  #11
Old 07-09-2006
OffRoad 4x4's Avatar
Member

Join Date: Feb 2005
Location: Escondido, CA
Posts: 301
IF you look very closely... there are a couple fine wires inside the air horn of the MAF.

OR 4x4
Reply With Quote
  #12
Old 07-09-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367

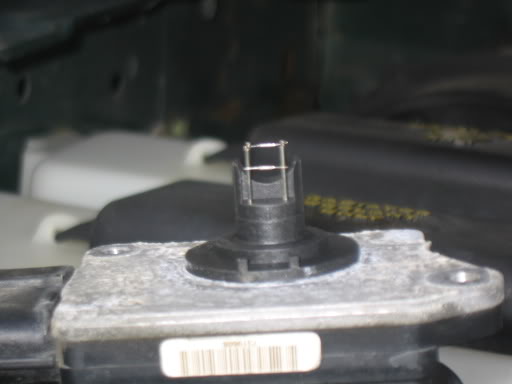

Name:  maf.jpg
Views: 17
Size:  19.4 KB
thats mine... i dont know what yours looks like but thats the filiment...
