Icon5 differences in fuse boxes ???

Hey guys,

Is a 2004 Ranger fuse box with a 3.0L different from a 2004 Ranger fuse box with a
4.0 SOHC.
I'm doing a engine swap, and I need to know if I can use my 3.0 fuse box because the
4.0L fuse box was damaged.
I'm pretty sure the exterior is identical, I just don't know about the inside stuff.
Here's a couple of pics so you can see what I'm talking about.

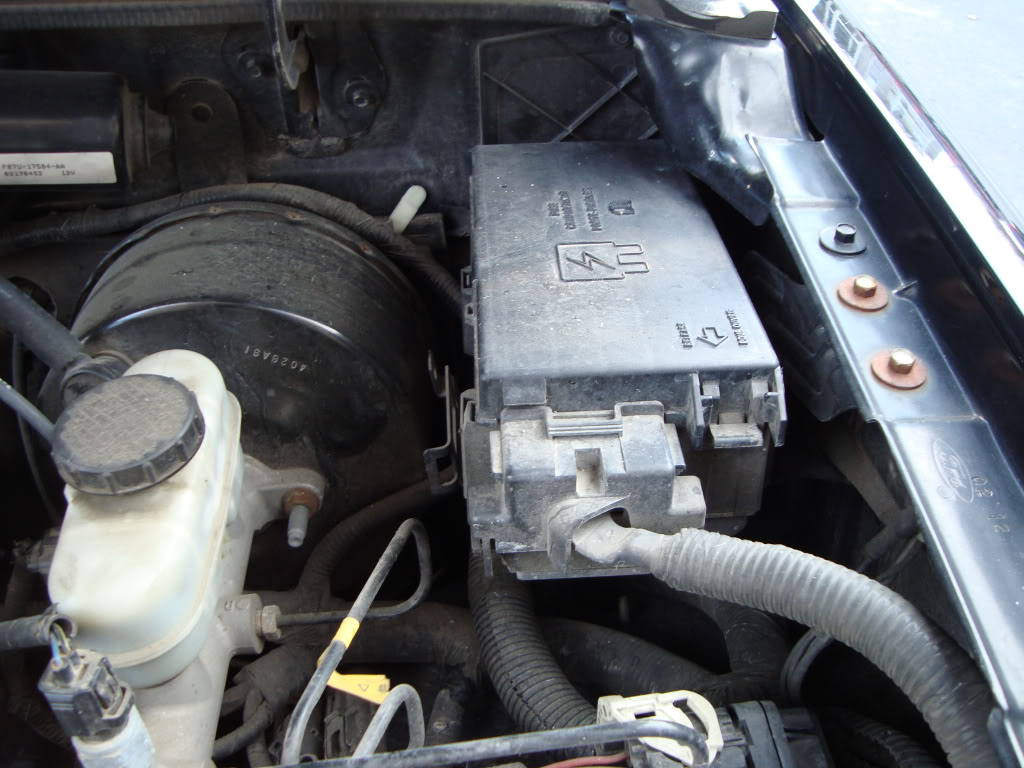

The undamaged 3.0 fuse box
Name:  025-1.jpg
Views: 2
Size:  111.3 KB

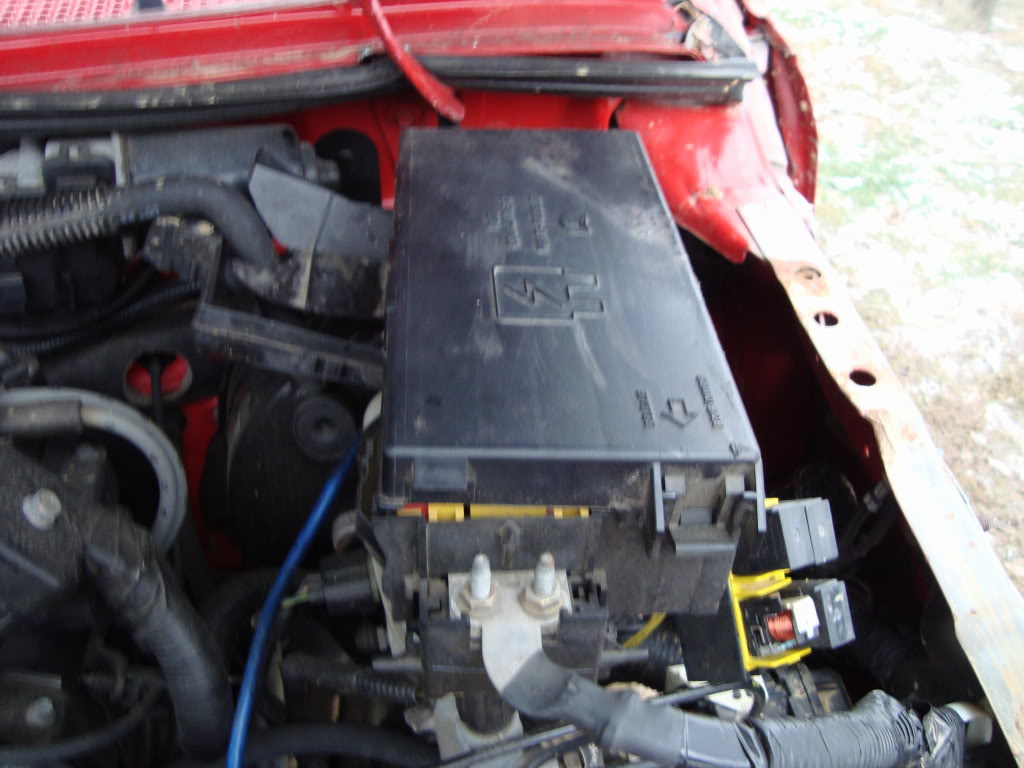

The damaged 4.0 SOHC fuse box
Name:  007-5.jpg
Views: 3
Size:  90.7 KB

Last edited by BlackRanger04; 12-06-2010 at 08:57 PM.
Reply With Quote
  #2
Old 12-07-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Bump
Reply With Quote
  #3
Old 12-07-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
The 2004 Wiring Manual shows the underhood Distribution Box in the 3.0 and 4.0 to be the same. The 2.3 box is the one that's different.
Reply With Quote
  #4
Old 12-07-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by rwenzing View Post
The 2004 Wiring Manual shows the underhood Distribution Box in the 3.0 and 4.0 to be the same. The 2.3 box is the one that's different.
Thanks for clearing that up for me Bob ... I feel a lot better about this now.
