Electrical Problem

Hi everyone...was hoping somebody could help me out. Last night was driving and i lost the sound from my radio, was still gettin power just no sound. If i put the truck in neutral, radio would work, in drive it wont. Then 2 minutes later my horn went off continously until i pulled the fuse. But when i turned my headlights out, my horn would stop, turned lights on and horn would sound. Then got home and my lights wouldn't turn off at all. My cruise control isn't working either. The today was driving and my window washer pump started squirting fluid for no reason, until i turned my headlights off then the pump would stop... Has anybody had this problem or can somebody shed some light on this??? I dont want my truck to go up in flames !! It's a 2004 Ford Ranger XLT 4.0L

Last edited by inmate32; 04-05-2008 at 12:11 PM. Reason: truck model
Reply With Quote
  #2
Old 04-05-2008
67cobain94's Avatar
Member

Join Date: Jul 2005
Location: Vero Beach, Florida
Posts: 708
This sounds like a weird short to me. Possibly a clockspring or something is going bad but I've never heard anything like that so I make no promises.
Reply With Quote
  #3
Old 04-05-2008
Silver GT's Avatar
Member

Join Date: Jan 2005
Location: Lorain,Ohio
Posts: 17
Same problem with the Lights and the Horn

I turned on the Lights and the F***** Horn is blasting 5:30 a.m.
in the morning. Try disconnect the pos. battery cable for about 1 hour.
Hope this helps.....
Reply With Quote
  #4
Old 04-05-2008
Member
Thread Starter

Join Date: Apr 2008
Location: Moncton, NB
Posts: 2
electrical

I have disconnected my neg, i will disconnect my pos.....Now could this be a problem caused by change in weather? Could this be a relay? Multi-function switch? How did you correct your problem with the horn?
Reply With Quote
  #5
Old 04-05-2008
Silver GT's Avatar
Member

Join Date: Jan 2005
Location: Lorain,Ohio
Posts: 17
Stephen King's

THE MIST or The Snow....LOL
All I did to the Truck is disconnect the Positive Battery Cable and let it sit
for about 1 hour and reconnect it. No problems after that.....
Reply With Quote
  #6
Old 04-06-2008
tpowel2's Avatar
Member

Join Date: Apr 2008
Location: Winter Haven, Florida
Posts: 19
How weird I have the same problem today. Went to get into the truck, turned on my lights and the horn starts blasting and the washer squirter starts going. Turned off the lights and everything stopped, but the parking lights stay on and don't turn off. My cruise control hasn't worked for awhile, and my truck is a 2004 was well! Did you find out the problem yet!!! Funny thing is I pulled a couple of fuses this morning to see if that was my problem on my non op. cruise control ( I replaced them), and now I have this trouble tonight. I'll try taking off the pos. battery cable to see if that works... fingers crossed.
Reply With Quote
  #7
Old 04-07-2008
tpowel2's Avatar
Member

Join Date: Apr 2008
Location: Winter Haven, Florida
Posts: 19
Well it didn't work for me, after a couple hours with the pos. battery cable off. I even removed both cables and left them off overnight... still no luck. I guess I'll make an appointment with the dealership.
Reply With Quote
  #8
Old 04-07-2008
04 EDGE
Unregistered User

Posts: n/a
sounds like the body control module took a crap.
Reply With Quote
  #9
Old 04-10-2008
tpowel2's Avatar
Member

Join Date: Apr 2008
Location: Winter Haven, Florida
Posts: 19
Just a follow up... My problem was solved, the dealer had to replace the fuse box in the passenger side kick panel. Water had leaked in and shorted somethings out!!!
Reply With Quote
  #10
Old 05-15-2008
tsterr1's Avatar
Member

Join Date: Jul 2007
Location: Baton Rouge, la
Posts: 29
Happened to me this morning, the horn and the lights anyway. Of course it was 5:30 in the am and I was in a neighborhood. Its been raining hard for two days, I probably got water somewhere it shouldn't be. How much did it cost you at the dealership?
Reply With Quote
  #11
Old 06-08-2008
Member

Join Date: Sep 2005
Location: Roscoe, IL
Posts: 30
Anyone figure out the problem? Today I was 5 hours into a 6 hour drive and the sound to the radio cut out. When I put the truck in park, or neutral, the sound comes back on. I was driving through some extreme storms, and I am pretty sure something got wet. I checked all the fuses inside the truck and everything seems ok. Guess I'll see if I have the same problem in the morning. If so, I'll pull the battery cable.
Reply With Quote
  #12
Old 06-09-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by SonicBlueFIB View Post
Anyone figure out the problem?
Reading the posts above, it seems that at least one person had water in the Smart Junction Box under the passenger side kick panel. Others seemed to be wet weather related as well.

I would pull the cover and try drying it out. Be careful poking around in there since the SJB is powered from some high current fuses under the hood (disconnect battery). Then you need to find the source of the water leak. Could be a windshield seal or cowl leak or maybe a door seal leak.
Reply With Quote
  #13
Old 06-09-2008
Member

Join Date: Sep 2005
Location: Roscoe, IL
Posts: 30
just a follow up. I did nothing to the truck, just let it sit over night, and the problem was gone in the morning.
Reply With Quote
  #14
Old 09-15-2008
Member

Join Date: Dec 2007
Location: Aurora, il
Posts: 12
Did anyone ever find the cause for the leak?
Reply With Quote
  #15
Old 09-15-2008
Member

Join Date: Dec 2007
Location: Aurora, il
Posts: 12

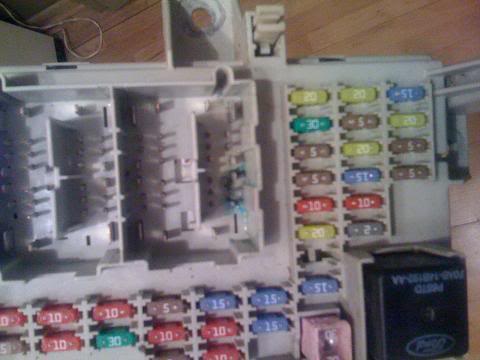

Found the problem, water somehow got into the fuse box, used the leaf blower to dry out the connection and wire brushed out corrosion on the connections, all good now!

Name:  fusebox.jpg
Views: 8
Size:  25.0 KB
Reply With Quote
  #16
Old 02-16-2009
SparkYZ's Avatar
Member

Join Date: Nov 2007
Location: Granada Hills, CA
Posts: 679
I have this problem today.
Did anyone ever figure out where the leak was coming from?
Reply With Quote
  #17
Old 02-16-2009
SparkYZ's Avatar
Member

Join Date: Nov 2007
Location: Granada Hills, CA
Posts: 679
Anyone figure out what leaked for this problem?
Reply With Quote
