Explorer Dimmer Control

Anyone familiar with this PWM dimmer in the explorers? I have one with wiring pigtail. I was wondering if I install it will it dim my LED dash lights?

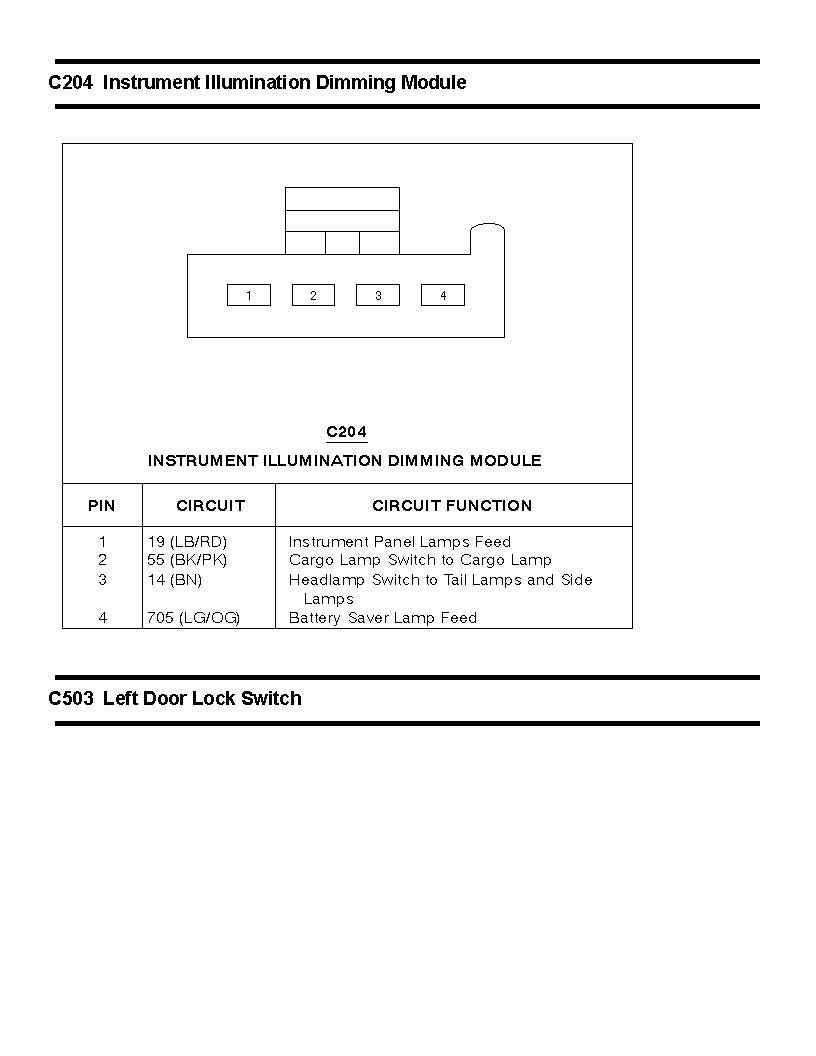

Ranger on top

Explorer on bottom

Name:  dimrang_Page_1.jpg
Views: 3
Size:  55.1 KB

Name:  dimex.jpg
Views: 3
Size:  58.5 KB
Reply With Quote
  #2
Old 10-05-2009
ccernst's Avatar
Member

Join Date: May 2009
Location: Kansas City, MO
Posts: 380
LEDs don't dim, you get either on or off.
Reply With Quote
  #3
Old 10-05-2009
DrMacZed's Avatar
Member

Join Date: Sep 2007
Location: Corvallis, Oregon
Posts: 92
Quote:
Originally Posted by ccernst View Post
LEDs don't dim, you get either on or off.
That's not entirely true, you can dim an led; but you need to use a pulse width modulator.
Reply With Quote
  #4
Old 10-05-2009
Blhde's Avatar
Member
Thread Starter

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by ccernst View Post
LEDs don't dim, you get either on or off.
They get brighter with voltage. Up to their rated working voltage.





The ranger dimmer is capable but its tuned for a much heavier load than what the leds draw. If a load resistor was on the circuit im sure it would work just fine.
Reply With Quote
  #5
Old 10-05-2009
ccernst's Avatar
Member

Join Date: May 2009
Location: Kansas City, MO
Posts: 380
Quote:
Originally Posted by Blhde View Post
They get brighter with voltage. Up to their rated working voltage.





The ranger dimmer is capable but its tuned for a much heavier load than what the leds draw. If a load resistor was on the circuit im sure it would work just fine.
I agree there, there is some variance in light output depending on voltage given. But if you start out with X voltage from the trucks power system...you can't add voltage, only reduce it. Sure you can use a variable resistor and reduce the voltage a bit, but it won't dim a whole lot. If you use a pulse width modulator, you are still only pulsing the LED to make it look dimmer, it is still turning on/off really fast. Go too slow and you'll get a strobing effect.
Reply With Quote
  #6
Old 10-05-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
The Explorer dimmer has two separate outputs. One is variable DC voltage (like a Ranger), the other is PWM.
Reply With Quote
  #7
Old 10-05-2009
ccernst's Avatar
Member

Join Date: May 2009
Location: Kansas City, MO
Posts: 380
sounds like ford already did the hard part! worth a shot to try it.
Reply With Quote
  #8
Old 10-05-2009
Blhde's Avatar
Member
Thread Starter

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by rwenzing View Post
The Explorer dimmer has two separate outputs. One is variable DC voltage (like a Ranger), the other is PWM.
Im guessing here Bob, but the red/black is the PWM output?

Do you know what the click in the full down position is?
Reply With Quote
  #9
Old 10-05-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by Blhde View Post
Im guessing here Bob, but the red/black is the PWM output?
On Gen2 Explorers, red/black goes mostly to the incandescent bulbs, so I'd say that is the variable voltage leg. The light blue/red goes only to modules with displays which should make it the PWM output. Notice that this does not match the Ranger convention of light blue/red to the incandescents.

Quote:
Originally Posted by Blhde View Post
Do you know what the click in the full down position is?
IIRC, the wheel has a click for "dome always on" in one direction and one for "dome always off" in the other.
Reply With Quote
  #10
Old 10-06-2009
Blhde's Avatar
Member
Thread Starter

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
This seems like a simple mod. I think i will go ahead and make the swap. Followed by a how to.
Reply With Quote
  #11
Old 10-06-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by Blhde View Post
This seems like a simple mod. I think i will go ahead and make the swap. Followed by a how to.
It is. The dimmer is a direct bolt in and the color codes are straightforward except for the light blue/red mentioned before.

Since you have the EATC, now could also be a good opportunity to split the LB/RD and the RD/BK that were tied together in John's how-to. I don't know that there is any difference in dimming performance but the EATC button bulbs "should" be on variable voltage and the display on the PWM output per Ford's original design.
Reply With Quote
  #12
Old 10-06-2009
Blhde's Avatar
Member
Thread Starter

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Interesting.

I was going to make another attempt at modding the EATC with leds. I just cant seem to figure out how to get the buttons apart to change their color.
Reply With Quote
  #13
Old 10-07-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
We will all be running to the JY for Explorer dimmer controls for the LEDs that we have installed.

Please be sure to post a how to when you have completed the process.
Reply With Quote
  #14
Old 10-07-2009
Blhde's Avatar
Member
Thread Starter

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Im going to attempt this Sunday. How to should be done mid week if all goes well and I can get good pics.

I will be hooking up my EATC to the voltage regulator per Bob's suggestion. Other than that its a simple connector swap. You just don't use 4 of the new wires. I have a feeling though ground will need to be connected.
Reply With Quote
  #15
Old 10-07-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by Blhde View Post
I have a feeling though ground will need to be connected.
I have the dimming module ground connected on mine. I'm sure that it wouldn't work without it.
Reply With Quote
