  #26
Old 01-30-2008
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
^HaHa!!
Reply With Quote
  #27
Old 02-01-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I just posted a modified schematic on page 1.

Also, if you're doing a modification to an electric t-case to make a "crawl box", this mod can be done in a very simplified way. I'll post on that later. It only requires 3 relays and very simple logic to make it work. You'll see when I get it drawn.

That's probably the main reason not to use an electric 1354 ro make a crawl box: the controls. It's simple enough to just move between the two end positions instead of having to worry about 4 high that you might want to consider it now.
Reply With Quote
  #28
Old 04-20-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620

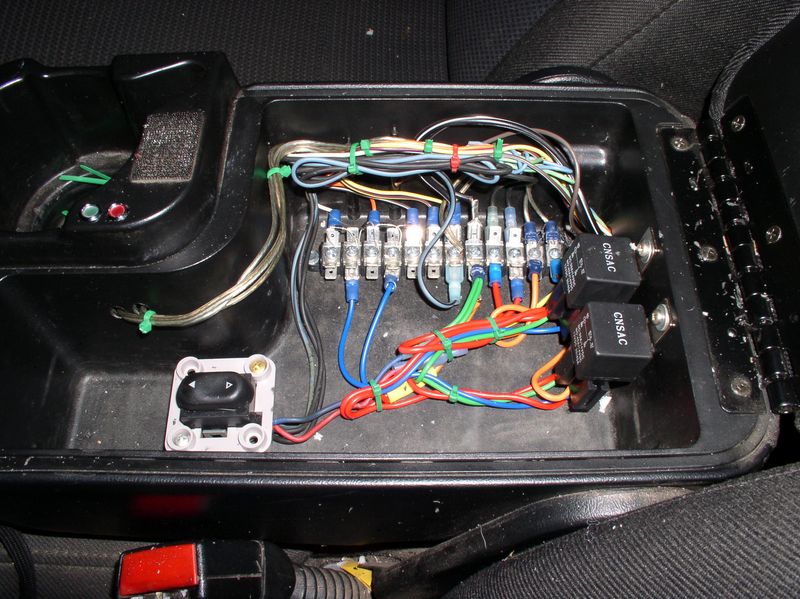

Well, I made a decision with regard to adding additional controls to my truck. Dash space is at a premium, so I'm going to use the center console.

For now, I have the simplifed temporary version of my t-case controller residing there. It only allows 2HI and 4LO, but it's dead simple. Relays interrupt the operation when it gets to the end where it needs to be. It uses some diodes to decode the gray code output to control the relays. An explorer power sunroof switch controls it.

Later I'll make a sub-panel that mounts slightly recessed in there where I can mount some additional switches. I put the indicator lights in the frame of the cupholder as you can see on the left.

Crude but it works. I'll use this for the run Saturday and until I get around to making my final controller. I left all the wires on things long until I make a final version hence the wires all doubled up in the harnesses.
Attached Thumbnails
Exploring the mysteries of the Ranger/Explorer electric t-case-p1010132-%5B800x600%5D.jpg
Reply With Quote
  #29
Old 04-20-2008
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
100 bucks to make me one?
Reply With Quote
  #30
Old 04-20-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
What, that jumble? lol. Besides: I'm not getting into making stuff. It consumes my time too much. I make more money working my job, lol -- and I want the time I do have available for my projects.

Sorry.
Reply With Quote
  #31
Old 04-20-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Dang that wiring is pretty is sweet John, I wish I had the patience to make mine look that good.
Reply With Quote
  #32
Old 04-20-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Thanks, Trent but I don't consider that good. Listen, to get it that way all you need is a handful of tyraps and a handful of wires, lol. Bundle wires in hand, apply tyraps!

That little terminal strip was part of a bunch of stuff my brother gave me from a place he worked that made mobile systems of various sorts. They quit using those strips and were throwing them out and he grabbed a bunch of them. I hadn't used any so far but it made a dandy place to terminate wiring easily for experimenting with this. This is basically the same thing I had in my basement to test the t-case to begin with.
Reply With Quote
  #33
Old 04-22-2008
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by n3elz View Post
What, that jumble? lol. Besides: I'm not getting into making stuff. It consumes my time too much. I make more money working my job, lol -- and I want the time I do have available for my projects.

Sorry.
damn dude lol o well i tired right now i have my tcase motor off because i cant get into 4l with the electric so i took it off and use pliers
Reply With Quote
  #34
Old 04-22-2008
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by n3elz View Post
What, that jumble? lol. Besides: I'm not getting into making stuff. It consumes my time too much. I make more money working my job, lol -- and I want the time I do have available for my projects.

Sorry.
damn dude lol o well i tired right now i have my tcase motor off because i cant get into 4l with the electric so i took it off and use pliers
Reply With Quote
  #35
Old 04-22-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
You must be tired, Cameron -- you're repeating yourself, lol. (I've done that too when the board response is slow)
Reply With Quote
  #36
Old 04-22-2008
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Wow, is that a doomsday box or what?
Reply With Quote
  #37
Old 04-22-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I'm afraid so. If I arm it, and press the button, it will destroy all Jeeps in America...
Reply With Quote
  #38
Old 04-22-2008
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Quote:
Originally Posted by n3elz View Post
I'm afraid so. If I arm it, and press the button, it will destroy all Jeeps in America...


I don't think so......I'm well outside the blast radius, didn't you see the ending of "I am Legend"?....look where everyone flocked to!

I gotta admit John, you make the rethink the possibility of "The Matrix" becoming a reality! Soon you'll have a "Griggs to Truck" interface plug!
Reply With Quote
  #39
Old 04-22-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Ha ha! No, I'm just a stubborn "analyst type" who sometimes runs into things he can't stand to not understand, lol.

Hey, I'll rig it so your Jeep is safe anyway...
Reply With Quote
  #40
Old 04-22-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
lol what a mess.

how much would you want for one of these once its a "finished product"?
Reply With Quote
  #41
Old 04-22-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
As Richard Nixon is often quoted as saying: "Let me make this perfectly clear"...

I am not now, and probably won't be, interested in building this stuff for folks. I give you schematics, I do the research, but I do not like building a bunch of stuff and I end up neglecting my customers like I did on the fan controllers. I'm not tempermentally suited to mass production and if I do it for one of you, others will want it too.

Now, if you want me to post the simplified version I'm using now which is super easy to build, I'll do that too. No problem.

But I'm not making anything for anyone. I don't charge enough, I'm not motivated enough, and I will get tired of it quick. No way. No how. No mas.

Hope that answers your question, Daniel (and the ones I've been getting by PM and email also, lol...)
Reply With Quote
  #42
Old 04-22-2008
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by n3elz View Post
As Richard Nixon is often quoted as saying: "Let me make this perfectly clear"...

I am not now, and probably won't be, interested in building this stuff for folks. I give you schematics, I do the research, but I do not like building a bunch of stuff and I end up neglecting my customers like I did on the fan controllers. I'm not tempermentally suited to mass production and if I do it for one of you, others will want it too.

Now, if you want me to post the simplified version I'm using now which is super easy to build, I'll do that too. No problem.

But I'm not making anything for anyone. I don't charge enough, I'm not motivated enough, and I will get tired of it quick. No way. No how. No mas.

Hope that answers your question, Daniel (and the ones I've been getting by PM and email also, lol...)
So can you make me one?



You still need a gas tank skid? I plan on getting down to wharton by the end of the summer and still have it if you want it. I at least owe you that.
Reply With Quote
  #43
Old 04-22-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by l2en View Post
So can you make me one?



You still need a gas tank skid? I plan on getting down to wharton by the end of the summer and still have it if you want it. I at least owe you that.
NOOOOOOO!!!!!!!

As a matter of fact, someone else gave me one. I just haven't put it on yet. If I can I'm going to get it on (poor choice of words that) before this weekend.

Thanks a lot though. I didn't get up with you either so no worries. If someone else needs it, pass it on please.

If no one else takes it, I'll hold it against future need, or modify it to make a t-case protector. I don't even know what they look like on a Ranger and figure I better get one.
Reply With Quote
  #44
Old 04-22-2008
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Quote:
Originally Posted by n3elz View Post
Ha ha! No, I'm just a stubborn "analyst type" who sometimes runs into things he can't stand to not understand, lol.

Hey, I'll rig it so your Jeep is safe anyway...

So how much for one for me! HA!HA!HA!

Anyway, I understand my tcase controler....all I do is think " hand and arm, pull lever"!...well, sometimes it gets more complicated!

As for the tcase skid, make one. I bashed Ford OEM one pretty good at only one time out, and it looks like it would be real easy to make, especially if you had acces to a heavy duty brake (which I would reckon the steel mill has). A sinlge piece of 1/4" sheet could easily be bent to a STRONG tcase skid. Add some good ribbing (like you don't get enough) as gussets and you're set!
Reply With Quote
  #45
Old 04-22-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Hey Griggs a brand new t-case skid is less than $30 from Ford. Don't know how well it'd do on your rig though since they're pretty thin sheet metal. lol
Reply With Quote
  #46
Old 04-22-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by buckgnarly View Post
all I do is think " hand and arm, pull lever"!...

No...no, I'll let that one go...
Reply With Quote
  #47
Old 04-22-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
i understand.

how hard would it be to hook something like that up to a stock 4x4 bezel?
Reply With Quote
  #48
Old 04-22-2008
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Quote:
Originally Posted by n3elz View Post
No...no, I'll let that one go...
Hence the complication.....
Reply With Quote
  #49
Old 04-22-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by 5speedin2.3 View Post
i understand.

how hard would it be to hook something like that up to a stock 4x4 bezel?
I haven't given that any thought. But the switch on our trucks and others are basically variable resistors with detents. That is, when you switch the switch it makes a different resistance which the PCM sees and uses to tell it what mode you're requesting.

So that would be difficult to do without significantly more sophistication. I'm trying to keep it simple and basic where I'm not dependent on an electronic system -- particularly one like the factory system which is more concerned with not causing problems then allowing you to solve them.
Reply With Quote
  #50
Old 04-22-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Very, very nice John. I've had a few sticky moments with my Electric Tcase ****, I'd really like to get rid of it, exploit or otherwise. Very interesting!

John, you are THE BOMB! Keep up the great work!

Thanks!

Last edited by Rangerguy; 04-22-2008 at 11:09 PM.
Reply With Quote
