  #51
Old 04-25-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Thank you, Mark!

Well, last night I made a version of a decoder to detect the 4 high position and mounted it in the truck. I have a surplus of automotive relays laying around because of stuff I bought to make fan controllers at one point. The decoder requires 2 relays and an LED, no other components are required.

So now I can see when the truck hits 4 high and I can bump it into that too. Before I only had the 2 positions I could use. I added a light for the third position. It's even a bigger mess in my console than it was before, lol.

Why did I use two more relays -- because I had them and it was easy to build in the truck.

I'll post a pic later.
Reply With Quote
  #52
Old 04-25-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620

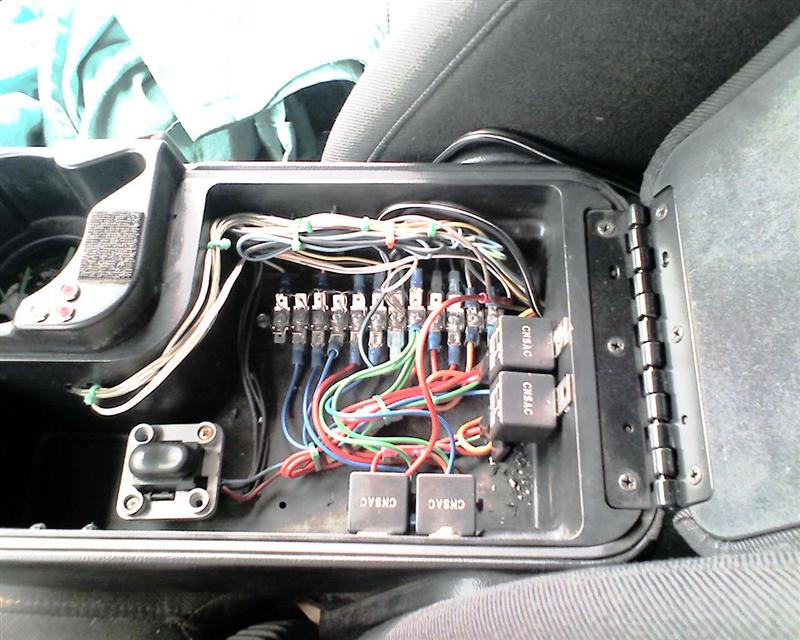

Okay, here's a picture of the new "mess".

There are two more relays to mount: one for the neutral safety switch control of the ability to go in 4 low, and an additional relay to stop the t-case when it gets to 4 high range. That should be about it. I may just use this rather than the more sophisticated circuit I drew up, lol. It's expensive with all these relays but I already had them and it works.
Attached Thumbnails
Exploring the mysteries of the Ranger/Explorer electric t-case-img032-medium-.jpg
Reply With Quote
  #53
Old 04-25-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Kudos again John. Looks great! Man, I really wanna do this someday! I'll add it to my list, lol!

Thanks,
Reply With Quote
  #54
Old 04-25-2008
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
its no mystery just turn the ****
Reply With Quote
  #55
Old 04-25-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by ranger View Post
its no mystery just turn the ****
DOH! Why didn't I think of that... ...of course, the fact that my truck was 2WD and didn't have one of those knobby jobby's could explain why it was a mystery to me at least, lol.

Well, 2 more relays in there. I now have a relay that can stop it at 4HIGH so I can shift while moving, and then an override relay that allows 4LO. Later, the override relay will be driven by the neutral safety switch but for now it's just a manual switch to enable the movement to 4LO.
Reply With Quote
