gauge lights

gonna swap my gauges to blue. their a 194 bulb right? sylvanias website said 161 and 194. if so wat one and how many do i need? thanks
Reply With Quote
  #2
Old 03-30-2011
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Depends on the year of the truck, but in general the cluster lights will be T10 base bulbs.... 194's etc should all be similar in size.

There should be 6 bulbs.

While you have the dash apart, why not go led??

Feel free to check out my post HERE

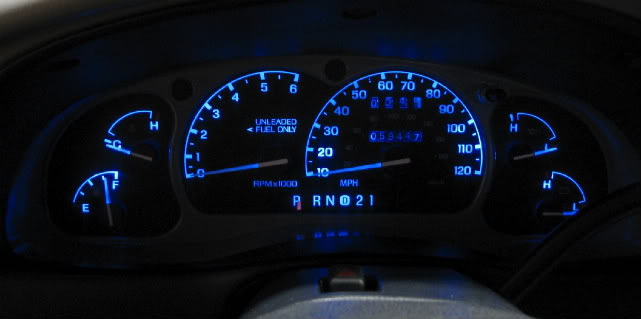

Here's what my current cluster looks like with blue smt leds:
Name:  IMG_1493-1.jpg
Views: 4
Size:  27.1 KB
Reply With Quote
  #3
Old 03-31-2011
FMD's Avatar
FMD FMD is offline
Member
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
someone over on GE is doing custom LED work on clusters... Might wanna chekc that out.
Reply With Quote
  #4
Old 04-04-2011
alittlekuntry98's Avatar
Member
Thread Starter

Join Date: Nov 2010
Location: chittenango, ny
Posts: 17
so why did yers come out so clean i got 4 cluster leds red ones a 32 degree angle and they look like ****. its patchy and i can only see wear the light bulb is and maybe a half an inch around it.
Reply With Quote
  #5
Old 04-04-2011
RLong31's Avatar
The Ban Hammer
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
If you replace only the bulbs, you will get hot spots. That is what your problem is. You need to solder in some more led's to fill in the spots with less light hitting them. Get some flexible led strips from superbrightleds.com and put those in, I just did mine.
Reply With Quote
  #6
Old 04-04-2011
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
If you didn't remove the cluster overlays & sand off the oem color filters, they will look like poo. OR if you're not using led's the same color as your overlays, ie blue led's with blue color filtering or green led's with green color filtering.

The red light from the led's has to go through the green or blue oem filtering which will greatly lessen the actual light that makes it through.

The 360* led's I'm using (see pic I posted before for results) are all the led's I have in my cluster, no extra led strips, no extra led's hidden.
I went through a lot of different types of led's before I found the ones I have now. I had planned on making a full circuit board with led's, but after I found these, I quickly dropped that idea.
Reply With Quote
  #7
Old 04-05-2011
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by buggman View Post
If you didn't remove the cluster overlays & sand off the oem color filters, they will look like poo. OR if you're not using led's the same color as your overlays, ie blue led's with blue color filtering or green led's with green color filtering.

The red light from the led's has to go through the green or blue oem filtering which will greatly lessen the actual light that makes it through.

The 360* led's I'm using (see pic I posted before for results) are all the led's I have in my cluster, no extra led strips, no extra led's hidden.
I went through a lot of different types of led's before I found the ones I have now. I had planned on making a full circuit board with led's, but after I found these, I quickly dropped that idea.
Even with the 360 LEDs you have some bad bright spots, where the LEDs are, and dim spots (like where the odometer is) in your picture. This is a picture of the OEM cluster, with bulbs, and you can see how much more even the lighting is:



Last edited by Takeda; 04-05-2011 at 07:57 AM.
Reply With Quote
  #8
Old 04-05-2011
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
IIRC , taking some fine sandpaper and scuffing the smooth glaze off the LEDs will diffuse the light better to eliminate bright spots.
Reply With Quote
  #9
Old 04-05-2011
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by OTRtech View Post
IIRC , taking some fine sandpaper and scuffing the smooth glaze off the LEDs will diffuse the light better to eliminate bright spots.
LEDs can't take much mechanical or thermal stress. The wirebonds will fracture easily.

I think Ford did a good job with the cluster lighting, nice and even, and you can see everything well. Why screw it up?

Last edited by Takeda; 04-05-2011 at 08:38 AM.
Reply With Quote
  #10
Old 04-05-2011
RLong31's Avatar
The Ban Hammer
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Quote:
Originally Posted by Takeda View Post
LEDs can't take much mechanical or temperature stress. The wirebonds will fracture easily.

I think Ford did a good job with the cluster lighting, nice and even, and you can see everything well. Why screw it up?
To change the color.
Reply With Quote
  #11
Old 04-05-2011
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by RLong31 View Post
To change the color.

Nice!!
Reply With Quote
  #12
Old 10-18-2011
NewShockerGuy's Avatar
Member

Join Date: Sep 2011
Location: NOVA
Posts: 599
Icon2

Quote:
Originally Posted by Takeda View Post
Even with the 360 LEDs you have some bad bright spots, where the LEDs are, and dim spots (like where the odometer is) in your picture. This is a picture of the OEM cluster, with bulbs, and you can see how much more even the lighting is:




These are the stock bulbs? I wish my current dash would look like that.. half of them are burned out :-( I am going to do white leds since I like the contrast of different colors in your above... but if I am going to get hot spots I'm wondering if I should just get normal bulbs and call it a day since that would still be better than my half burned out dash now..

-Nigel
Attached Thumbnails
gauge lights-486333845_gujbk-x3.jpg
Reply With Quote
  #13
Old 10-18-2011
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by Takeda View Post
LEDs can't take much mechanical or thermal stress. The wirebonds will fracture easily.

I think Ford did a good job with the cluster lighting, nice and even, and you can see everything well. Why screw it up?
To do something awesome, like this?

Attached Thumbnails
gauge lights-dscf1949.jpg
Reply With Quote
