help 2005 t- connecter?

just got a under tailgate light that plugs into a flat four pin connecter for a trailer but i can't find a t- connecter for the tail lights i have a 2005 fx4 any ideas anyone i hate to splice if i don't have to
Reply With Quote
  #2
Old 01-26-2010
Member

Join Date: Jun 2005
Location: Havertown,PA
Posts: 467
It should be hanging right under your bumperaround license plate area.
Reply With Quote
  #3
Old 01-26-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
As far as I know, ALL 01+ have a flat 4 trailer harness connector. Just gotta get up under there and find it. It should be connected on the underside of the bumper, just about right behind the driver's frame rail using a "Christmas Tree" fastener.
Reply With Quote
  #4
Old 01-26-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
i know mines not that year but mines on the spare carrier with the xmas tree fastener
Reply With Quote
  #5
Old 01-26-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by g-unit15 View Post
just got a under tailgate light that plugs into a flat four pin connecter for a trailer but i can't find a t- connecter for the tail lights i have a 2005 fx4 any ideas anyone i hate to splice if i don't have to

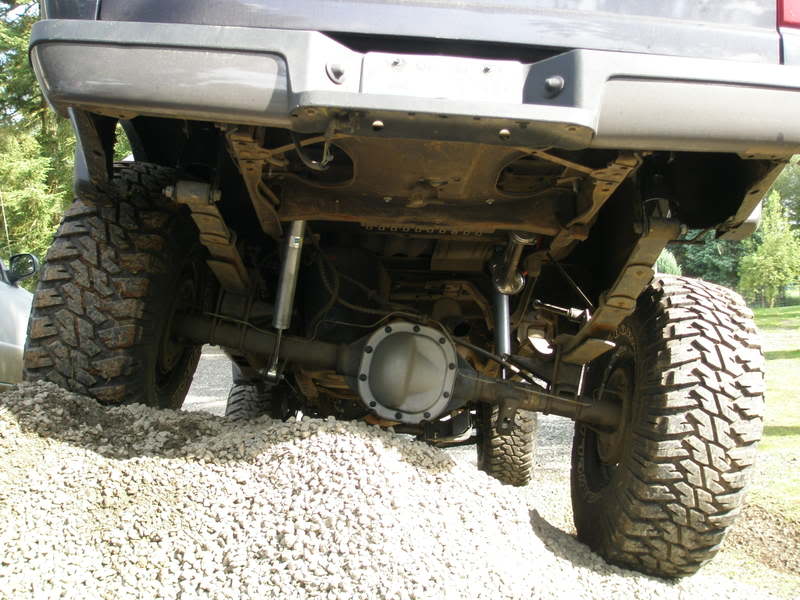

Yours should be in the exact spot as mine...
Name:  P5310203.jpg
Views: 4
Size:  86.4 KB


Those that do the line of fire usually pull the flat-4 off the bumper, connect it to the light's pigtail, then fish it up and hide it behind the bumper using zipties. Gives a clean finished look.
Reply With Quote
  #6
Old 01-27-2010
Member
Thread Starter

Join Date: Jan 2010
Location: IL
Posts: 4
thanks everyone found it
