How do you read Axle tag
#1
How do you read Axle tag
I hear live a vibrating noise on drivers side rear. The sound vowed away when you break or accelerate. Please help. Any ideas. I was thinking the axle but can’t figure out how to read axle tag. I was also thinking it could be the rear drum breaks as well. Not sure. The noise can be best saying it sounds like a cable hitting against some thing.
Last edited by Crazy155mph; 12-31-2021 at 09:16 PM. Reason: As more info
#2
Tells you how to read the tag
https://www.therangerstation.com/tec...le_codes.shtml

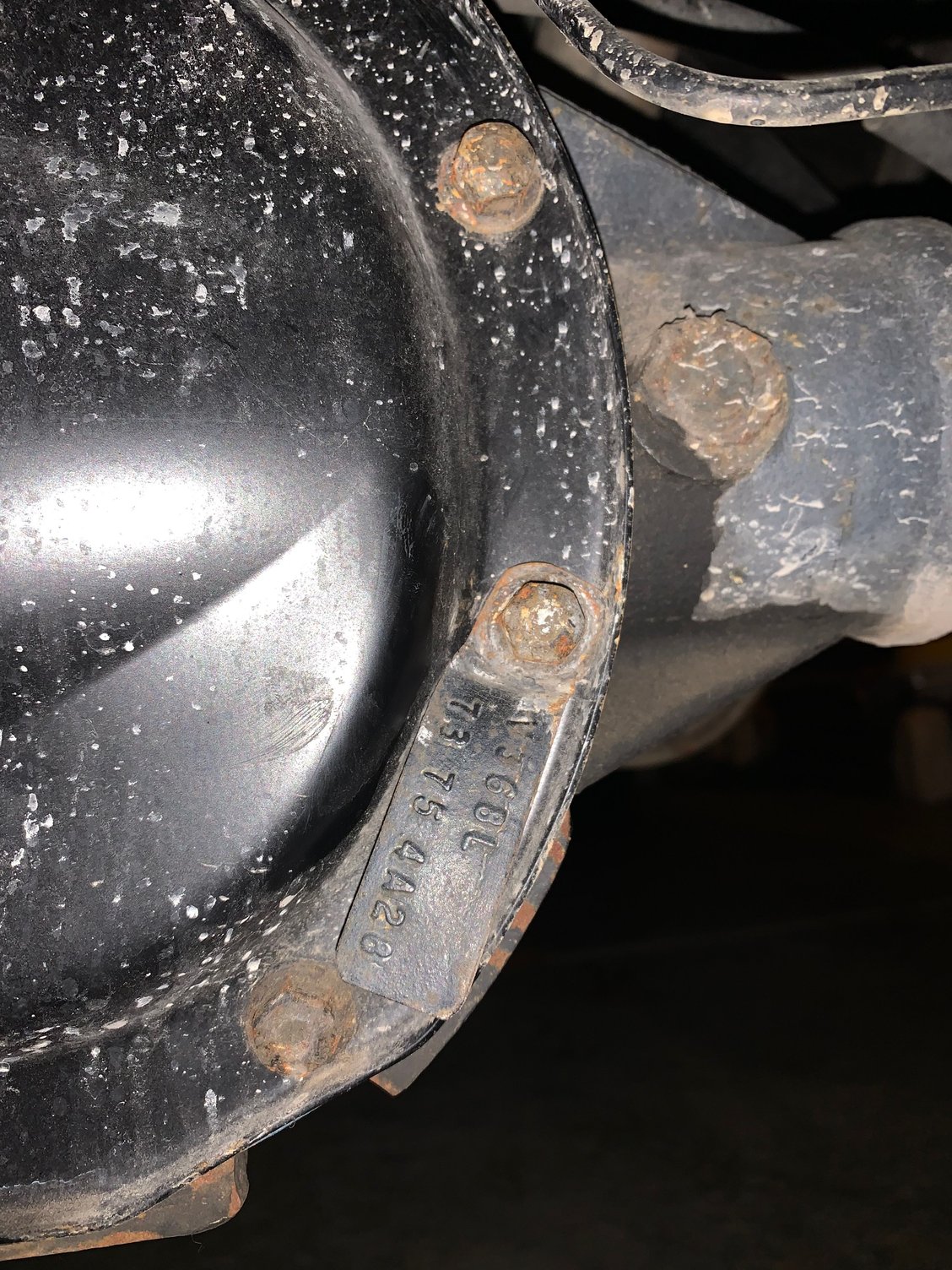

That tag has been broke and welded back together, it's missing the first number and possibly the letter L in the red circle.
My guess is it's a 3, 3.73 is a common gear ratio in a ranger. But I can't tell from your tag if it's a 3 L 73 or a 3 73, the L would mean it's a limited slip.
The yellow circle tells us it's a 7.5 inch ring gear
If your truck still has the door tag, you can get the axle code from it.
https://www.therangerstation.com/tec...le_codes.shtml
That tag has been broke and welded back together, it's missing the first number and possibly the letter L in the red circle.
My guess is it's a 3, 3.73 is a common gear ratio in a ranger. But I can't tell from your tag if it's a 3 L 73 or a 3 73, the L would mean it's a limited slip.
The yellow circle tells us it's a 7.5 inch ring gear
If your truck still has the door tag, you can get the axle code from it.
The following 2 users liked this post by 2011Supercab:
Crazy155mph (01-01-2022),
RonD (01-01-2022)
