Just Bought SD third brake light. ??s about install

Just bought a super duty tbl off ebay.

I made sure it was the sweeter one off the 08 fx4

99-08 FORD SUPER DUTY HIGH MOUNTED BRAKE CARGO LIGHT:eBay Motors (item 320410832045 end time Aug-15-09 14:21:56 PDT)

Is there anything special i need to to to install it? I know ill have to wire up the cargo light but will the brake light just plug in or do i have to mod the harness?
Reply With Quote
  #2
Old 08-15-2009
edgerider2002's Avatar
Member
iTrader: (9)

Join Date: Aug 2008
Location: Fresno, CA
Posts: 1,584
ah your link didnt work. how much did you pay because i would like to find one of them.
Reply With Quote
  #3
Old 08-15-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
jeremy you weiner i told you how to get one
Reply With Quote
  #4
Old 08-15-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
26$ total
Attached Thumbnails

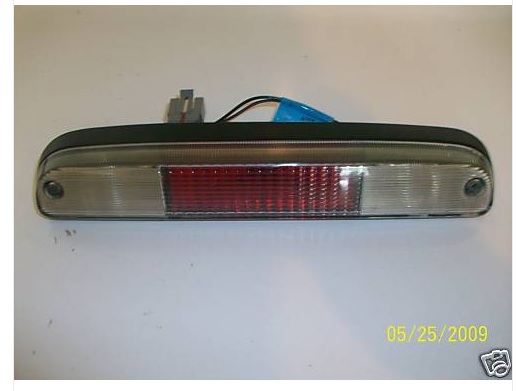

Just Bought SD third brake light. ??s about install-picture-2.jpg
Reply With Quote
  #5
Old 08-21-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Nothing special to install or watch out for.
The three socket harness can only be purchased through Ford when you buy a new 3rd Brake light.
Most of the junk yard harnesses will be in good shape because of the harness location and most people do nothing to them so usualy they are in good shape.

I just installed an LED 3rd brake unit with Cargo lights.
Instead of looking for a harness to hook up the cargos, I converted my cargo lights to directionals; bought new sockets at teh auto parts store and hooked up the wires.
Worked out, looked a little funny at first but the high directionals gets attention.
Reply With Quote
  #6
Old 08-21-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Ben, there's nothing special about installing it. Two screws, unclip the harness, now the old ones off. Clip the new harness on the new third into the truck's harness, put it into position, tighten the screws, done.

Now, I don't know your truck's year, but if you've got a 04+ and want the cargo lights to be functional, you'll have to do a little wiring. Very simple mod. Once you do it, the cargo's will turn on whenever your dome light is on(so it's whenever the door is opened which I think is super neato and I'm gonna do it to my truck).

https://www.ranger-forums.com/forum2...ght-cargo.html
Reply With Quote
  #7
Old 10-02-2009
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
i know this is an old thread but what about on '03s, getting the cargo lights to work when the dome is on? what wires connect to what? and what size wires are those anyways, 22g?
Reply With Quote
  #8
Old 10-02-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Do the 04 how-to mod that I linked above. It can be done to all trucks, just it's the easiest way to make the cargo lights work on 04+ that's missing that one wire.
