Quote:
Originally Posted by Jp7 View Post
You cant use "just the bulbs"

you need the backings of the tail lights, the bulbs, and the harnesses..

See Shane's thread for grueling details on how to install them.

I have a few L1224R setups left, but I may not want to sell them just yet as I may want to keep them for my future vehicles. I do not know yet.
I already know this. Just wondering if you know of anyone besides you who sells these on a regular basis.
Reply With Quote
  #27
Old 03-07-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by Blackonblackfx4 View Post
I think i'll stick with the 3 LED bulbs for the back dome light, but the interior one only has 2 bulbs in it? not 3 ? where'd u get those LED's for it? and how do you open it

My stock domelight had 1 bulb in it. I wired in 2 LED arrays.

I don't know what your talking about a "back" dome light?

I bought the LED's from ebay... I think? SMT arrays are the shnit!
Reply With Quote
  #28
Old 03-07-2009
AEA's Avatar
AEA AEA is offline
Member

Join Date: Feb 2009
Location: North Texas - Lake Texoma
Posts: 99
I would like to get one of those Lexus 3rd brakelight mods (all done). Would you make one for me? I PM'ed you asking for pics before I saw these. JUst let me know the cost and if I can pay by paypal. Thanks JP7.
Reply With Quote
  #29
Old 03-07-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by AEA View Post
I would like to get one of those Lexus 3rd brakelight mods (all done). Would you make one for me? I PM'ed you asking for pics before I saw these. JUst let me know the cost and if I can pay by paypal. Thanks JP7.
I can make one, but it takes a few hours. I will need you to send me your stock light so I can mod it. This means you will have nothing for a few days while I do the mod. Maybe you have another vehicle?

It is NOT a hard mod. All you need is a dremel, some hot glue or epoxy and some patience.
Reply With Quote
  #30
Old 03-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by Jp7 View Post
My stock domelight had 1 bulb in it. I wired in 2 LED arrays.

I don't know what your talking about a "back" dome light?

I bought the LED's from ebay... I think? SMT arrays are the shnit!
back dome light/cargo light/ 3rd brake light


And interior dome. There's only 2 bulbs in there stock?
Reply With Quote
  #31
Old 03-07-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by Blackonblackfx4 View Post
back dome light/cargo light/ 3rd brake light


And interior dome. There's only 2 bulbs in there stock?
Oh - if you have the white/black 3rd brake light, the lexus mod will not work.

You can do it like I did my Evo 3rd brake light, with component LEDs..



If you think that I'm good... watch this.. (my boy Curt)

Last edited by Jp7; 03-07-2009 at 11:29 PM.
Reply With Quote
  #32
Old 03-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Wow, You have a Air horn in your evo?
Reply With Quote
  #33
Old 03-07-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by Blackonblackfx4 View Post
Wow, You have a Air horn in your evo?
Thats not mine. It my boy Curt's Evo 8. I have an Evo 9. He's a much better LED whiz than I am.
Reply With Quote
  #34
Old 03-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
So I just stick a flat screwdriver into the back or my light to get the cover off? or is there any trick to hot to get the cover off
Reply With Quote
  #35
Old 03-08-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Is It ok to buy LEDS from United Kingdom?
Reply With Quote
  #36
Old 03-08-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Is it illigal to have Red tag lights?
Reply With Quote
  #37
Old 03-08-2009
jeffb502's Avatar
Member

Join Date: Jun 2008
Location: Santa Maria CA
Posts: 128
Required to be white in California...
Quote:
Originally Posted by California Vehicle Code
24601. Either the taillamp or a separate lamp shall be so constructed and placed as to illuminate with a white light the rear license plate during darkness and render it clearly legible from a distance of 50 feet to the rear. When the rear license plate is illuminated by a lamp other than a required taillamp, the two lamps shall be turned on or off only by the same control switch at all times.
Reply With Quote
  #38
Old 03-08-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by Jp7 View Post
I can make one, but it takes a few hours. I will need you to send me your stock light so I can mod it. This means you will have nothing for a few days while I do the mod. Maybe you have another vehicle?

It is NOT a hard mod. All you need is a dremel, some hot glue or epoxy and some patience.
Yeah its super easy, I don't see how you would mess it up.
Reply With Quote
  #39
Old 03-08-2009
logan03CO's Avatar
Member

iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by FRXLT View Post
....Just wondering if you know of anyone besides you who sells these on a regular basis.
I hope he gets some more...or wants to part with the ones he still has left over. Sounds like a line is starting to grow for these!!
Reply With Quote
  #40
Old 03-18-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
I pulled my lights behind my tempature controll, I ordered 194's for them. But the lights behind the temp controll look awfully small and skinny. are they indeed 194's???
Reply With Quote
  #41
Old 03-18-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
people!!!
Reply With Quote
  #42
Old 03-19-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
No. They are the little bastards found on 04+ clusters. I've found out that the temp controls can come with 194's or those tiny bastards. IDK the number. BUT...if you've alreayd ordered your LED's for it, you can do what I did...I simply figured out which side was positive, then I soldered the 194 plug-in LED's into the temp control/hvac control panel.

let me do some searching for ya...hang on...
Reply With Quote
  #43
Old 03-19-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Believe the size i'm talking about is #74...

http://autolumination.com/74.htm
Reply With Quote
  #44
Old 03-19-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by Fx4wannabe01 View Post
No. They are the little bastards found on 04+ clusters. I've found out that the temp controls can come with 194's or those tiny bastards. IDK the number. BUT...if you've alreayd ordered your LED's for it, you can do what I did...I simply figured out which side was positive, then I soldered the 194 plug-in LED's into the temp control/hvac control panel.

let me do some searching for ya...hang on...
Mines 2003 not 04+. so i can figgure out wich lead is which and wire it up that way to the old adapter?
Reply With Quote
  #45
Old 03-19-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
You misread what I typed....03 and older gauge clusters use 194s. 04+ use littlebastards that I think are 74's. Your heater/a/c controls use either a 194 or a 74...and if 194 is too big, you must have 74's down there.

If you've got plug in 194's that were meant for down there, you can figure out which little wire wrapped around the base is positive and which is negative. Then figure out which 'pad' is pos and neg on the heater controls using a test light. Solder the matching polaritys together(bulb and the control panel), and it should work perfectly. I ran that set up a long time ago before I put the 9 5mm LED's in those heater controls. I could even aim the 194's to illuminate evenly.
Reply With Quote
  #46
Old 03-19-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Ok so i can either try the 194's if they fit, if not make them ( re wire) or wire up 5mm LED's which are kind of a pain but can be done. I have like 90 LED's LEft. Do you just drill a hole through the back wherever you want to put a LED then just like silicone it in place?
Reply With Quote
  #47
Old 03-19-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I was under the impression that 194 is way to large for your truck in that spot, that's why i'm suggesting soldering the leads the console assuming you've already ordered led 194's.


Have you seen the 'how to LED mod and paint your gauges' thread? It covers my gauges and my hvac controls(current setup)...

https://www.ranger-forums.com/forum2...ad.php?t=62796
Reply With Quote
  #48
Old 03-19-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Yeah the 194's should be here tommorow. exspected them today
Reply With Quote
  #49
Old 03-20-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914

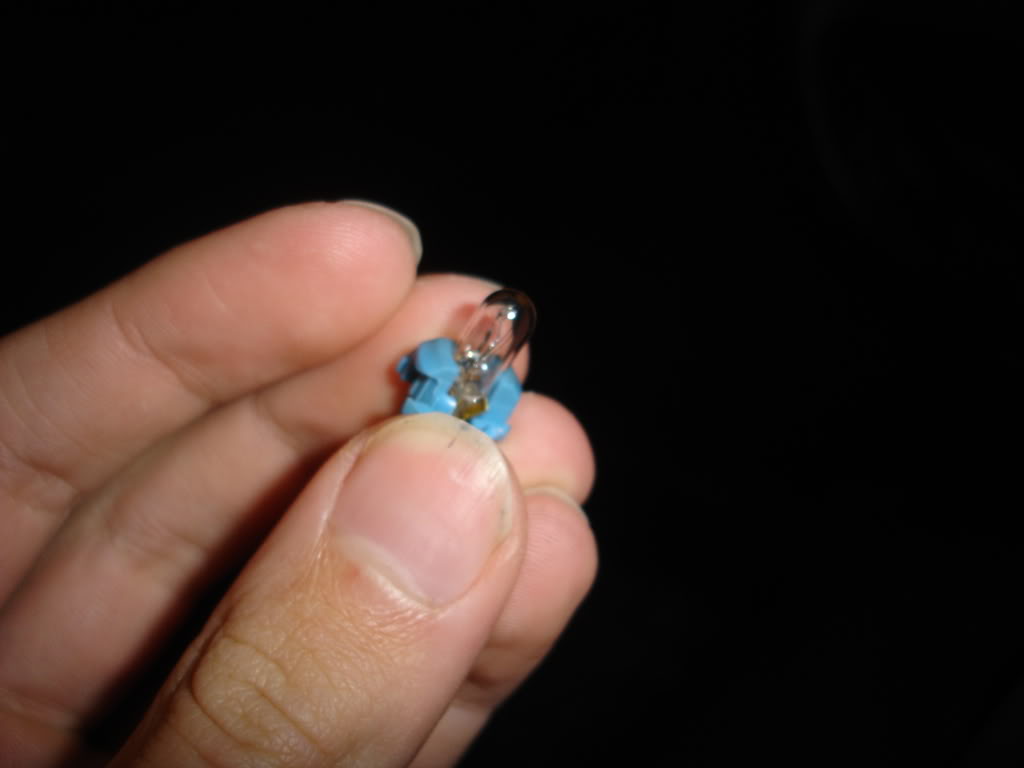

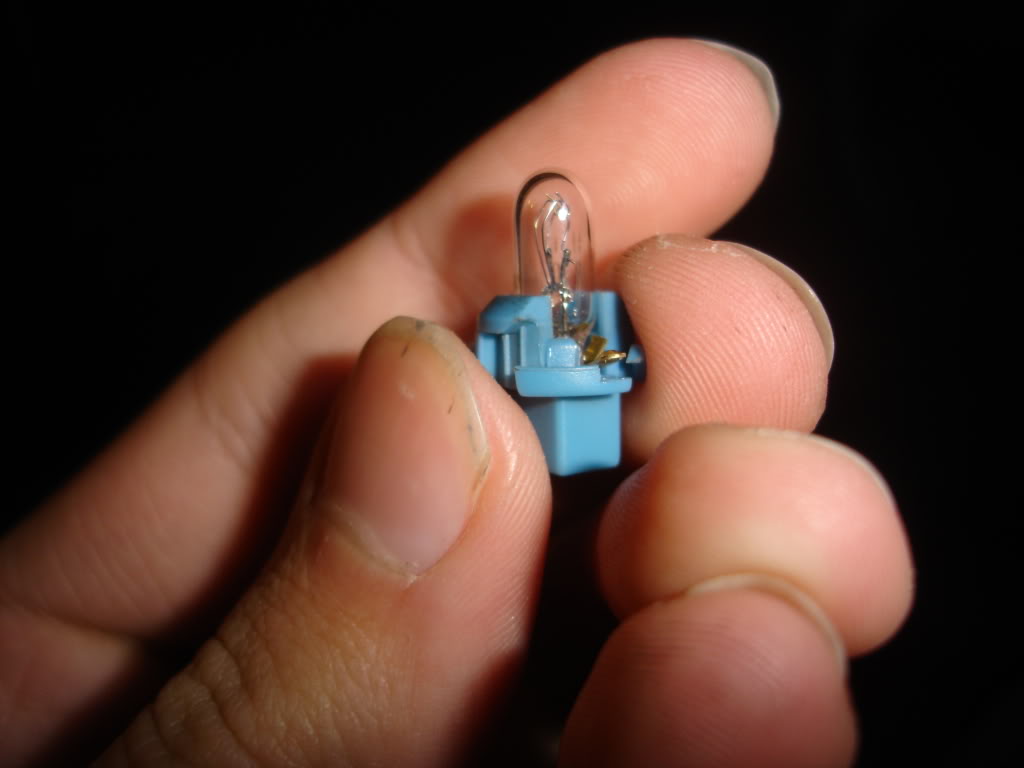

K here's a what those stock bulbs look like.

Name:  DSC04298.jpg
Views: 1
Size:  32.7 KB

Name:  DSC04299.jpg
Views: 2
Size:  47.2 KB

Reply With Quote
