Icon5 Relays

I have my 4 Hellas wired up but not sure how to double relay or even relay them. I feel like such a newbie
Reply With Quote
  #2
Old 06-18-2009
OVERtheEDGE's Avatar
Member

Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
oh all you need is a diagram. someone here has one they will post or get you a link to im sure.
Reply With Quote
  #3
Old 06-18-2009
Ford04Ranger4.0's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
yea... I tried to figure it out on the hella paper but since I have previously wired two of them I'm trying to keep wire cutting to a min.
Reply With Quote
  #4
Old 06-18-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
I'm an eletrical noob too. This is a little different but might help.

https://www.ranger-forums.com/forum2...stock-fog.html
Reply With Quote
  #5
Old 06-18-2009
Ford04Ranger4.0's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
I know people on here have 4 hellas up front, I need one of them to speak on how to double relay lol
Reply With Quote
  #6
Old 06-18-2009
turbo's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: Tallahassee, FL
Posts: 565
Mark --

I have a diagram drawn up on my computer @ home... I can post it here for you when I get back to the house (trapped at work [and obvioiusly, working hard!] until 6:00pm).
Reply With Quote
  #7
Old 06-18-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
(trapped at work [and obvioiusly, working hard!]
Me too LMAO!!
Reply With Quote
  #8
Old 06-18-2009
OVERtheEDGE's Avatar
Member

Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
you guys hold on a min. ill find one
Reply With Quote
  #9
Old 06-18-2009
Ford04Ranger4.0's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
ok thanks so much, i just dont get how to tap the relays in
Reply With Quote
  #10
Old 06-18-2009
OVERtheEDGE's Avatar
Member

Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
Using Relays To Wiring Off Road Lights And Accessories

read and ask any questions you might have.
Reply With Quote
  #11
Old 06-18-2009
OVERtheEDGE's Avatar
Member

Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
the diagram off this page is what i used to do mine. you will match the numbers on the relay to know what wires your using and where they go
Reply With Quote
  #12
Old 06-18-2009
turbo's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: Tallahassee, FL
Posts: 565

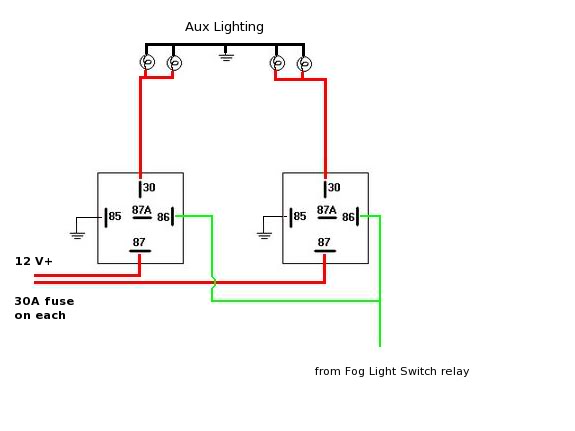

Here's the diagram I created for another user:

Name:  AuxLightingRelays.jpg
Views: 3
Size:  16.2 KB


In this diagram, I'd use 10 ga. wiring for the red wires, and 16 ga. wires for the green. Put a 30A fuse on each of the red supply wires from the battery, and a 2A fuse on the green wire from the switch.
Reply With Quote
  #13
Old 06-18-2009
Ford04Ranger4.0's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Wow Brian thanks so fricken much need that
Reply With Quote
  #14
Old 06-18-2009
Ford04Ranger4.0's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
I dont need a postive to the switch?
Reply With Quote
  #15
Old 06-19-2009
turbo's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: Tallahassee, FL
Posts: 565
Yes. the switch isn't shown in that diagram, because the guy I drew it up for was going to be using his stock foglight switch to control them, and he already had a diagram that detailed how to wire a relay to the (negative trigger) factory switch to create a positive trigger.

You could also, just as easily (and more safely, running only a ground wire through the firewall!) hook pin 85 of each relay to a 2A fused power connection, then run the green wire back to your switch, and the other side of the switch to ground.
Reply With Quote
  #16
Old 06-19-2009
ccernst's Avatar
Member

Join Date: May 2009
Location: Kansas City, MO
Posts: 380
The relays shown in the diagram are SPDT relays...meaning they pull one set of contacts to two positions. There are relays out there called DPDT that pulls a set of contacts with one coil in the relay. I did a quick and dirty diagram of what it would generically look like...basically same thing as what turbo had, but with one relay instead of two.


Reply With Quote
  #17
Old 06-19-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by turbo View Post
Yes. the switch isn't shown in that diagram, because the guy I drew it up for was going to be using his stock foglight switch to control them, and he already had a diagram that detailed how to wire a relay to the (negative trigger) factory switch to create a positive trigger.

You could also, just as easily (and more safely, running only a ground wire through the firewall!) hook pin 85 of each relay to a 2A fused power connection, then run the green wire back to your switch, and the other side of the switch to ground.
Wouldn't you be fine with one relay? The Hella's are only 55 watts so 4 of them only pulls 16-17 amps
Reply With Quote
  #18
Old 06-19-2009
FordX4Ranger's Avatar
Member
iTrader: (1)

Join Date: Aug 2007
Location: Golden, CO
Posts: 487
i have w ired up dozens of lights with relays but cant remember how lol. follow those diagrams they should work for ya.
Reply With Quote
  #19
Old 06-19-2009
turbo's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: Tallahassee, FL
Posts: 565
Quote:
Originally Posted by 04blackedge View Post
Wouldn't you be fine with one relay? The Hella's are only 55 watts so 4 of them only pulls 16-17 amps
Sure... 4x 55W (220W, total) lights would be fine on a single relay.

I drew that diagram for someone that was going to be running 4x 150W (600W, total) lights. You can safely run 350-400W on one (30A) relay, but definitely no more than that.
Reply With Quote
  #20
Old 06-19-2009
Ford04Ranger4.0's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
My FF's are 100watts and I plan on up-gradeing the two news ones to 100watts also, I'd rather be safe with two then just one. But thanks for the diagram, I'm going to get back to wireing them. I'll get pics when I'm done
Reply With Quote
  #21
Old 06-19-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by turbo View Post
Sure... 4x 55W (220W, total) lights would be fine on a single relay.

I drew that diagram for someone that was going to be running 4x 150W (600W, total) lights. You can safely run 350-400W on one (30A) relay, but definitely no more than that.
Ah gotcha, didn't know that.
Reply With Quote
  #22
Old 06-20-2009
Ford04Ranger4.0's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
So I can run one (40a) relay with 2x 100w and 2x 55w (310w total)?
Reply With Quote
  #23
Old 06-21-2009
turbo's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: Tallahassee, FL
Posts: 565
yep.

...although, I'd probably put the 2 100s on one relay, and the two 55s on another.. just because.
Reply With Quote
  #24
Old 06-21-2009
Ford04Ranger4.0's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Thats what I planned to do but wasnt sure if one would work also.
Reply With Quote
  #25
Old 06-24-2009
Ford04Ranger4.0's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Is it bad if the positive wire to the relay and the 40a relay itself is warm?

I only put one relay in, havent felt the need for two but might change it now...
