Searching for a part
#1
Searching for a part
Hi everyone! I recently picked up a 2000 Ranger super cab that had been in a fender bender and needed a little tlc on the front end. All the major, required parts are in and working, but there's a black rubber/plastic flap/sheet that attaches behind the turn signal and wraps around the side behind it and down to the bumper that I'm missing on one side, and try as I might I can't seem to find what that part is called. It's not necessary, but because the bumper is a little bit bent and the truck is white, it's very obvious that that part is missing. Does anyone have any idea what that flap is called? Thanks!
- Lawton
- Lawton
#2
RF Veteran
iTrader: (1)
Welcome to the forum
LMC truck is a good site to see body parts: Truck Parts & Truck Accessories for Chevy, GMC, Ford & Dodge Trucks
Select FORD
Then RANGER(.....NOT pickup, thats for full size trucks)
Then 1983 - 11
Try "Bumper"
And shop now
Rangers had lots of front end part changes so not sure what you are looking for?
Bottom of this page: Truck Parts and Truck Accessories
Has 1998-2000 bumper parts
LMC truck is a good site to see body parts: Truck Parts & Truck Accessories for Chevy, GMC, Ford & Dodge Trucks
Select FORD
Then RANGER(.....NOT pickup, thats for full size trucks)
Then 1983 - 11
Try "Bumper"
And shop now
Rangers had lots of front end part changes so not sure what you are looking for?
Bottom of this page: Truck Parts and Truck Accessories
Has 1998-2000 bumper parts
#3
Hi everyone! I recently picked up a 2000 Ranger super cab that had been in a fender bender and needed a little tlc on the front end. All the major, required parts are in and working, but there's a black rubber/plastic flap/sheet that attaches behind the turn signal and wraps around the side behind it and down to the bumper that I'm missing on one side, and try as I might I can't seem to find what that part is called. It's not necessary, but because the bumper is a little bit bent and the truck is white, it's very obvious that that part is missing. Does anyone have any idea what that flap is called? Thanks!
- Lawton
- Lawton
Go to LMC and look at their online Ranger catalog. Page 30 and 31. On page 30 they show the bumper components for your 2000, but don't list a bumper filler.
On page 31, for 2001 and up, they show/list a bumper filler, part # 3.
Don't know why they don't list it for the 2000 and earlier, but do have it for the 2001 and up.
Anyway, it gives you an idea of what your looking for. My 2009 has them, and they look like their held in place by the simple plastic "push pin" fasteners.
No reason why you couldn't just buy a simple rubber inner tube, cut out your own, and attach them with the push pins in the original holes.
Grumpaw
#4
Welcome to the forum
LMC truck is a good site to see body parts: Truck Parts & Truck Accessories for Chevy, GMC, Ford & Dodge Trucks
Select FORD
Then RANGER(.....NOT pickup, thats for full size trucks)
Then 1983 - 11
Try "Bumper"
And shop now
Rangers had lots of front end part changes so not sure what you are looking for?
Bottom of this page: Truck Parts and Truck Accessories
Has 1998-2000 bumper parts
LMC truck is a good site to see body parts: Truck Parts & Truck Accessories for Chevy, GMC, Ford & Dodge Trucks
Select FORD
Then RANGER(.....NOT pickup, thats for full size trucks)
Then 1983 - 11
Try "Bumper"
And shop now
Rangers had lots of front end part changes so not sure what you are looking for?
Bottom of this page: Truck Parts and Truck Accessories
Has 1998-2000 bumper parts
#5
From what I've seen and read, LMC is a good place to find the discontinued parts, body panels, "hard parts" like frame/suspension parts, ect. Their prices are OK, nothing special, but then again they do have stuff that might not be available anywhere else.
And, you will pay for shipping.
For stuff like filters, oil, fluids, and everyday maintenance supplies, your local parts store is just fine.
Grumpaw
And, you will pay for shipping.
For stuff like filters, oil, fluids, and everyday maintenance supplies, your local parts store is just fine.
Grumpaw
#6
The first thing I want to replace is the fuel pump assembly because the fuel gauge is stuck at Max Full. The three brands they offer are: Delphi, PFS, and Spectra. I haven't heard of any of those. Any recommendations?
I know from previous cars that sticking with OEM parts is better in the long run, not sure if any of those brands are supposed to be OEM equivalent.
I know from previous cars that sticking with OEM parts is better in the long run, not sure if any of those brands are supposed to be OEM equivalent.
#7
RF Veteran
iTrader: (1)
The first thing I want to replace is the fuel pump assembly because the fuel gauge is stuck at Max Full. The three brands they offer are: Delphi, PFS, and Spectra. I haven't heard of any of those. Any recommendations?
I know from previous cars that sticking with OEM parts is better in the long run, not sure if any of those brands are supposed to be OEM equivalent.
I know from previous cars that sticking with OEM parts is better in the long run, not sure if any of those brands are supposed to be OEM equivalent.
Welcome to the forum
No, not the same, Motorcraft is OEM, and costs as least 3 times as much, but will work for a long long time
3rd party will work, but you may have to change it out, under warranty, 1 or 2 times to get one that lasts longer than a year, so keep the receipt
Any of those brands are fine to use as far as I know, I hate changing fuel pumps so I bite the bullet and get motorcraft
Gas gauge at full reads like wire is unplugged or anti-slosh module in dash is failing/failed
The float/sender in the gas tank uses 10 ohms as Empty, and 160 ohms as Full
If sender wire is disconnected from gauge thats HIGH ohms so would read above Full on gauge
I would pull instrument cluster and use OHM Meter on the yellow sender wire to see if its connected, should see between 10-160 ohms, if you rock the truck, slosh the fuel/float in the tank, ohms should go up and down
If sender seems to work then problem is in the cluster
#8
Welcome to the forum
No, not the same, Motorcraft is OEM, and costs as least 3 times as much, but will work for a long long time
3rd party will work, but you may have to change it out, under warranty, 1 or 2 times to get one that lasts longer than a year, so keep the receipt
Any of those brands are fine to use as far as I know, I hate changing fuel pumps so I bite the bullet and get motorcraft
Gas gauge at full reads like wire is unplugged or anti-slosh module in dash is failing/failed
The float/sender in the gas tank uses 10 ohms as Empty, and 160 ohms as Full
If sender wire is disconnected from gauge thats HIGH ohms so would read above Full on gauge
I would pull instrument cluster and use OHM Meter on the yellow sender wire to see if its connected, should see between 10-160 ohms, if you rock the truck, slosh the fuel/float in the tank, ohms should go up and down
If sender seems to work then problem is in the cluster
No, not the same, Motorcraft is OEM, and costs as least 3 times as much, but will work for a long long time
3rd party will work, but you may have to change it out, under warranty, 1 or 2 times to get one that lasts longer than a year, so keep the receipt
Any of those brands are fine to use as far as I know, I hate changing fuel pumps so I bite the bullet and get motorcraft
Gas gauge at full reads like wire is unplugged or anti-slosh module in dash is failing/failed
The float/sender in the gas tank uses 10 ohms as Empty, and 160 ohms as Full
If sender wire is disconnected from gauge thats HIGH ohms so would read above Full on gauge
I would pull instrument cluster and use OHM Meter on the yellow sender wire to see if its connected, should see between 10-160 ohms, if you rock the truck, slosh the fuel/float in the tank, ohms should go up and down
If sender seems to work then problem is in the cluster
#9
Welcome to the forum
No, not the same, Motorcraft is OEM, and costs as least 3 times as much, but will work for a long long time
3rd party will work, but you may have to change it out, under warranty, 1 or 2 times to get one that lasts longer than a year, so keep the receipt
Any of those brands are fine to use as far as I know, I hate changing fuel pumps so I bite the bullet and get motorcraft
Gas gauge at full reads like wire is unplugged or anti-slosh module in dash is failing/failed
The float/sender in the gas tank uses 10 ohms as Empty, and 160 ohms as Full
If sender wire is disconnected from gauge thats HIGH ohms so would read above Full on gauge
I would pull instrument cluster and use OHM Meter on the yellow sender wire to see if its connected, should see between 10-160 ohms, if you rock the truck, slosh the fuel/float in the tank, ohms should go up and down
If sender seems to work then problem is in the cluster
No, not the same, Motorcraft is OEM, and costs as least 3 times as much, but will work for a long long time
3rd party will work, but you may have to change it out, under warranty, 1 or 2 times to get one that lasts longer than a year, so keep the receipt
Any of those brands are fine to use as far as I know, I hate changing fuel pumps so I bite the bullet and get motorcraft
Gas gauge at full reads like wire is unplugged or anti-slosh module in dash is failing/failed
The float/sender in the gas tank uses 10 ohms as Empty, and 160 ohms as Full
If sender wire is disconnected from gauge thats HIGH ohms so would read above Full on gauge
I would pull instrument cluster and use OHM Meter on the yellow sender wire to see if its connected, should see between 10-160 ohms, if you rock the truck, slosh the fuel/float in the tank, ohms should go up and down
If sender seems to work then problem is in the cluster
#10
RF Veteran
iTrader: (1)
#11
Does it make sense that if I disconnect the connector under the hood near the firewall (it's between the sending unit and the slosh module) that the slosh module should read no resistance, possibly an open? Then I would think I would see it move to the extreme empty state instead of continuing to sit at extreme full. Does that make sense? I found the yellow wire with white stripe and put 22 ohms of resistance onto that terminal on the female side of the connector, thats the side that leads up to the slosh module. I grounded the other end of the resistance and turned the key to position II, the fuel gauge didn't budge off of extreme full. I should be able to check the resistance from the sending unit on the male side of this connector as well, just didn't have a DVOM with me when I did this.
#12
RF Veteran
iTrader: (1)
1989 and up Ford gauges and senders use 16 ohms empty and 160 ohms full
A short to ground is 0 ohms so gauge would read below empty, also if float had a hole and sunk to bottom of tank, or if module shorted to ground in dash
No connection is infinite ohms so gauge should read above full with connector unplugged
Yes use OHM Meter on yellow wire and to a Ground if you see between 16 and 160 ohms then sender is most likely OK, rock the truck and you should see OHMs change as sloshing fuel moves float up and down
BUT..............the yellow/white wire in the engine bay runs to the PCM(computer) so by unplugging it there you may not be disconnecting it from the gauge
Diagram below
Not sure where Splice 253 is, but probably behind the cluster
Last time I traced the yellow/white wire it came into the cab with fuel pump power wire near inertia switch(passenger side), I think it was 1993 Ranger
A short to ground is 0 ohms so gauge would read below empty, also if float had a hole and sunk to bottom of tank, or if module shorted to ground in dash
No connection is infinite ohms so gauge should read above full with connector unplugged
Yes use OHM Meter on yellow wire and to a Ground if you see between 16 and 160 ohms then sender is most likely OK, rock the truck and you should see OHMs change as sloshing fuel moves float up and down
BUT..............the yellow/white wire in the engine bay runs to the PCM(computer) so by unplugging it there you may not be disconnecting it from the gauge
Diagram below
Not sure where Splice 253 is, but probably behind the cluster
Last time I traced the yellow/white wire it came into the cab with fuel pump power wire near inertia switch(passenger side), I think it was 1993 Ranger
#13
RF Veteran
iTrader: (1)
I just remember something about the 2000/2001 Rangers
The 2000 and 2001 had a connector under drivers seat that went thru the floor pan and had issues with corrosion
C340 was the connector used in 2001, C309 on 2000
Diagrams here: https://www.ranger-forums.com/genera...-issue-146864/
Pin 15 is the yellow/white wire on C309, 2000 Ranger
The 2000 and 2001 had a connector under drivers seat that went thru the floor pan and had issues with corrosion
C340 was the connector used in 2001, C309 on 2000
Diagrams here: https://www.ranger-forums.com/genera...-issue-146864/
Pin 15 is the yellow/white wire on C309, 2000 Ranger
#14
I just remember something about the 2000/2001 Rangers
The 2000 and 2001 had a connector under drivers seat that went thru the floor pan and had issues with corrosion
C340 was the connector used in 2001, C309 on 2000
Diagrams here: https://www.ranger-forums.com/genera...-issue-146864/
The 2000 and 2001 had a connector under drivers seat that went thru the floor pan and had issues with corrosion
C340 was the connector used in 2001, C309 on 2000
Diagrams here: https://www.ranger-forums.com/genera...-issue-146864/
#15
RF Veteran
iTrader: (1)
#16
This is a photo of the service manual for my 97 2.3l. It shows connector C1007M is coming straight from the sender. I found the connector under the truck connected to the frame rail. I disconnected the connector and checked resistance between the terminal connected to the yellow/white wire and the truck frame. It showed 50k ohms.... that’s a lot of resistance. Do you think that’s pointing to a bad sender? If so, any recommendations on where to get a new one? Should I replace the whole fuel pump? Thanks!
#17
RF Veteran
iTrader: (1)
Yes, thats a disconnected or bad sender
Not sure if sender is available as a separate part, might be able to pickup a pump assembly up at a wrecking yard, take ohm meter with you to test before buying
1990-2011 Rangers/Mazda B-series should all be the same

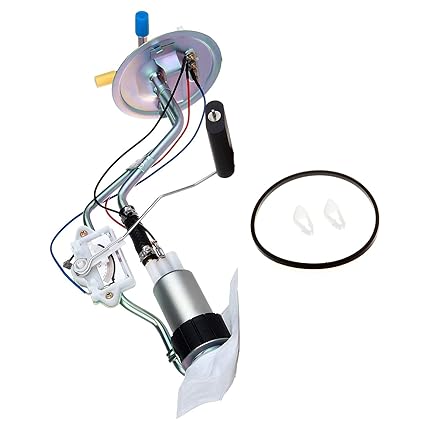

Picture of assembly here: https://images-na.ssl-images-amazon....YL._SX425_.jpg
3rd party, not sure what motorcraft looks like but should be similar
Not sure if sender is available as a separate part, might be able to pickup a pump assembly up at a wrecking yard, take ohm meter with you to test before buying
1990-2011 Rangers/Mazda B-series should all be the same
Picture of assembly here: https://images-na.ssl-images-amazon....YL._SX425_.jpg
3rd party, not sure what motorcraft looks like but should be similar
#18
Yes, thats a disconnected or bad sender
Not sure if sender is available as a separate part, might be able to pickup a pump assembly up at a wrecking yard, take ohm meter with you to test before buying
1990-2011 Rangers/Mazda B-series should all be the same
Picture of assembly here: https://images-na.ssl-images-amazon....YL._SX425_.jpg
3rd party, not sure what motorcraft looks like but should be similar
Not sure if sender is available as a separate part, might be able to pickup a pump assembly up at a wrecking yard, take ohm meter with you to test before buying
1990-2011 Rangers/Mazda B-series should all be the same
Picture of assembly here: https://images-na.ssl-images-amazon....YL._SX425_.jpg
3rd party, not sure what motorcraft looks like but should be similar
