Switching up my exhausts, going back to a single

Hey guys, truck currently has dual pipes out the back. One needs some repair work, but i think im ready for something different. Thinking about bringing one pipe out the side, kind of similar to factory. The thing is, i dont really want it too looking like the factory one. I want it to have a tip on it still or something. Anyone have and examples on ideas?
Reply With Quote
  #2
Old 11-22-2013
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
It's real easy to make it not look stock.

My first exhaust was single 2.5" from the cat back using a STUPID quiet Dynomax muffler. Later replaced with a then brand spankin' new Flowmaster Super 40. It was big back in the day for Rangers to have 3.5" tips, so I used a 2.5 in/18" long/3.5" angle cut tip tucked up nice and close to the bedside.

Here's some pics...

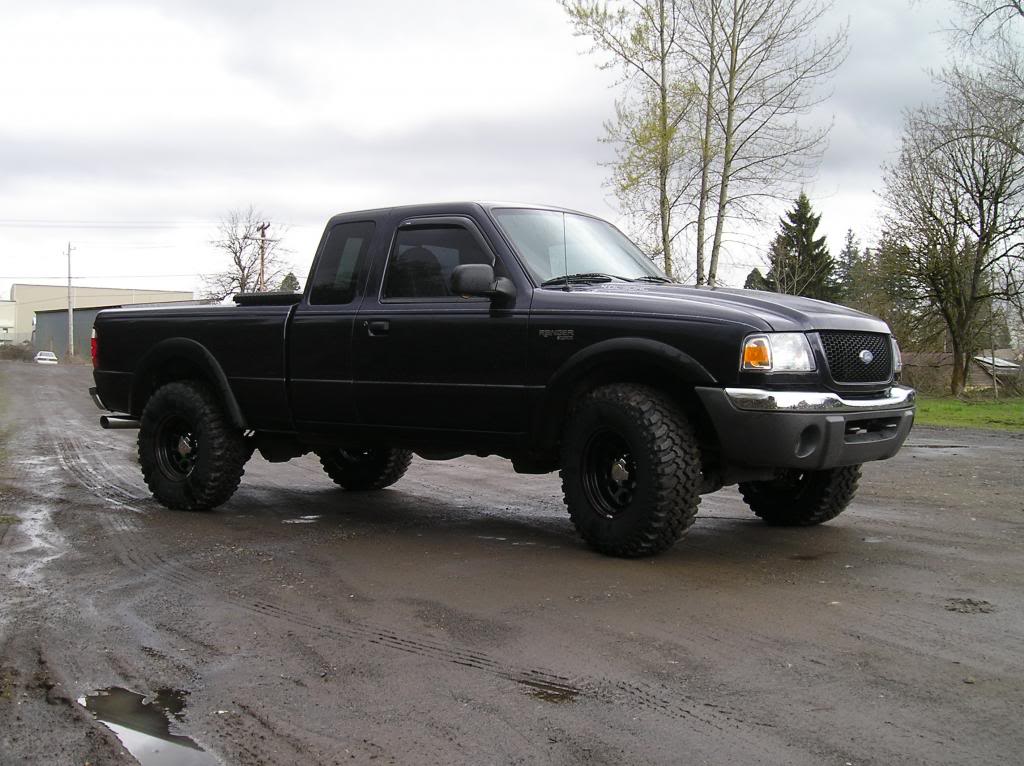

Name:  P3200100.jpg
Views: 11
Size:  113.5 KB

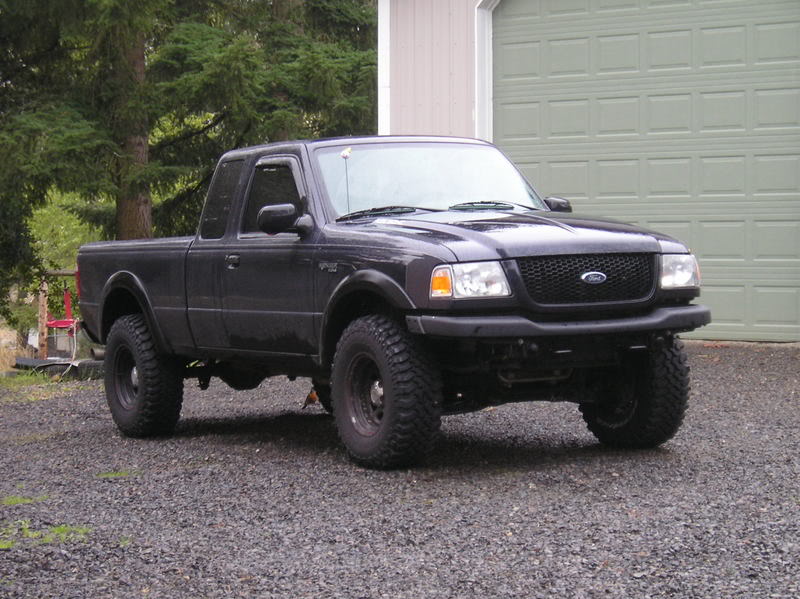

Name:  P4120023.jpg
Views: 11
Size:  94.6 KB

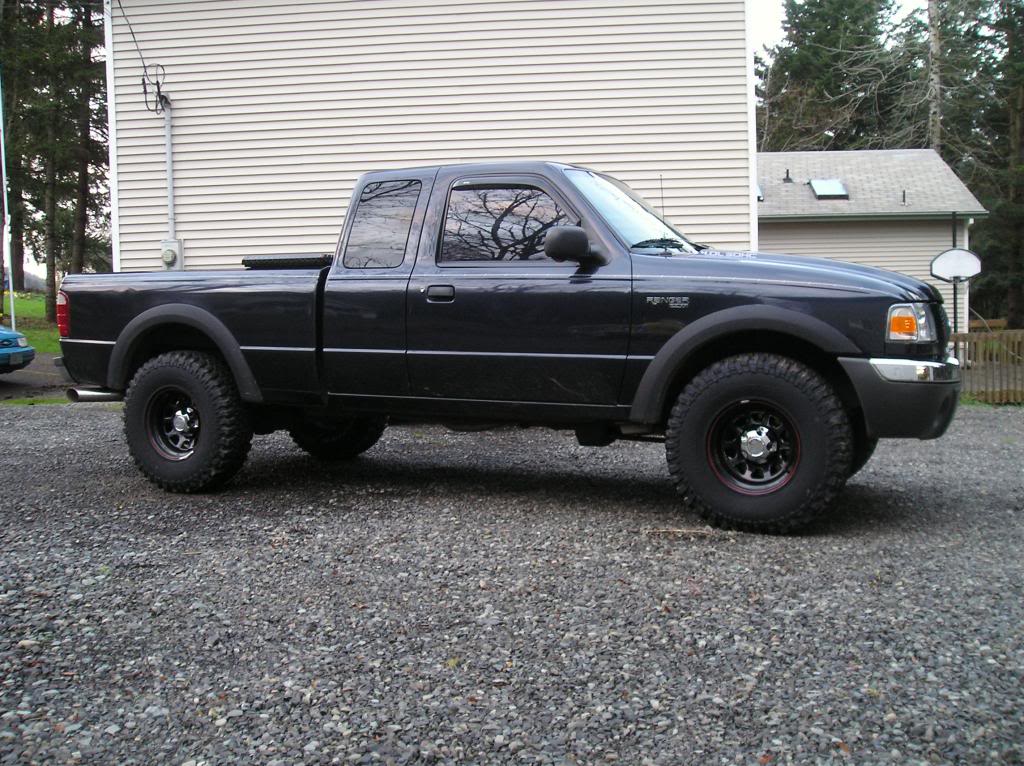

Name:  P3200108.jpg
Views: 12
Size:  166.6 KB

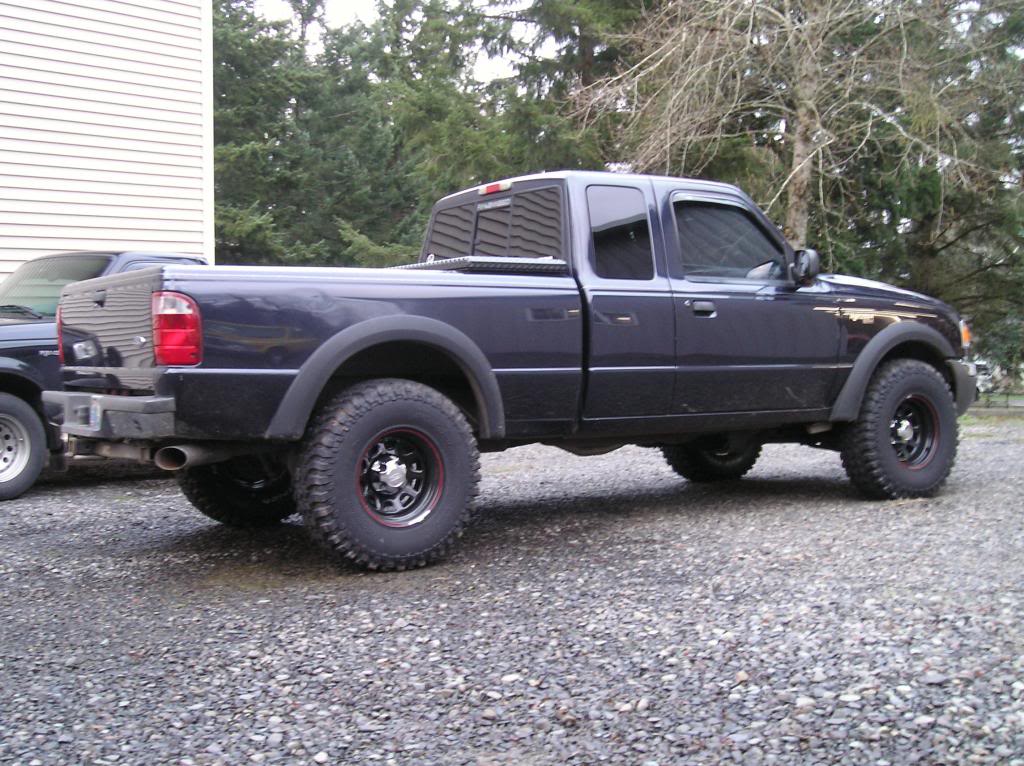

Name:  P3200110.jpg
Views: 13
Size:  153.9 KB
Reply With Quote
  #3
Old 11-22-2013
evilclown312's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2008
Location: Logan ohio
Posts: 2,772
Thats not bad, i was kind of thinking about bringing it straight out the side, one though was to find a 45 degree chrome tip, which i seen online, and then have the pip at a 45, so once its all done it would 90 out the side, basically stock location, just would have a tip and would still be loud haha
Reply With Quote
  #4
Old 11-22-2013
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by evilclown312 View Post
Thats not bad, i was kind of thinking about bringing it straight out the side, one though was to find a 45 degree chrome tip, which i seen online, and then have the pip at a 45, so once its all done it would 90 out the side, basically stock location, just would have a tip and would still be loud haha
To me, exiting 90* like the stock tailpipe is too much like the stock tailpipe....regardless of type of straight cut tip or tip size. If I were to do it again in a single, I would do a more mild slash cut (not 45*) with a more mild pipe exit angle. Sort of a mixture of what you typed above and what my old exhaust was.

Magnaflow has a number of really good looking tips in tons of sizes. Have your tip picked out or on-hand so the shop can build with the tip present. End results will be cleaner.
Reply With Quote
  #5
Old 11-22-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Fx4wannabe01 View Post
a number of really good looking tips in tons of sizes. Have your tip picked out or on-hand so the shop can build with the tip present. End results will be cleaner.
Reply With Quote
  #6
Old 11-22-2013
evilclown312's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2008
Location: Logan ohio
Posts: 2,772
I might just stick with the tips that are on the truck now and do a mild angle as you described. Id like to see some pics of something like that lol.
Reply With Quote
  #7
Old 11-23-2013
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Did a little bit of searching and it appears that the Magnaflow single system is very similar to as I'm describing. But get that tip tighter to the body. I always suggest a shop custom make a system...soooooo much cheaper. But stainless and/or pre-made stainless is worth it if you're in the rust belt.

Source: MagnaFlow Exhaust Systems for Ford Ranger 2001 - MF15679

Reply With Quote
  #8
Old 11-23-2013
evilclown312's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2008
Location: Logan ohio
Posts: 2,772
Yeah i think thats what i am going to do, and yeah all my exhaust work is custom built. I got a top notch exhaust guy that does all my work. Ill take in one of those pictures and show him what i want. Thanks i appreciate it shane.
Reply With Quote
  #9
Old 01-02-2014
grunt98444's Avatar
Level III Supporter

Join Date: Feb 2010
Location: Bremerton, WA
Posts: 126
I used a flex pipe, Hushpower resonator, Flowmaster 60 and a Magnaflow rear pipe all in SS, maybe overkill but it will never rust out and it killed the drone at highway speeds
