wire help

Im having a problem with my tranny, i just replaced all the clutch assembly on my 2000 3.0 ranger manual tranny. it was driving fine and then stopped within an hour. i had alot of air in the line which i bled. The only other problem i noticed was a cut sensor that i have no clue what its for. its towards the middle to tail shaft of the tranny. its a 2 prong plug that its red and attached in the tranny. could this be the problem? What sensor is this? Its in the same wire lume as the O2 sensors i believe but plugs into the tranny.
Reply With Quote
  #2
Old 09-06-2009
bjohnson238's Avatar
Member

Join Date: Nov 2008
Location: Muncie, IN
Posts: 732

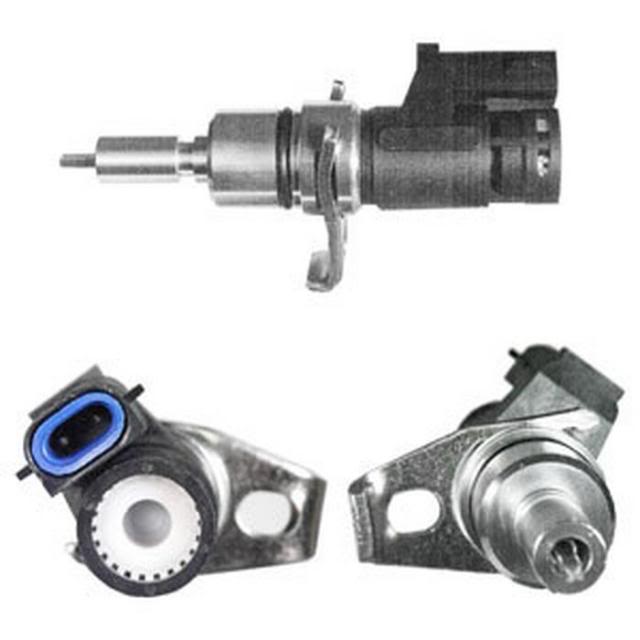

Is it the vehicle speed sensor?

Name:  8.jpg
Views: 4
Size:  30.9 KB
Reply With Quote
  #3
Old 09-07-2009
BLACK00's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: SULPHUR, LOUISIANA
Posts: 113
nah not a speed sensor i dont think.


The red sensor at the top left corner. its a 2 prong plug
Reply With Quote
  #4
Old 09-07-2009
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
Well whatever it is, chances are it is somewhat necessary. I'd fix it and see what happens.
Reply With Quote
  #5
Old 09-07-2009
BLACK00's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: SULPHUR, LOUISIANA
Posts: 113
haha no crap, i found out its the backup lamp switch. But would that keep the tranny from going into gear while the truck is running? the truck shifts fine with the truck off
Reply With Quote
  #6
Old 09-08-2009
BLACK00's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: SULPHUR, LOUISIANA
Posts: 113
anyone with help please
Reply With Quote
  #7
Old 09-09-2009
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Remove and bench bleed the clutch master cylinder.Very difficult if not impossible to get all of the air out of it with the angle it's mounted in the truck.
