Wiring for 03 dome light

Does any know which colors are for what on an 03 for the dome light? The reapir manual I have has the most crap diagrams Ive ever seen, and they dont even mention the dome light at all. And on teh subject does any one know how to get the cover off on an 03 ext cab? The way it says in the manual doesnt work at all. I mainly just need to know which one the hot is to hardwire more lights into.
Reply With Quote
  #2
Old 06-07-2012
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
The power feed for the dome light should be a Black wire with Light Blue Stripe.
Reply With Quote
  #3
Old 06-08-2012
lhex234's Avatar
Member
Thread Starter

Join Date: Jan 2012
Location: Rio Rancho, NM
Posts: 17
ok cool. Thanks. Im wanting to install some lights under the dash the illluminate the floor pans on the same "interval" as the dome. Im assuming thats the wire to use?
Reply With Quote
  #4
Old 06-08-2012
lhex234's Avatar
Member
Thread Starter

Join Date: Jan 2012
Location: Rio Rancho, NM
Posts: 17
Got it all hooked up. Looks pretty good. thanks again for the help.
Reply With Quote
  #5
Old 06-08-2012
Clinton's Avatar
Member
iTrader: (19)

Join Date: Dec 2010
Location: PA.
Posts: 1,417
Quote:
Originally Posted by lhex234 View Post
Got it all hooked up. Looks pretty good. thanks again for the help.
Any pics of the installs? I'd like to see what ya did!
Reply With Quote
  #6
Old 06-09-2012
lhex234's Avatar
Member
Thread Starter

Join Date: Jan 2012
Location: Rio Rancho, NM
Posts: 17
Re:

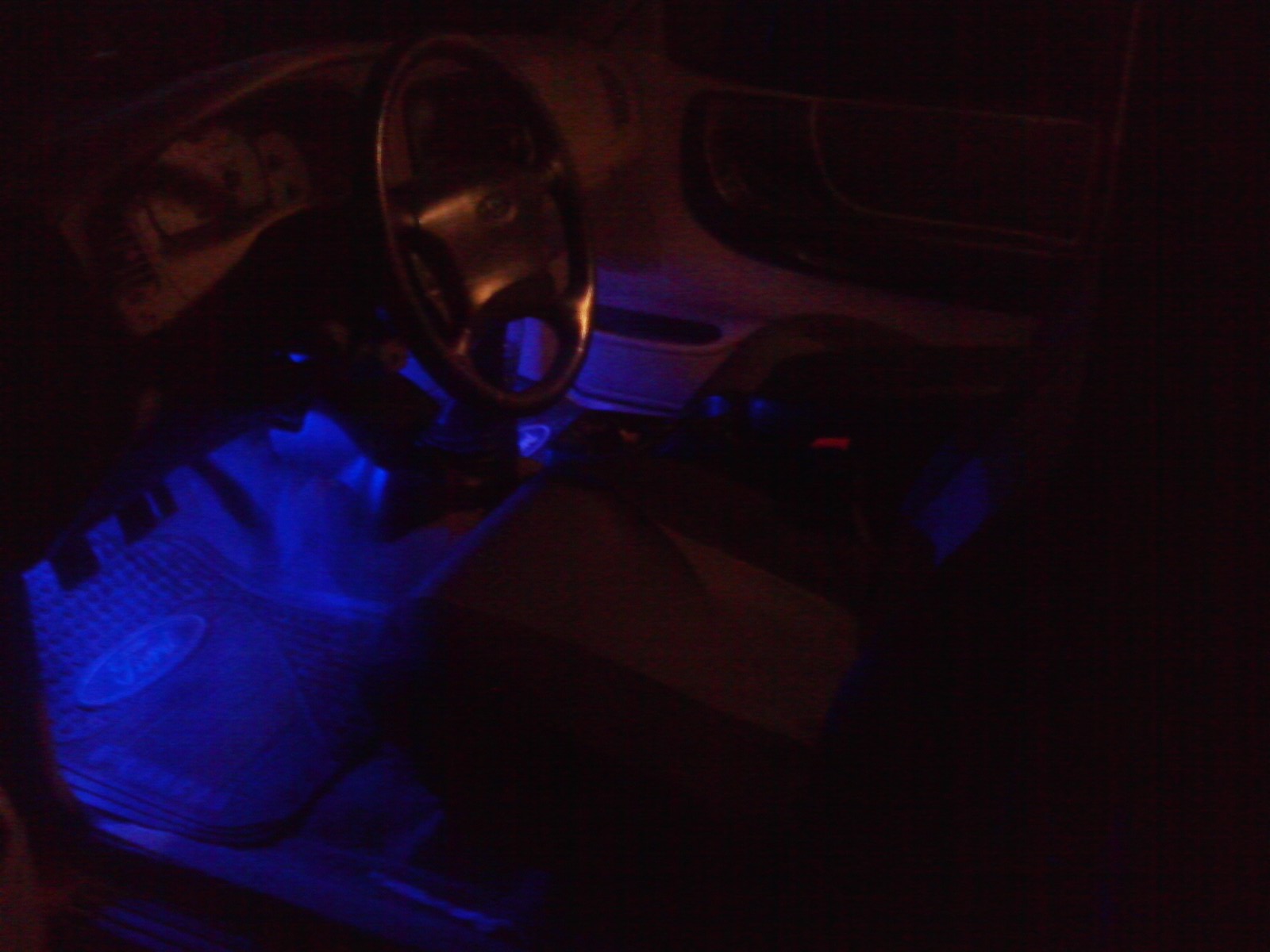

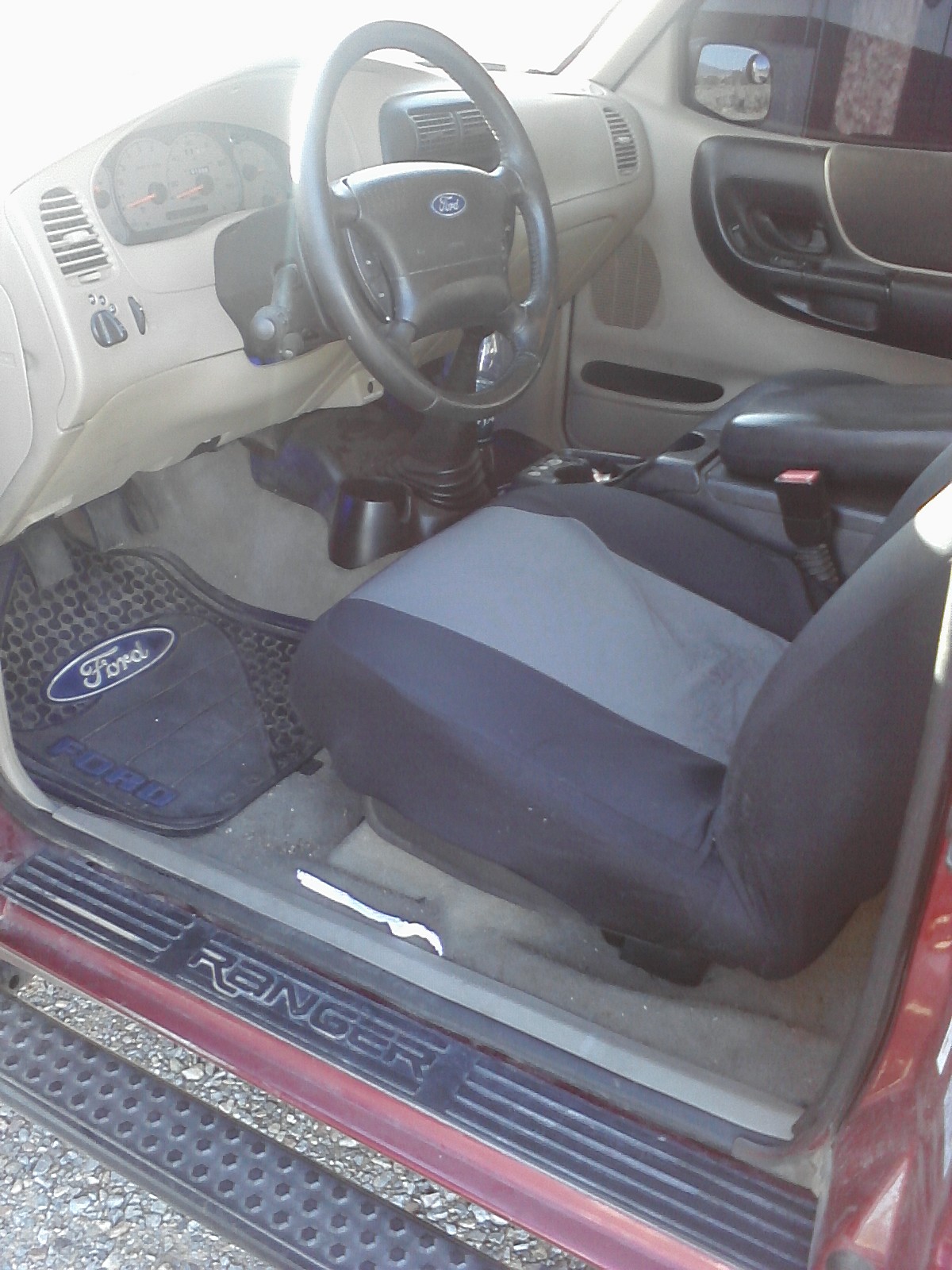

Heres a couple pics. Cant really tell that well during the day but looks pretty cool at night.
