Explorer OHC with sunroof button

Ok I made the mistake of getting the explorer ohc with the sunroof button. So I know from searching that it doesn't have the same mounting bracket and thus makes it a pita to mount. But also from various pm's and searching I found out that Gopher i think used one. But anyone else who has this certain type of ohc please show/tell me how to mount it because I don't want to waste my money on this thing. I guess there's always ebay.....

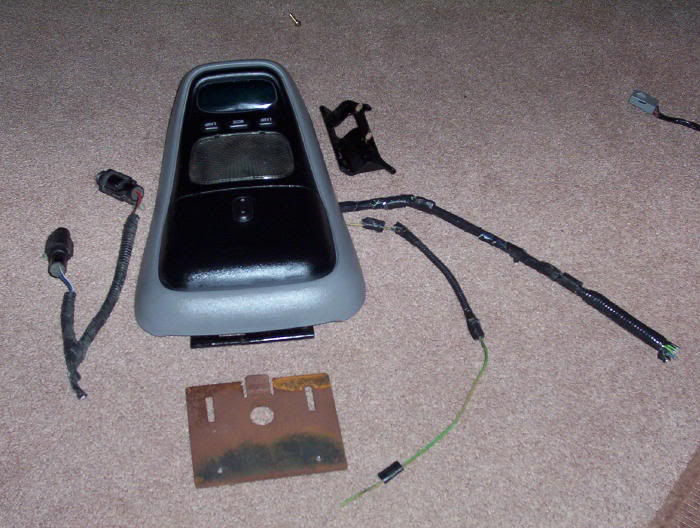

Name:  100_4457-.jpg
Views: 0
Size:  66.6 KB
Oh I can always go back to get any missing parts, but the junkyard didn't have any explorers without a sunroof. I appreciate greatly all the help you can give!!!
Reply With Quote
  #2
Old 01-10-2006
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
You got a bonus!

The sensor on the left (edit, said "right" first, lol) with the blue wires is for the OHC.

The other one with the reddish wires is the exterior sensor for the EATC. You have now scored one of the parts needed for that mod as well.
Reply With Quote
  #3
Old 01-11-2006
Member

Join Date: Aug 2004
Posts: 688
Maybe you could use the button to operate a pair of bumper mounted driving lights
Reply With Quote
  #4
Old 01-11-2006
SilverBulletXLT's Avatar
Member

Join Date: Jun 2004
Posts: 431
you could cut off the back and make it a mini ohc like mine..


Reply With Quote
  #5
Old 01-11-2006
0RangerEdge2's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
I would like to mount it without having to cut the ohc. I know someone out there did it without cutting it. But yours still looks good, just not what I want
Reply With Quote
  #6
Old 01-11-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
talk to gopher he is quite a nice guy
Reply With Quote
  #7
Old 01-12-2006
gopher18's Avatar
Member

Join Date: Jun 2005
Location: Kansas City, MO
Posts: 134
Thanks Zach (good looking truck by the way)!!!

0RangerEdge2 - I just sent you a PM. Also, check out the install pics below:


Custom color matched to Silver Frost.


Front Bracket - A lot shorter than the garage door OHC version.


Notice the missing headliner foam from the small hole. This is where the end on the OHC that would normally install to the sunroof of the Explorer fits in and allows the headliner to be used as support.


Headliner installed with appropriate wires ran.


Installed with sunroof button to work as an aux stereo turn on/off button.
