Expo Power seats

I picked up some power expo seats today and Im confused on the wiring

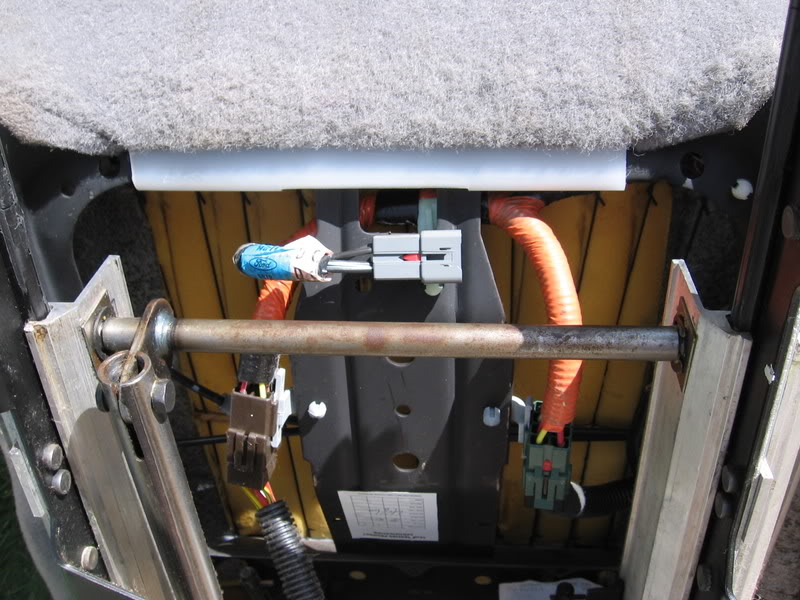

Heres the connector on the botom of the seat
Name:  IMG_0827.jpg
Views: 1
Size:  99.7 KB

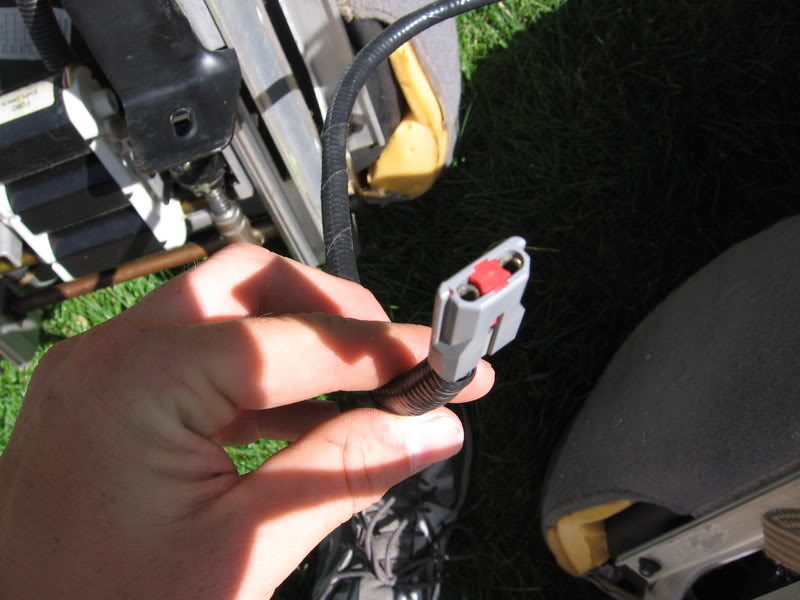

And heres the pig tail from the floor
Name:  IMG_0828.jpg
Views: 1
Size:  61.0 KB

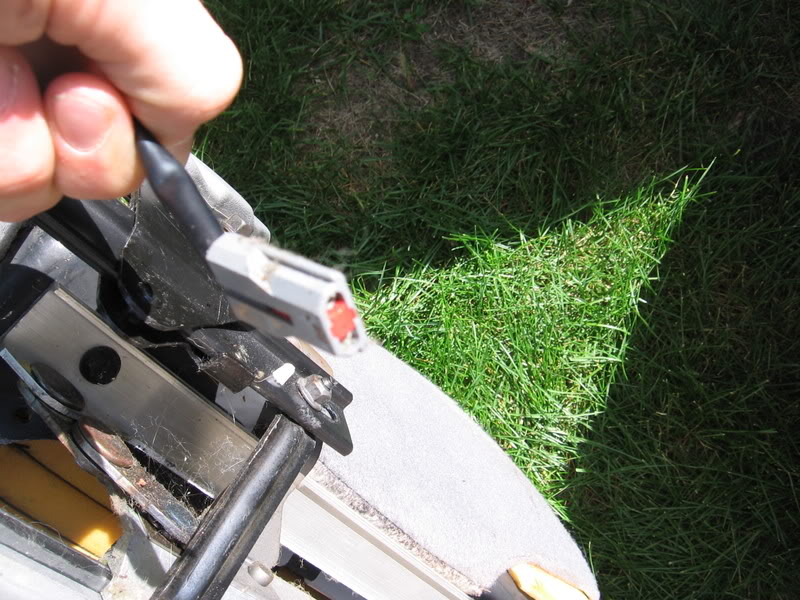

And heres the seat belt connector
Name:  IMG_0829.jpg
Views: 1
Size:  120.7 KB

How do I wire these things up? Is The seat belt wire is the same as the power wire?I know im going to have to reuse the female end of the buckels from my current seats. Do I just run a positive and a ground through that plug or is there more too it?

Last edited by malydeen; 06-29-2008 at 04:42 PM.
Reply With Quote
  #2
Old 06-29-2008
bucky919's Avatar
Member
iTrader: (1)

Join Date: Nov 2006
Location: Minot, ND
Posts: 1,943
Reply With Quote
  #3
Old 06-29-2008
malydeen's Avatar
Member
Thread Starter
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
that didnt explain the 2 connectors that are the same.
Reply With Quote
  #4
Old 07-16-2008
Member
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
look for 2 wires that are Black and Black and White. The Black is the ground and the Black and White is the Power. Cut off the connector and extended the wires ground the black to a screw underneath the seat and hook up the black and white to a power source in one open location in the fuse box. Don't forget to add an inline fuse so you don't cause a fire or short it out badly. Hope you already figured it out but this is how i did mine.
Reply With Quote
  #5
Old 07-17-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Trust me... there's like 8-10 wires under the seat right? Follow them..

I bet money they don't go anywhere

Just the black and black/white for power and ground. It's dumb I know.. I did the same thing with mine when I got them
Reply With Quote
  #6
Old 07-17-2008
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
The two connectors that are the same are the explorer seat belt connection, which you can't use in your ranger. The big gray plug attached to the black center support should be the main power, except it looks like you don't have the vehicle side pigtail. I would get that so that you could remove the seats later if needed instead of hard wiring them. I just bought some seats out of a 2000 heated and power that I haven't installed yet so if you have anymore question just ask and I can look at them. I have seemed to have all the wiring figured out.

Thanks,
Jason
